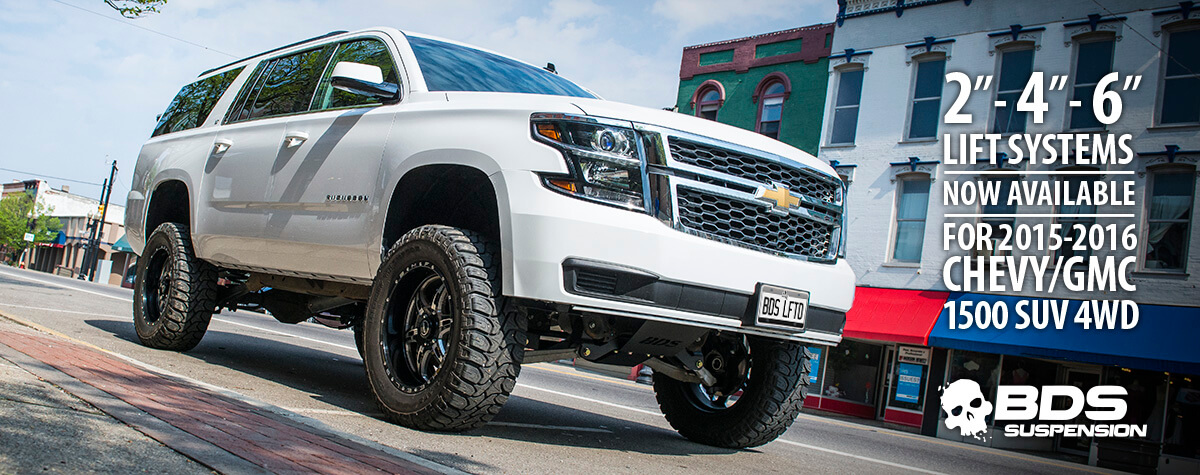

BDS Suspension is now shipping lift and leveling kits for the late model 2015-2016 Chevy Tahoe/Suburban and GMC Yukon/Yukon XL 4WD SUVs. Available in 2", 4" and 6" lift heights, these new suspension lifts improve the vehicles offroad capability with room for up to 35" tires while maintaining on-road drivability. These new IFS systems are based around the tried and true BDS high clearance design for strength and offroad protection. These kits are backed by Factory Protection Plus for peace of mind wherever your adventures may take you. Factory Protection Plus includes BDS"s exclusive No Fine Print Warranty along with a 5-year, 100,000-mile drivetrain warranty. Take your late model Chevy/GMC SUV to the next level with BDS Suspension.

Product Description

2" Leveling Kits
4" IFS Lift Kits
6" IFS Lift Kits

Vehicle Fitment

2015-2016 Chevy Tahoe 1500 4WD
2015-2016 Chevy Suburban 1500 4WD
2015-2016 GMC Yukon 1500 4WD*
2015-2016 GMC Yukon XL 1500 4WD*
*non-MagneRide equipped vehicles only

Rec'd Max Wheel/Tire Specs (6" Kits)

34x12.50 tires on 17x9/18x9/20x9 wheels (5" BSing)
35x12.50 tires on 17x9/18x9/20x9 wheels (5.75" BSing)

4'' & 6'' Kit Features

  • High clearance design
  • Ductile iron steering knuckles
  • Full width belly skidplate
  • Corrects steering/CV geometry
  • Fits up to 35" tires with 6'' kit

Kit ID Number(s)

#167H (2" Leveling Kit)
#731H (6"Lift Kit - OE Cast Steel Arms)
#732H (6" Lift Kit - OE Alum/Stamped Steel Arms)
#733H (4" Lift Kit - OE Cast Steel Arms)
#734H (4" Lift Kit - OE Alum/Stamped Steel Arms)

MSRP

$142.38 (167H)
$2554.79 (731H/732H)
$2134.79 (733H/734H)

Available Accessories

FOX 2.5 Remote Reservoir Coilovers
FOX 2.0 IFP Performance Rear Shocks

*Check the BDS website to verify details before ordering to ensure information is up-to-date with current offerings.

Factory Protection Plus
  • 5-year, 100,000 mile drivetrain warranty
  • BDS’s exclusive No Fine Print Warranty

MEDIA Gallery
2015-2016 Chevy/GMC SUV

Click Image to View

BDS 2" Leveling Kit for GM1500 SUV
BDS 4" IFS Lift Kit for GM1500 SUV
BDS 6" IFS Lift Kit for GM1500 SUV
2016 Chevy Suburban w/ BDS 6" Lift Kit and 35s
2016 Chevy Suburban w/ BDS 6" Lift Kit and 35s
2016 Chevy Suburban w/ BDS 6" Lift Kit and 35s
2016 Chevy Suburban w/ BDS 6" Lift Kit and 35s
2016 Chevy Suburban w/ BDS 6" Lift Kit and 35s

BDS Suspension is now offering 2", 4", and 6" lift options for the late model 2015-2016 Chevy Tahoe/Suburban 1500 4WD and GMC Yukon/Yukon XL 1500 4WD (non MagnaRide equipped). These systems improve your SUVs offroad capability and curb appeal while retaining on road drivability and allowing for larger tire to be installed. Kits include:

2" Leveling Kit: BDS offers a 2" leveling kit designed to eliminate the factory nose-low rake while improving the vehicles all-around performance and allowing room for larger tires. The kit integrates a new top mounted strut spacer in combination with a pre-load spacer to raise the front end while improving the handling and stability. This 2-piece leveling kit design allows the suspension to fully cycle through wheel travel without maxing out the upper ball joints at full drop as is the case with taller 1-piece strut spacer kits on the market. Optional rear BDS-NX2 series gas or FOX 2.0 gas shocks are also available. This kit allows for up to 33x11.50 tires to be installed.

4" IFS Lift Kits: Stepping up to the 4" IFS lift kits, BDS offers a complete IFS system to correct suspension/steering geometry for improved performance, drivability and offroad capability. Over the years BDS has built a solid reputation for around top quality, high clearance suspension systems for the newer 1/2-ton GM trucks. These new kits shares the front suspension design with the 1500 trucks and utilize a pair of 1/4" steel high clearance crossmembers and 3-piece skid plate system to reposition the lower arms and add protection of vital drivetrain components. These combined with the CNC machined ductile iron replacement steering knuckles creates a solid subframe to correct suspension and steering geometry for compatibility with the factory installed ESC system. BDS offers these kits compatible with trucks equipped with factory cast steel, factory stamped steel, and factory aluminum control arms so be sure to check before ordering. Up front the kits use a multipoint differential relocation kit and CV spacers to securely reposition the front differential to correct CV axle angle and allow for the use of the stock front driveshaft. In place of the factory struts, high-pressure gas struts are supplied for improved ride quality and off-road dampening. Also included for the front are heavy duty tie rod ends, longer sway bar links, and brake line brackets.

In the rear this 4" lift system a pair of a 2" or 3" coil spacers are available to lift and level the stance. Rear suspension geometry is corrected using a pair of heavy duty adjustable upper control arms along with a track bar relocation bracket and support brace, and longer sway bar links. Also supplied for the rear are bump stop extensions and your choice of BDS- NX2 series gas shocks or FOX 2.0 IFP performance gas shocks. This kit allows for up to 33x12.50 tires to be installed.

6" IFS Lift Kits: The 4" and 6" IFS lift kits share the high clearance design for improved performance over any terrain, improved offroad protection, and enhanced on-road comfort. At the core of these 6" lift systems are a pair of 1/4" steel high clearance crossmembers and full width modular differential skid plate to reposition the lower arms and add protection of vital drivetrain components. These combined with the CNC machined ductile iron replacement steering knuckles creates a solid subframe and correct suspension and steering geometry to be compatible with the factory installed ESC system. Kits are offered for all three factory control arm configurations, cast steel, stamped steel, and aluminum; be sure to check your vehicle before ordering. Differential relocation brackets and CV spacers are used to correct the front axle positioning for stock-like CV axle angles and to retain use of the factory front driveshaft. In place of the stock struts, BDS supplies a pair of high pressure gas struts for improved performance and ride quality. Rounding out the front kit are a pair of replacement tie rod ends, longer sway bar links, brake line brackets, and a front laser cut BDS skid plate.

In the rear these of this 6" lift kit a pair of a 5" ProRide coil springs are supplied to lift and level the stance. These offer improved offroad performance and more travel from the rear suspension. To correct the rear suspension geometry with the taller coils installed a pair of heavy duty adjustable upper control arms are supplied along with a track bar relocation bracket and support brace and longer sway bar links. Also included are a pair of bump stop extensions and your choice of BDS- NX2 series gas shocks or FOX 2.0 IFP performance gas shocks. This kit allows for up to 35x12.50 tires to be installed. Take your late model GM SUV to the next level with BDS Suspension.

© BDS Suspension, 491 W. Garfield Ave. Coldwater, MI 49036
(517) 279-2135 | bds-suspension.com | sales-bds@ridefox.com

14 Comments on “BDS New Product Announcement #268: 2015-2016 Chevy/GMC SUV Lift Kits
  • haytham says:

    Hello

    i own a 2016 chevy tahoe z71. i would like to lift it by a max of 2 inches without having to modify or cut any of the factory components. i saw the 2 inch lift kit you offer and realized its based on a coil spacer configuration. is that the case? do the spacers /2 inch lift creat any problems with the suspension when it is fully stretched?

    thanks

    Reply
    • Carter @ BDS Suspension says:

      Hi there,
      We do offer several lift/leveling options for the late model GM1500 SUVs. Our 2″ leveling kits are designed to eliminate the factory nose-low rake while improving the vehicles all-around performance and allowing room for larger tires. The kit integrates a new top mounted strut spacer in combination with a pre-load spacer to raise the front end while improving the handling and stability. This 2-piece leveling kit design allows the suspension to fully cycle through wheel travel without maxing out the upper ball joints at full drop as is the case with taller 1-piece strut spacer kits on the market. No cutting is required to install the kit, however your factory struts will need to be disassembled to install the preload spacers.

      Reply
  • Jonathan P says:

    Would this 6” kit work for a 2015 Suburban LTZ with Magneride?

    Reply
    • Carter @ BDS Suspension says:

      Hey Johnathan, at this point we have not released kits got the Magneride-equipped Chevy/GMC 1500 SUVs.

      Reply
  • Jaime V. says:

    Trying to level my 2016 Yukon w/o the magnetic suspension. I will be putting on 305/55r20 if I can. What leveling kit would I use to have these fit?

    Reply
    • Carter @ BDS Suspension says:

      Hi Jaime, thanks for your interest in BDS Suspension, The 2″ leveling kit to fit your ’16 GMC Yukon is #167H. We spec the 2″ leveling kits to fit 285/70r17 (33×11.50) tires on stock wheels for sufficient clearance on/off-road, a 305/55r20 (33.5×12.50) may work on there with some additional trimming. Ultimately it will depend on the wheel width/backspacing as to how much trimming will be necessary, either way the 305/55r20 is outside of our recommended specs for the 2″ lift. For more info on the leveling kit head to http://bds-suspension.com/product?ma=5&mo=9&ty=1&yr=2015-2018

      Reply
  • John says:

    Will your 6″ kit fit on a 2015 Denali XL?

    Reply
    • Carter @ BDS Suspension says:

      Hey John, these kits will not work on the Yukon Denali and Yukon XL Denali as those models are factory equipped with Magneride

      Reply
  • Brent Stratton says:

    2″ Leveling kit for a 2015 Tahoe LT. I’m wanting to run a 20×12 -44 and was curious to what size tire it could handle. I know trimming will need to be done to fit the wheel specs.

    Reply
    • Carter @ BDS Suspension says:

      Hey Brent, that’s a difficult one to answer, partially because that wheel is outside of the recommended specs we’ve tested. Along with that not knowing your comfort level trimming or intended vehicle use (on or offroad). Due to the squared off shape of the wheel wells it requires a fair amount of lift to clear larger tires, especially with wider wheels. Being you only intend to install a 2″ leveling my assumption would be roughly the stock size tire with that 20×12 wheel.

      Reply
  • Aaron Nalker says:

    I have a 2015 chevy suburban and I want a 6in to 7in left and was wondering what would work best?

    Reply
    • Carter @ BDS Suspension says:

      Hey Aaron, being you’re looking for 6-7″ of lift I’d recommend our 6″ lift systems. We offer a few versions of the 6″ kit depending on what features you have stock (standard or autoride)(aluminum, stamped steel or cast steel factory control arms). For the standard (non-autoride) equipped models we offer replacement gas struts for the front as well as FOX 2.5 coilover upgrades. To check out all the available options and customize a kit head to http://bds-suspension.com/product?kid=731H

      Reply
  • Lachelle says:

    I have a 2015 Chevy Tahoe I want 3.5 or 4 suspension lift kit. I have auto ride and need something work with it. What would you suggest?
