1547FDSC-1

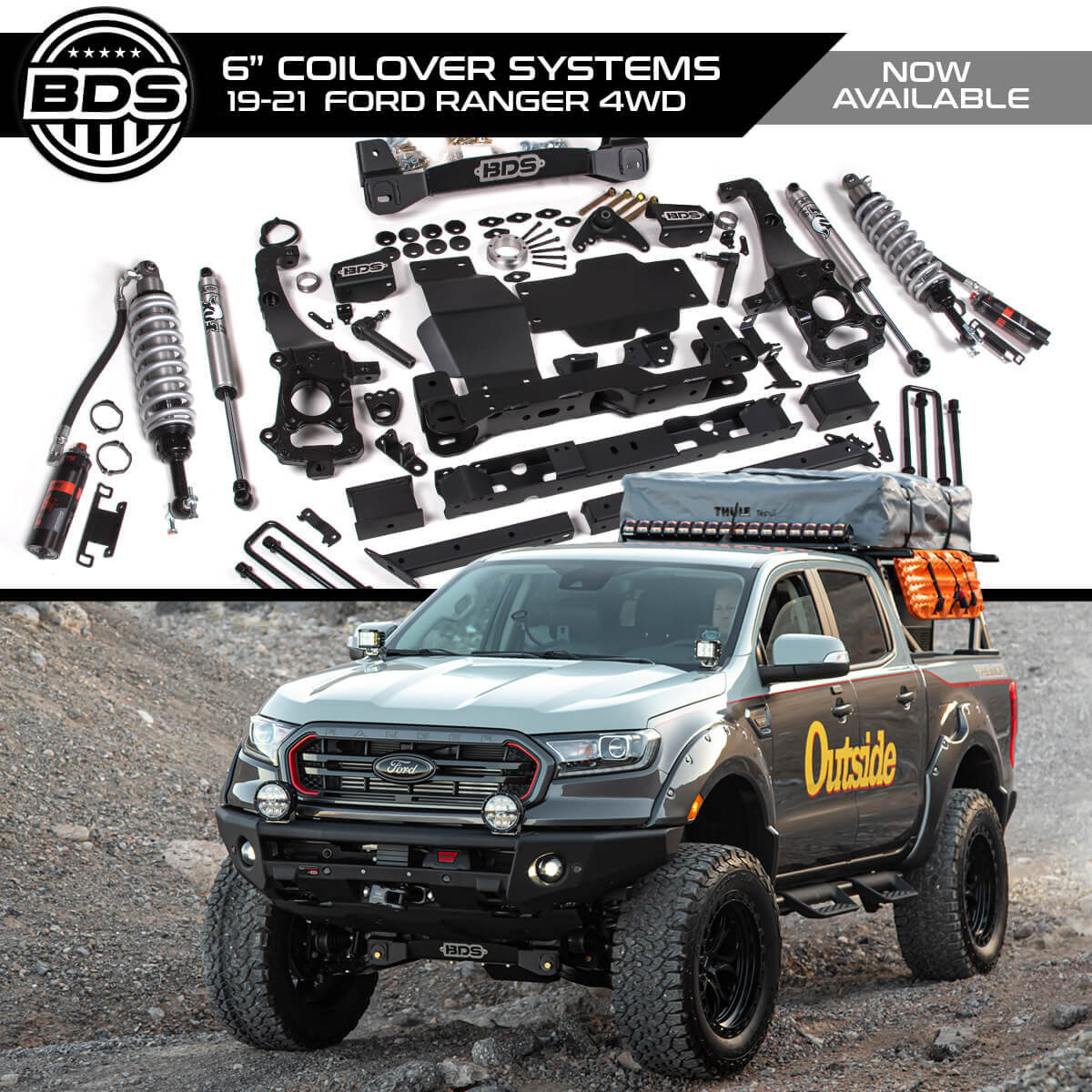

BDS is now shipping complete 6” DSC Coilover Systems for the 2019-2020 Ford Ranger. These kits have been designed, tested and manufactured right here in the USA to a higher standard to ensure quality and durability. From the rocks of Moab to the Nevada desert, thousands of miles across country, these FMVSS No.126 compliant 6” lift systems has been thoroughly tested and refined to be the best out there for your new Ranger. These new 6” coilover systems join the current 2"/2.5"/3.5”/6" lift systems to offer a wide range of lift options for the late model Ranger. As with all BDS lift kits, these new 6” coilover systems are backed by Factory Protection Plus for peace of mind wherever your adventures may take you. Factory Protection Plus includes BDS’s exclusive No Fine Print Warranty, ESC system compatibility and a 5-year 60,000-mile drivetrain warranty.

Product Info

1547FDSC - 6" DSC Coilover System
for 2019-2020 Ford Ranger 4WD

Vehicle Fitment

2019-2020 Ford Ranger 4WD*
*non-Tremor package

*non-cast steel OE arm trucks

Factory Protection Plus
  • 5-year, 100K-mile Drivetrain Warranty
  • BDS’s exclusive No Fine Print Warranty

***Check the BDS website to verify details prior to ordering to ensure information is up-to-date with current Mfg listings***

Features/Benefits

  • Designed to correct suspension, steering and driveline geometry
  • High strength 1/4" laser cut steel crossmembers improve ground clearance
  • Stout ductile iron steering knuckles for strength & ESC compatibility
  • Multi-point differential relocation brackets to correct CV axle angles
  • FOX 2.5 DSC coilovers for next level performance and tuneability
  • Retains factory ride quality and handling characteristics
  • Includes Factory Protection Plus at no extra charge
  • Allows fitment for up to 35” tires

Wheel/Tire Recommendations

35x12.50 Tires on 20x9 Wheels (5.5-6" BS)
305/65r18 Tires on 18x9 Wheels (5" BS)
33x12.50 Tires on 17x9/18x9/20x9 Wheels (4.5" BS)

Available Accessories

#123252 - Performance UCA Kit
#123614 - Front Intrusion Beams
#123109 - Rear 1" Shackle Kit

Media Gallery

Ranger 6" DSC Coilover System
Ranger 6" DSC Coilover System
Ranger 6" DSC Coilover System
Ranger 6" DSC Coilover System
Ranger 6" DSC Coilover System

Coldwater, MI: BDS Suspension is now offering new 6" DSC Coilover Systems for the late model Ford Ranger adding next level performance and capability. Built off the standard 6" lift systems, these new systems up the ante with FOX 2.5 Factory Race Series front coilovers featuring DSC (dual speed compression) adjusters to dial in the the high-speed and low-speed compression damping. While some companies build "kits" to fit larger tires, BDS Suspension prides itself in engineering complete suspension systems designed to take your vehicle's performance to the next level while retaining OE-level functionality. Case in point the (NHTSA) National Highway Traffic Safety Administration's FMVSS No.126 compliance standards requiring any aftermarket modification to not adversely effect the vehicle's electronic stability control (ESC) system performance in the event of an evasive maneuver. These new kits have been independently tested and certified compliant with these standards with up to 35” tires [as tested on 35x12.50 tires on 18x9 wheels w/ 5" BS]. Additionally through our extensive testing we’ve found a number of concerns that needed to be addressed to ensure durability, compatibility and functionality on the new Ranger.

At the heart of this new 6” system BDS utilizes a pair of 1/4" thick laser cut steel crossmembers to improve clearance and provide a solid mounting point for the OE lower control arms. The front crossmember allows integration of the factory front skid plate. These crossmembers are paired with the heavy duty differential skid plate system and sway bar relocation brackets to create a rigid subframe that adds protection for vital steering and driveline components. In place of the factory steering knuckles a pair of specially designed ductile cast iron replacement knuckles are supplied to maintain proper steering geometry for ESC system compatibility. These connect to the factory steering with a pair of heavy duty replacement tie rod ends included in the kit. The front differential is re-positioned with BDS’s multi-point relocation bracket system to secure the front differential and keep CV axle angles at a minimum. A billet aluminum front driveshaft spacer is also supplied along with longer hardware to allow the re-installation of the factory front driveshaft. Additional ride height on this particular kit comes from the FOX 2.5 DSC coilovers designed to bolt in place providing vastly superior performance and easy handling adjustment. A pair of brake line relocation brackets are used to reposition the factory lines along with a new lower control arm cam bolts for more range of motion and easier alignment.

Moving towards the rear this 6” lift system BDS supplies a heavy duty replacement transfer case crossmember used to eliminate any driveline vibrations. This crossmember also includes a carrier bearing drop to improve rear driveline angle and allow the re-installation of the factory driveshaft. Rear lift comes from a pair of 3-5/8” steel fabricated lift blocks designed to level the stance, secured with larger black e-coated u-bolts. Rear brake line brackets and e-brake brackets are supplied and these kits are finished off with a pair of FOX 2.0 IFP performance series gas shocks to offer improved damper performance. All kits come finished in a durable textured black powder coat and sent with all hardware packs to complete the install along with step-by-step installation instructions. All BDS kits include Factory Protection Plus for the ultimate extended warranty to include BDS’s No Fine Print Warranty, ESC System compatibility and a 5year-60,000mile drivetrain warranty to match the dealer. Improve the look and capability of your 2019-2020 Ford Ranger with this new 6” DSC coilover system from BDS Suspension.

© BDS Suspension, 491 W. Garfield Ave. Coldwater, MI 49036
(517) 279-2135 | bds-suspension.com | sales-bds@ridefox.com
