2″ Coilover Systems | 2007-2021 Toyota Tundra | NPR #430

826FSL-1

BDS Suspension adds to its Toyota lineup with 2" coilover systems for the 2007-2021 Tundra. These join BDS's existing 2" - 3" - 4.5" - 7" kit offerings featuring your choice of FOX 2.0 performance series (PS) dampers, either the 2.0 PS snap ring coilover struts or the 2.0 PS loaded coilovers. In addition these kits feature rear 2.0 PS shocks with BDS upper control arms (UCAs) for improved performance over the stock while leveling out the stance. As with all BDS lift kits, these new 2" systems include Factory Protection Plus for the ultimate extended warranty. Factory Protection Plus includes BDS’s No Fine Print Warranty and a 5year 60,000mile drivetrain warranty to match the dealer.

Description

2" Coilover UCA Lift Systems

Fitment

2007-2021 Toyota Tundra 2WD
2007-2021 Toyota Tundra 4WD

Factory Protection Plus
  • 5-year, 60,000 mile drivetrain Warranty
  • BDS’s exclusive No Fine Print Warranty

***Check the BDS website to verify details prior to ordering to ensure information is up-to-date with current manufacturer listings***

Product Info

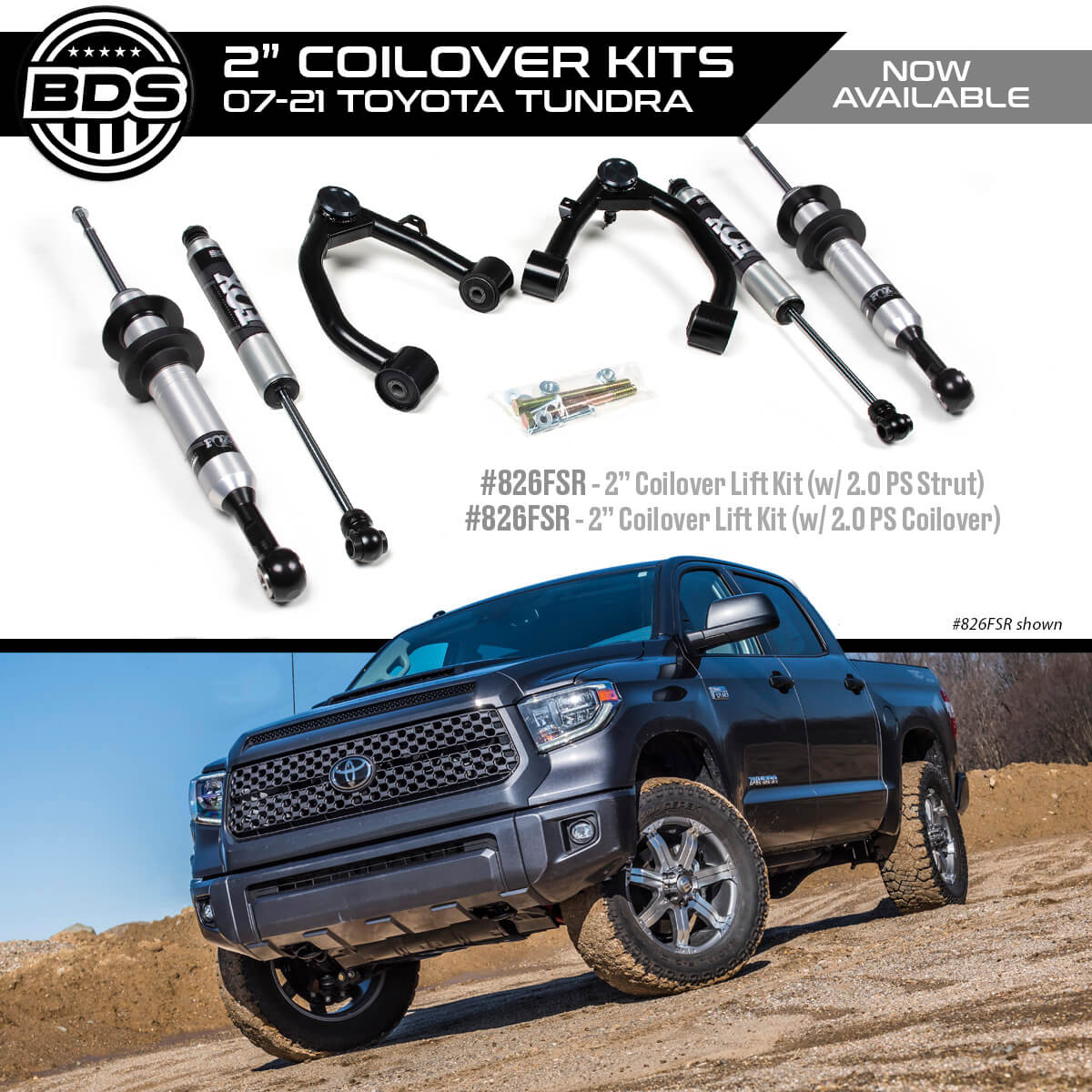

826FSR - 2" Coilover System (w/ FOX 2.0 PS Strut Front)
826FSL - 2" Coilover System (w/ FOX 2.0 PS Loaded Coilover)

Features & Benefits

  • FOX 2.0 performance series snap ring coilover struts or loaded coilovers offer improved damper performance over the factory and are a direct bolt-in replacement
  • Performance UCAs increase strength and allow for more suspension travel
  • Works within parameters of the factory suspension geometry without maxing out suspension and drivetrain angles.
  • Allows clearance for 33" tires

Available Accessories

128006 - Differential Drop Spacers
128109 - 1" Rear Shackle Kit
018208 - 2" Rear Block & U-Bolt Kit
128408/123409 - Recoil Traciton Bar Kit

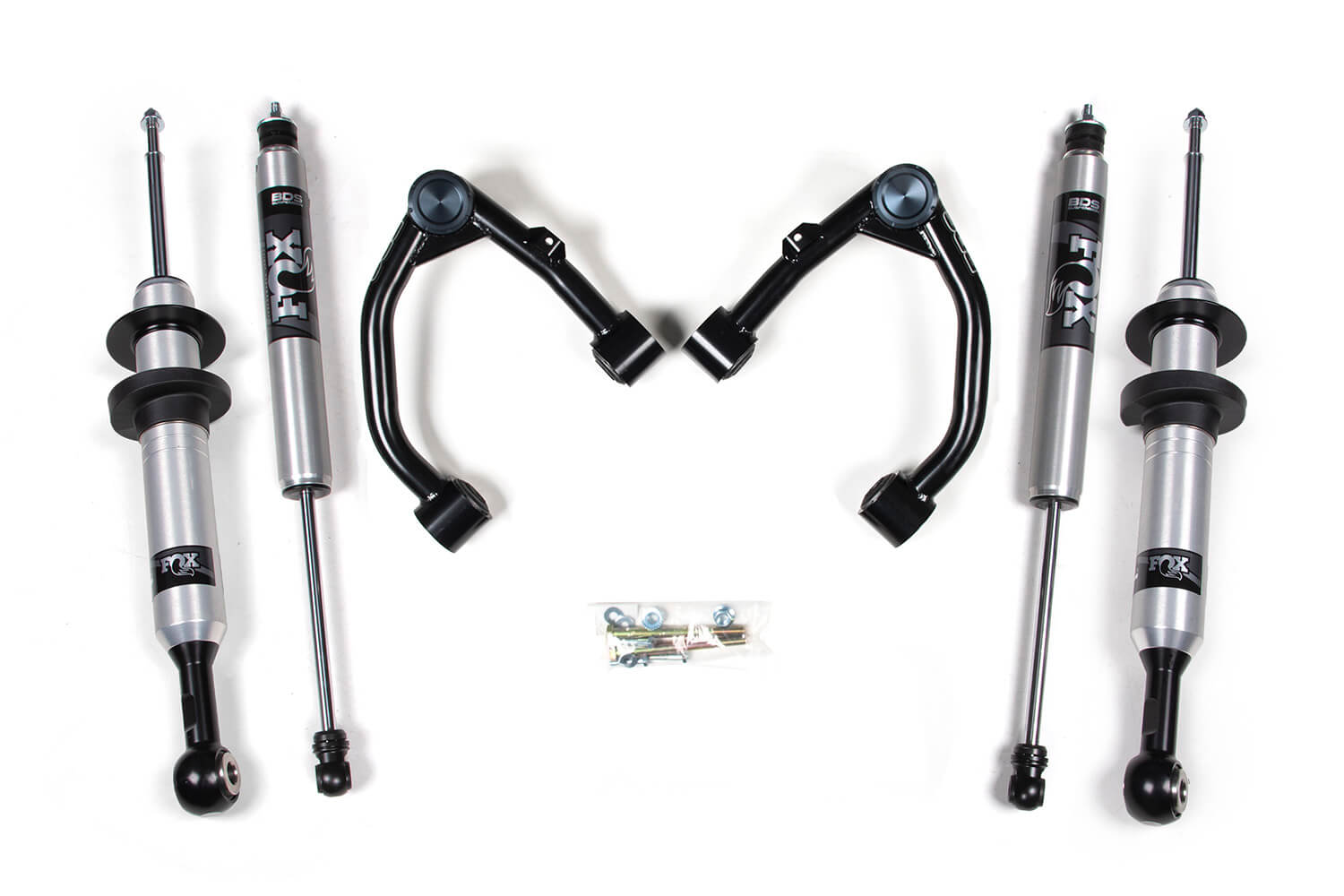

#826FSR Kit

#826FSL Kit

2" BDS Lift Installed

Coldwater, MI: BDS Suspension adds new kit options to its product lineup for the 2007-2021 Toyota Tundra with 2" coilover conversion systems. In stock and ready to ship, these new systems utilize FOX 2.0 performance series dampers at all 4 corners for improved performance along with BDS upper control arms (UCAs). Kits are offered with your choice of front FOX 2.0 snap ring coilover struts or 2.0 loaded coilovers to offer improved performance and capability, without some of the additional features or price point of the FOX 2.5 factory series remote reservoir coilovers also available.

At the heart of these 2" coilover systems are a pair of specially tuned FOX 2.0 Performance Series IFP coilovers. "FSR" kits use a non-reservoir snap ring coilover struts that utilize a collar to allow for up to 2" of lift when used with the factory coil springs and top plate. "FSL" kits use fully assembled FOX 2.0 Performance Series coilovers that are preset for the correct lift height right out of the box and use a threaded body to allow preload adjustment. They are a direct bolt-in replacement for the factory strut assemblies and improve damper performance featuring a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, and a 5/8" hard chrome plated heat treated alloy shaft.

Also supplied as part of these complete 2" lift systems are a pair of BDS performance series upper control arms (UCA). These UCAs improve suspension travel while providing superior strength and styling to the factory arms. These arms are built from 1.5" OD heavy wall tubing, fully welded with integrated support gussets. They include brake line mounting tabs and use an indexed ball joint cup to correct ball joint positioning back to the neutral position at ride height. The BDS arms come fully assembled with OE-style rubber bushings for the frame mounts and a high-quality ball joint for smooth, quiet operation and better durability than arms that use heims and uniballs. In the rear are a pair of specially tuned FOX 2.0 Performance Series IFP shocks designed to pair with the front coilovers for impressive performance on and off-road and to allow clearance for larger tires.
