1904FDSC-1

PRE-LAUNCH ALERT - SHIPPING EARLY 2022

Take your new Bronco to the next level with BDS and FOX. Designed for huge performance gains on and offroad, the BDS 3-4.5" DSC Coilover Systems for the 2021 Ford Bronco 2Dr and 4Dr models are ready to performance right out of the box with clearance for up to 37" tires. Kits will being shipping Fall 2022.

Product Info

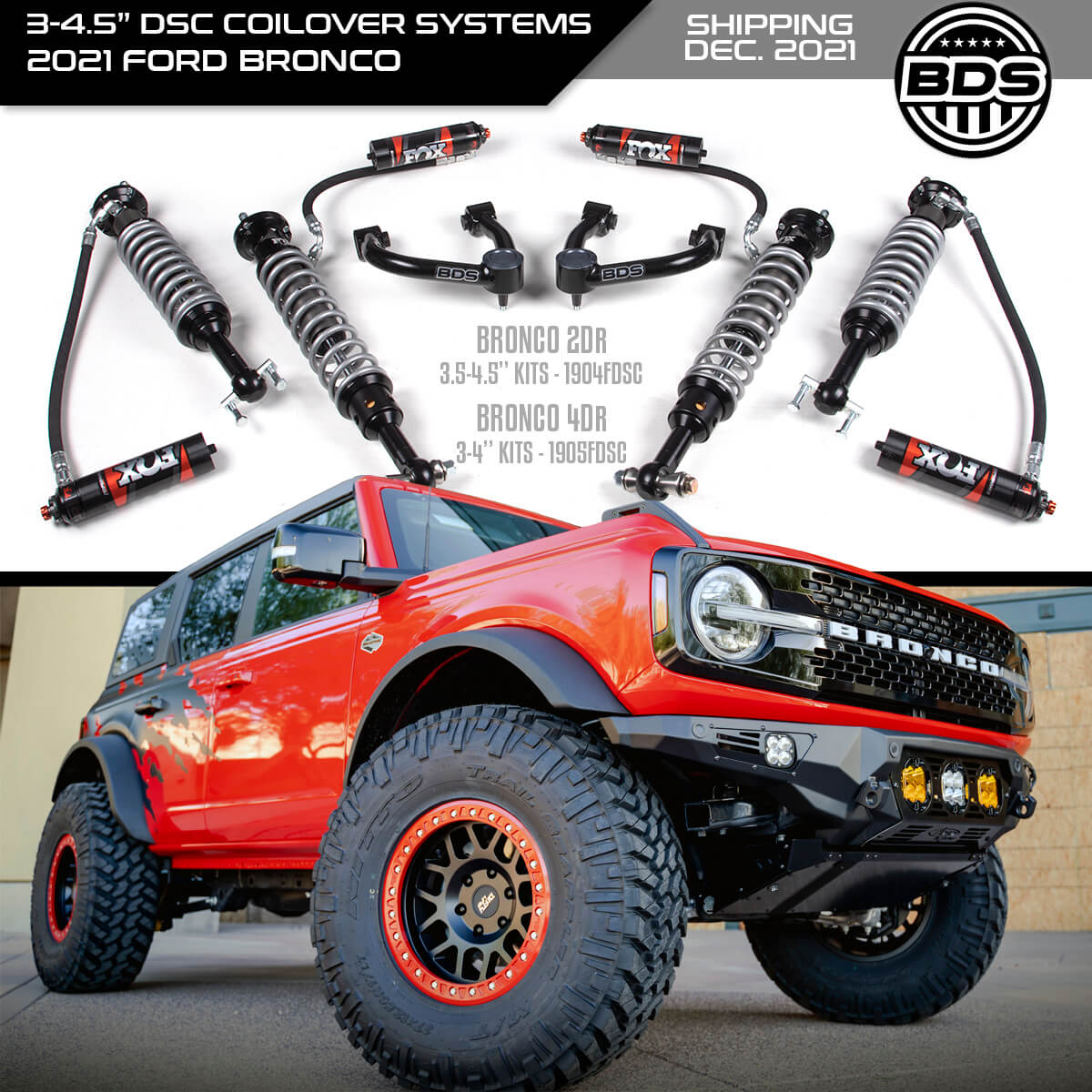

BDS1904FDSC  3.5-4.5" DSC Coilover System for 2Dr Bronco

BDS1905FDSC - 3-4" DSC Coilover System for 4Dr Bronco

Lift Heights Achieved

Based on OE configurations:
3.5" - 2Dr Bronco (w/ Sasquatch)
4" - 2Dr Bronco Badlands (w/o Sasq.)
4.5" - 2Dr Bronco (w/o Badlands or Sasq.)
3" - 4Dr Bronco (w/ Sasquatch)
3.5" - 4Dr Bronco Badlands (w/o Sasq.)
4" - 4Dr Bronco (w/o Badlands or Sasq.)

Available Accessories

#123254 - Uniball UCA Kit (included in kits)
#123302 - LCA Cam Alignment Kits

Factory Protection Plus
  • 5-year, 60,000 mile drivetrain Warranty
  • BDS’s exclusive No Fine Print Warranty

Vehicle Fitment

2021 Ford Bronco 2Dr (all trims)
2021 Ford Bronco 4Dr (all trims)

Features/Benefits

- Next-level performance and off-road capability while maintaining on-road ride quality
- FOX 2.5 Performance Elite 2.5 Series coilovers with remote Dual Speed Compression (DSC) adjusters offer vastly improved damper performance with the ability to dial in compression valving to suit your driving style and vehicle specs.
- BDS Uniball upper control arms feature a high-strength tubular design specially formed to optimal tire and suspension clearance.
- Control arms feature preinstalled vulcanized rubber bushings and high strength FK Uniballs ready for extreme abuse.
- Easy, bolt-on design with no cutting/welding needed.
- Designed and manufactured in the USA.
- Includes Factory Protection Plus warranty program.

Important Notes

Lift height is based on base suspension package, Badlands and Sasquatch models will net less lift however final ride height is the same for all trims.
Do NOT hit the aluminum knuckle with a hammer to separate the ball joint. Use appropriate ball joint separation tool (OTC 204592).
Will not work with models with a height sensor attached to the UCA.
Does not fit Bronco Sport models.

***Check the BDS website to verify details prior to ordering to ensure information is up-to-date with current manufacturer listings***

More Info Coming Soon

MEDIA GALLERY

BDS DSC Coilover Systems for Bronco
BDS DSC Coilover Systems for Bronco
BDS Performance Upper Control Arms | Ford Bronco
BDS Performance Upper Control Arms | Ford Bronco
BDS Performance Upper Control Arms | Ford Bronco
BDS DSC Coilover Systems for Bronco
BDS Lifted Bronco
BDS Lifted Bronco

Coldwater, MI: BDS Coilover Suspension Systems with DSC for 2021 Ford Bronco delivers next-level performance and capability. Designed to outperform on and off-road, BDS builds off the stout factory suspension geometry while adding high clearance, geometry-correcting tubular control arms plus FOX 2.5 Performance Elite Series (PES) coilover at each corner of the vehicle. With aluminum bodies, massive 7/8” hardened chrome shafts, and dual-speed compression (DSC) adjustment, FOX performance Elite Series coilovers are specially tuned for 2-Door or 4-Door Bronco models. Ready to install right out of the box, the coilovers come preloaded with coils and mounting hardware for shocks and reservoirs. DSC allows for easy tuning of high-speed and low-speed compression valving to meet your performance needs and driving style in any terrain. Net lift height varies based on the factory suspension configuration as follows:

Bronco 2Dr w/ Sasquatch package - nets 3.5" of lift
Bronco 2Dr Badlands trim (w/o Sasquatch) - nets 4" of lift
Bronco 2Dr w/ base shocks (w/o Sasquatch) - nets 4.5" of lift
Bronco 4Dr w/ Sasquatch package - nets 3" of lift
Bronco 4Dr Badlands trim (w/o Sasquatch) - nets 3.5" of lift
Bronco 4Dr w/ base shocks (w/o Sasquatch) - nets 4" of lift

Along with the supplied FOX coilovers, BDS has engineered Performance Series upper control arms. The tubular design is specially formed to optimize clearance in a coilover configuration to allow for maximum droop travel along with clearance for a wide range of wheel/tire combinations. Camber angle is corrected at the taller ride height. At the frame mounts, BDS specs vulcanized rubber bushings for smooth, quiet maintenance-free operation in the factory mounts. High-strength FK uniballs add strength and provide more travel than traditional ball joints. BDS Performance Series control arms are finished in a durable gloss black powder coat with an anodized aluminum dust cap. These new systems are designed for easy installation with clearance for 35-37” tires. Take your Bronco to the next level with BDS and FOX.

BDS is pre-launching these lift systems at this time. Shipping begins Fall 2022

Featured Vehicle: Project Fire Command

Check out BDS's Fire Command Bronco equipped with the 4.5" DSC Coilover System. (more info)

© BDS Suspension, 491 W. Garfield Ave. Coldwater, MI 49036
(517) 279-2135 | bds-suspension.com | sales-bds@ridefox.com

11 Comments on “3-4.5″ DSC Coilover Systems | 2021 Ford Bronco | NPA #422
  • Rod Leonard says:

    Are you going to have any 3″ coil over lifts affordable like your Jeep kits? I have had four 4″ lifts from BDS but I’m getting the Bronco probably in late 22. Seems like everyone is price gouging for this vehicle, just praying you guys aren’t.
    Are you in Mi.?

    Reply
    • Carter @ BDS Suspension says:

      Hey Rod, we are based in Michigan. On your questions about pricing its based on the components in the kit. Coilovers are expensive and being the Bronco has 4 corner coilovers that we’re upgrade to FOX 2.5s there is some cost involved to get that level of performance. We won’t be offering any strut spacer options for the Bronco, but our sister company Zone Offroad offers them – check out those kits at https://zoneoffroad.com/collections/ford-bronco

      Reply
  • Chris Richards says:

    Need pricing on the kit for my 21 first edition 2 door full size bronco. Thx, Chris

    Reply
  • Eddie Wexler says:

    Any word on lift kits for Bronco Sports from BDS or Zone Offroad? I want to lift my BS somethin’ fierce, but I’m hesitant to install a potentially inferior kit from one of your competitors. Thanks

    Reply
  • Eddie Wexler says:

    Okay- just read your entry in regard to the Zone 1.5” spacer kit for Bronco Sports. Thanks for the info, Carter

    Reply
  • Nicholas Casamayor says:

    it says it releases in December 2021 but it’s the 22nd already. Has it been delayed?

    Reply
    • Carter @ BDS Suspension says:

      Hey Nicholas, unfortunately we’re dealing with some unforeseen delays with getting the coilovers in, but expect to shipping to begin early 2022.

      Reply
  • jim says:

    Hey carter, I have a 4 door wildtrak SAS. installed the zone off-road 3” lift. problem is its actually a 3” front and 2” rear so it sits completely level (which drives me nuts). will your lift do the same thing? or raise both the front and back 3″?

    Reply
    • Carter @ BDS Suspension says:

      Hey Jim,
      short answer yes. The FOX coilovers have a threaded body so ride height at each corner can adjusted by turning the preload collar to get your desired stance. We’ll be offering these FOX coilovers in the coming months and they’ll work with your Zone UCAs

      Reply
