PR396-01

BDS Suspension adds next level performance to its F150 lineup with 2" coilover systems for the 2009-2013 and 2014-2020 Ford F150 trucks. These join BDS's existing leveling, 4" and 6" lift options. These new 2” performance leveling systems improve all around vehicle performance and capability with FOX 2.5 factory series remote reservoir coilovers (w/ optional DSC adjustment), BDS performance series upper control arms and your choice of FOX 2.0 performance series or FOX 2.5 factory series piggyback reservoir rear shocks allowing clearance for up to 35" tires. Kits will NOT fit 2021 model Ford F150s, those kits are in development to be released soon.

Product Description

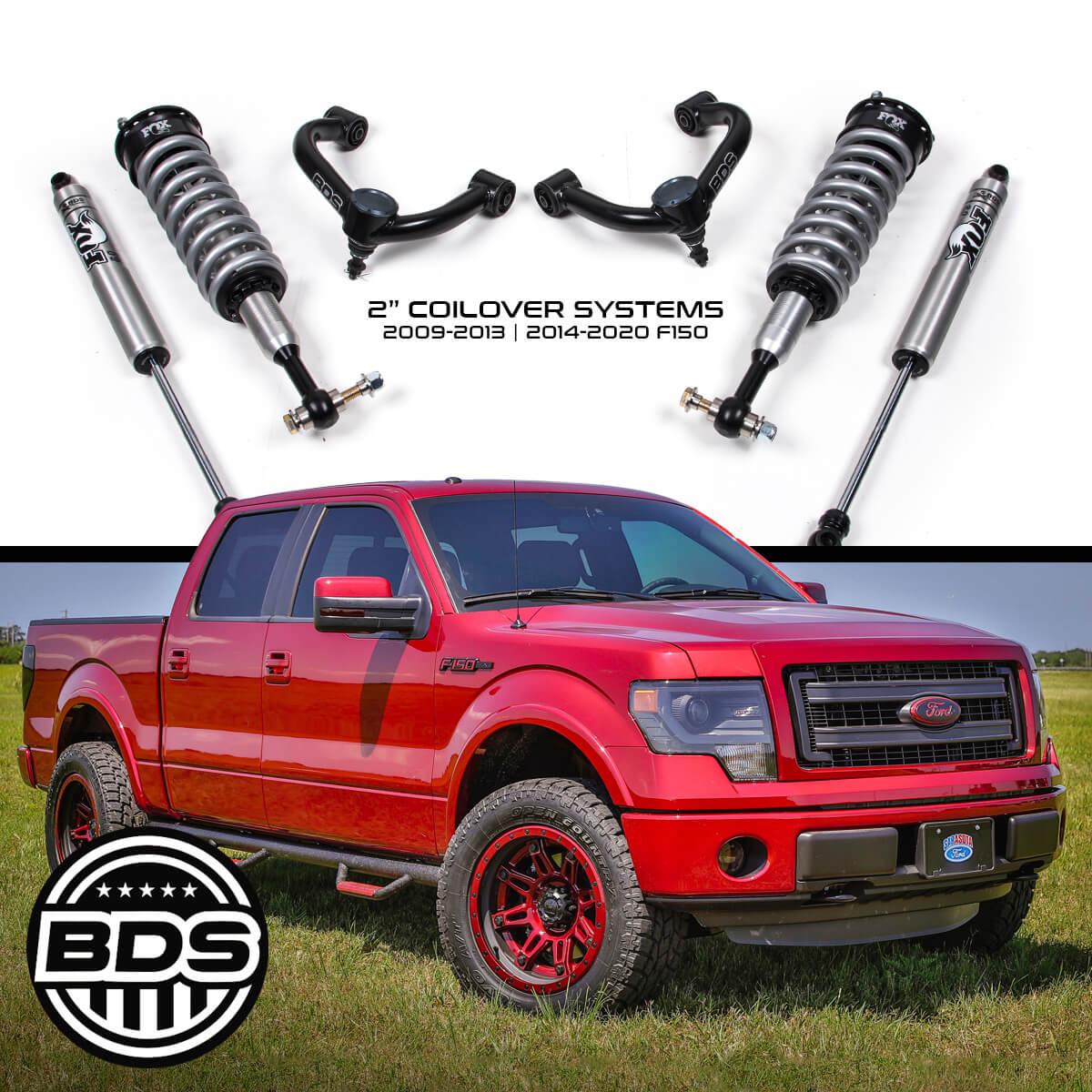

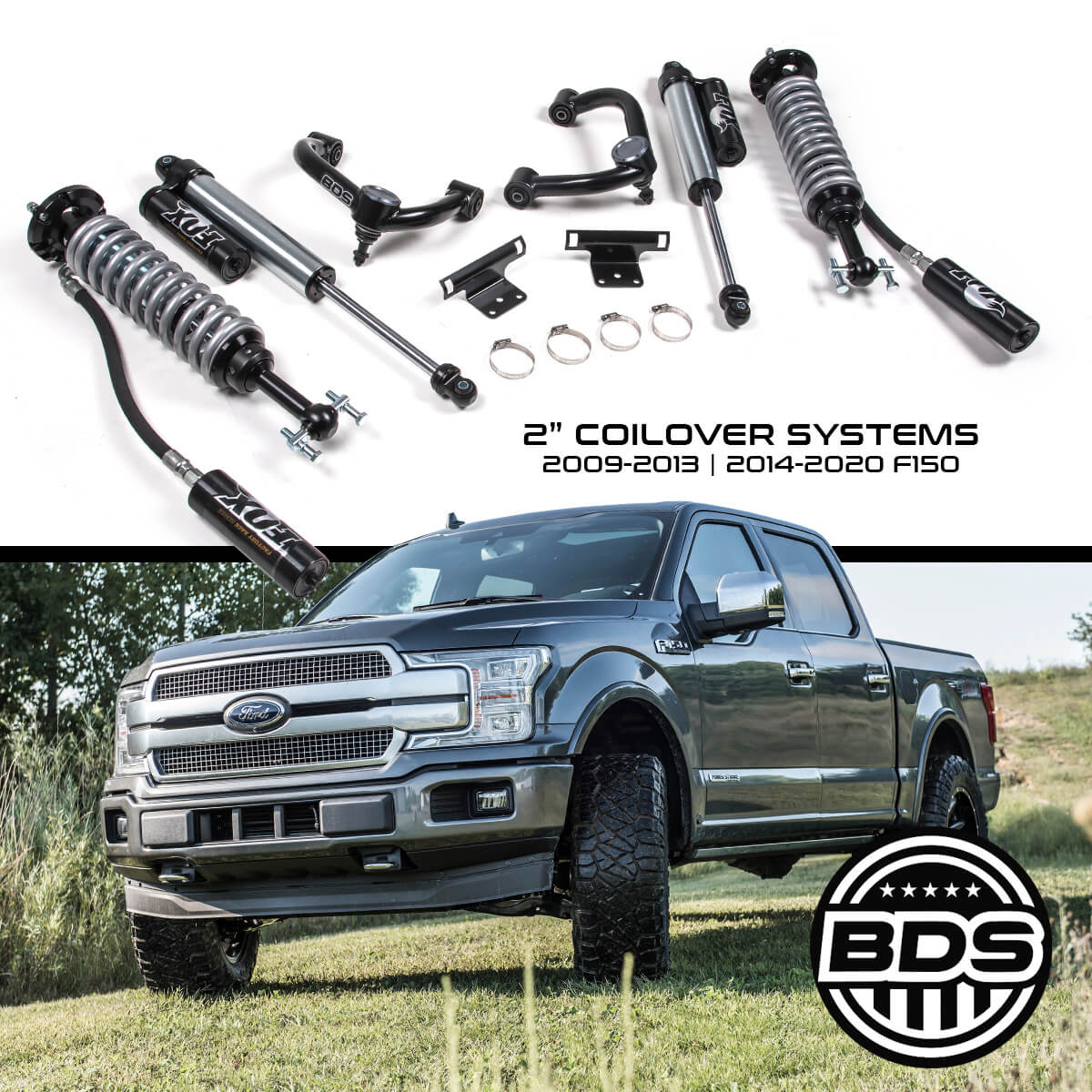

2" Coilover Systems for Ford F150

Vehicle Fitment

2009-2020 Ford F150

Rec'd Wheel/Tire Specs:

35x12.50 Tires on 20x9 Wheels (5.5" BS)

Install Time/Difficulty:

3 Hours / 3 of 5

Factory Protection Plus
  • 5-year, 60,000 mile drivetrain Warranty
  • BDS’s exclusive No Fine Print Warranty

Product Information:

2009-2013 F150
#BDS1554FSL - 2" Coilover System (2.0 IFP Front / 2.0 IFP Rear)
#BDS1586F - 2" Coilover System (2.0 IFP Front / 2.0 IFP Rear)
#BDS1586FDSC - 2" DSC Coilover System (2.5 R/R Front / 2.0 IFP rear shocks)
#BDS1554F -2" Coilover System (2.5 R/R Front / 2.5 P/B Rear)
#BDS1554FDSC - 2" DSC Coilover System (2.5 R/R Front / 2.5 P/B Rear)

2014-2020 F150
#BDS1553FSL - 2" Coilover System (2.0 IFP Front / 2.0 IFP Rear)
#BDS1582F - 2" (Coilover System (2.5 R/R Front / 2.0 IFP Rear)
#BDS1582FDSC - 2" DSC Coilover System (2.5 R/R Front / 2.0 IFP Rear)
#BDS1553F - 2" Coilover System (2.5 R/R Front / 2.5 P/B Rear)
#BDS1553FDSC - 2" DSC Coilover System (2.5 R/R Front / 2.5 P/B Rear)

Features/Benefits:

  • FOX 2.0 IFP or 2.5 R/R coilovers for next level shock damping
  • Performance UCAs add strength and increase suspension travel
  • Levels stance with clearance for up to 35" tires
  • Rear FOX 2.0 IFP or 2.5 P/B shocks for improved performance
  • Improved ride quality, control, and capability

Coldwater, MI: BDS Suspension introduces the latest addition to its ever-expanding product lineup for the later model 2014-2020 Ford F150 with new 2" coilover conversion systems in stock and now shipping. Designed to be so much more than just a "leveling kit", these new coilover systems take advantage of the factory suspension geometry without overextending operating angles and offer next level performance in a smaller lift package. At the heart of these new 2" systems are a pair of precision tuned FOX 2.5 factory series remote reservoir coilovers engineered to outperform on and offroad as they soak up the terrain. These coilovers are preset for the correct lift height right out of the box to provide optimal performance and direct bolt-in replacement for the factory strut assemblies. They feature a smooth bore and honed seamless alloy body, 7/8" hardened steel carbon shaft, Eibach coil springs and black anodized machined 6061-T6 billet aluminum mounts along with remove reservoirs optional DSC (dual speed compression) adjustment technology built in. DSC allows for easy adjustment of the vehicle's suspension compression dampening so you can dial in the ideal ride performance to soak up the bumps, both large and small. The DSC has 12 adjustment points for the high speed compression as well as 10 adjustment points for the low speed compression allowing you to make large or small changes to further improve your performance. Adjustments can be made by simply twisting the knobs located on the end of the reservoir. No tools or shop adjustments needed, allowing you to tune the suspension out on the trail. A pair of reservoir mounting brackets are supplied to position the reservoirs above. Complimenting the coilovers are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Built from thick wall 1.5" DOM tubing, these UCAs utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims. Rounding out these 2" coilover systems are your choice of FOX 2.0 IFP or FOX 2.5 factory series piggyback rear gas shocks to match the front and complete the package.

As with all BDS kits, these come ready to install right out the box with all hardware packs and step-by-step installation instructions. All BDS kits include Factory Protection Plus for the ultimate extended warranty to include BDS's No Fine Print Warranty, ESC System compatibility and a 5year-60mile drivetrain warranty to match the dealer. Improve the look and capability of your F150 with this new 2" coilover system from BDS Suspension and FOX.

Media Gallery

© BDS Suspension, 491 W. Garfield Ave. Coldwater, MI 49036
(517) 279-2135 | bds-suspension.com | sales-bds@ridefox.com
