PR401-01

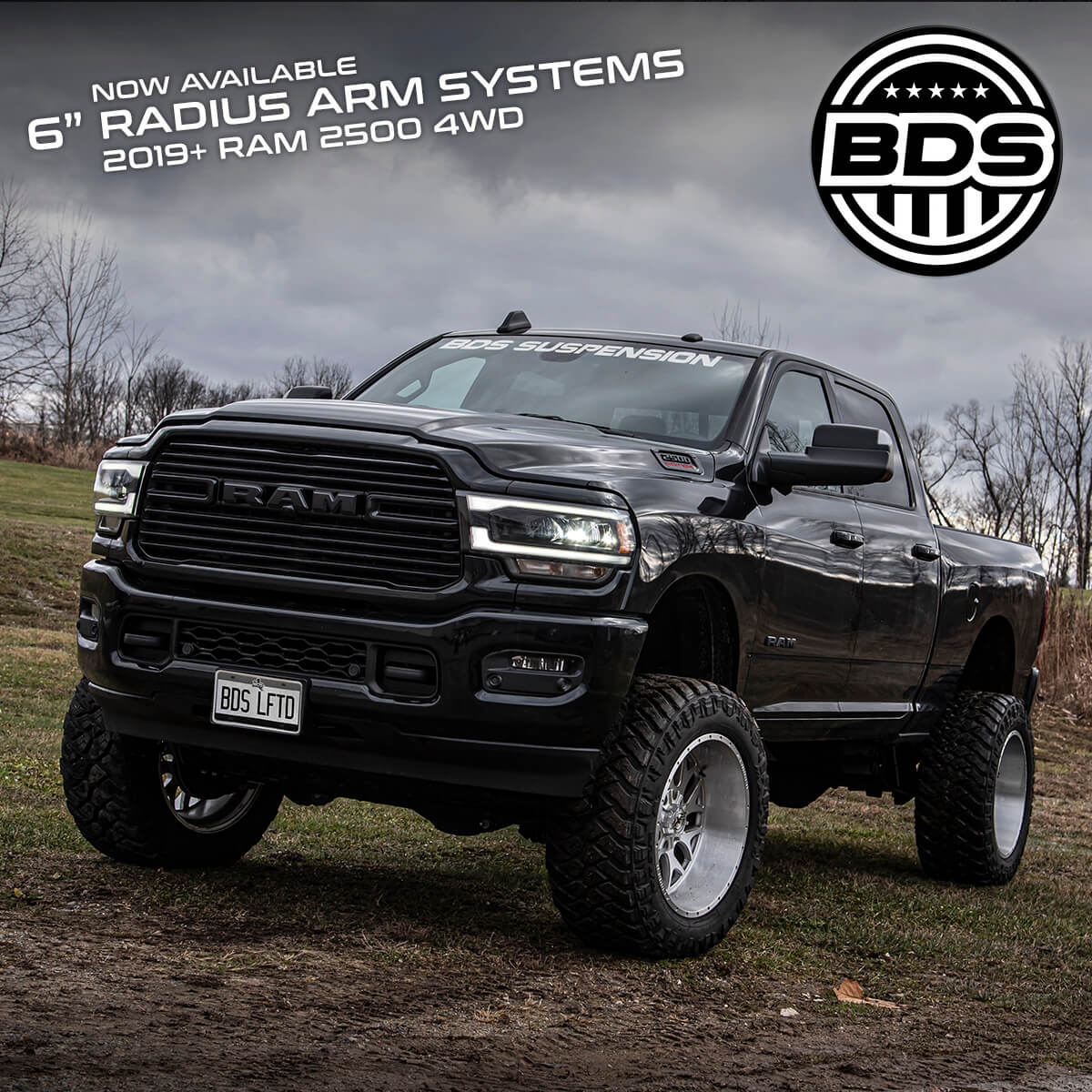

BDS Suspension is now shipping complete 6" radius arm systems for the 2019+ RAM 2500 4WD trucks. These kits have been engineered for improved on-road comfort and offroad capability. Kits include high strength tubular radius arms, front and rear progressive rate coil springs, your choice of gas shocks, steering correction and more allowing clearance for up to 37" tires. As with all BDS Suspension systems these new 6" radius arm systems are backed by Factory Protection Plus for peace of mind wherever you choose to explore.

Product Description

5.5 - 6" Radius Arm System for 2019-2020 RAM 2500 Trucks

Vehicle Fitment

2019-2020 RAM 2500 4WD

Rec'd Wheel/Tire Specs:

37x12.50 Tires w/ 20x9 Wheels and 4.5"-6.25" BS
37x13.50 Tires w/ 20x9 Wheels and 5.625" BS
37x12.50 Tires w/ 18x9 Wheels and 4.5"-5.625" BS
37x13.50 Tires w/ 18x9 Wheels and 5.625" BS

Product Information:

BDS1680H/FS – 6” Radius Arm Kit  (Diesel | 6-Bolt Tcase)
BDS1681H/FS - 5.5" Radius Arm System (Gas | 6-Bolt Tcase)

Important Notes:

  • 6.4L gas models will require exhaust modification to clear front driveshaft. Vehicle can be driven w/o front driveshaft for an exhaust shop to make necessary modifications
  • Will not fit rear air-ride equipped models
  • Will not fit Power Wagon models

Available Accessories:

BDS122324 -HD Adjustable Track Bar
BDS85427 - Single NX2 Steering Stabilizer
FOX98224018 - Single FOX 2.0 Steering Stabilizer
BDS55382/BDS85422 - Dual NX2 Steering Stabilizer Kit
BDS55382/FOX98224016 - Dual FOX Steering Stabilizer Kit
BDS122609 - HD Rear Track Bar
BDS102003 - SS Front Brake Lines Pr.
BDS122406 - Carrier Bearing Drop Kit
BDS082405 - Drop Pitman Arm

Features/Benefits:

  • Heavy duty tubular radius arms improve strength, offer more ground clearance and correct caster
  • F/R high strength progressive rate coil springs for a great ride on any terrain
  • F/R track bar relocation bracket to re-position axles under the truck
  • Forged drop pitman arm to correct steering angles
  • F/R Sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
  • Allows clearance for 37" tires
Factory Protection Plus
  • 5-year, 100,000 mile drivetrain warranty
  • BDS’s exclusive No Fine Print Warranty

Coldwater, MI: BDS Suspension is now shipping complete 5.5-6" radius arm systems for the 2019+ RAM 2500 4WD trucks. These kits have been engineered for improved on-road comfort and offroad capability. Kits include high strength tubular radius arms, front and rear progressive rate coil springs, your choice of gas shocks, steering correction and more allowing clearance for up to 37" tires. As with all BDS Suspension systems these new 5.5-6" radius arm systems are backed by Factory Protection Plus for peace of mind wherever you choose to explore.

6" Radius Arm Systems (Diesel)

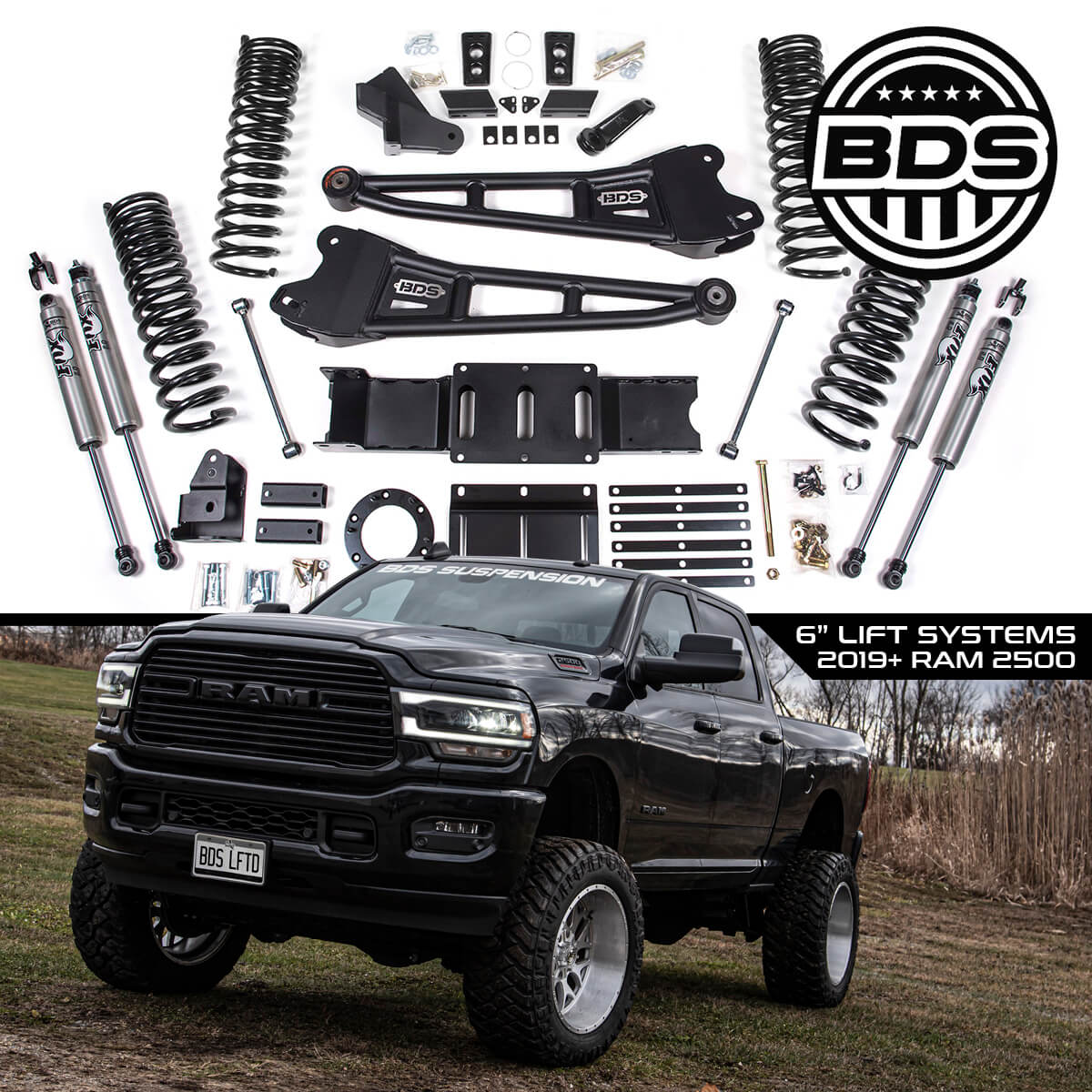

Up front these systems use a pair of (gas specific) progressive rate 6" coil springs to provide the extra height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles along with a HD bar drop bracket to re-center the front axle. A pair of sway bar drop brackets reposition the OE sway bar for optimal performance along with extended polyurethane bump stops to limit up travel and brake line brackets to allow full droop. To correct the front suspension geometry at the new height a pair of heavy duty replacement radius arms that bolt directly into the factory location. These new radius arms are massive upgrade to the factory stamped units, using tubular construction and a lower cam adjustment to dial in front end caster. Also supplied are your choice of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks for improved ride and performance.

At 6" of lift it is critical to correct the front driveline angle to maintain use of the 4WD. To do this BDS Suspension provides a heavy duty replacement adjustable transmission crossmember as well as a transfer case indexing ring to reposition the front driveline output to allow use of the factory drivelines. In the rear of the RAM 2500 kits 4.5" progressive rate coil springs are supplied to provide a level stance while maintaing load capacity and ride quality and all around performance. Extended rear sway bar end links and new bump stops are included to compensate for the lift along with a track bar bracket to re-center the rear axle. Finishing out the rear are a matching set of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks.

5.5" Radius Arm Systems (Gas)

Up front these systems use a pair of (gas specific) progressive rate 5.5" coil springs to provide the extra height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles along with a HD bar drop bracket to re-center the front axle. A pair of sway bar drop brackets reposition the OE sway bar for optimal performance along with extended polyurethane bump stops to limit up travel and brake line brackets to allow full droop. To correct the front suspension geometry at the new height a pair of heavy duty replacement radius arms that bolt directly into the factory location. These new radius arms are massive upgrade to the factory stamped units, using tubular construction and a lower cam adjustment to dial in front end caster. Also supplied are your choice of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks for improved ride and performance.

At 5.5" of lift it is critical to correct the front driveline angle to maintain use of the 4WD. To do this BDS Suspension provides a heavy duty replacement adjustable transmission crossmember as well as a transfer case indexing ring to reposition the front driveline output to allow use of the factory drivelines. In the rear of the RAM 2500 kits 4.5" progressive rate coil springs are supplied to provide a level to slightly tail high stance while maintaing load capacity and ride quality and all around performance. Extended rear sway bar end links and new bump stops are included to compensate for the lift along with a track bar bracket to re-center the rear axle. Finishing out the rear are a matching set of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks.

As with all BDS Suspension kits these include Factory Protection Plus for a limited lifetime warranty, ESC System compatibility, and 5-year, 100,000-mile drivetrain warranty. Get the look and the ride you are after with these new radius arm systems from BDS Suspension.
