PR315

Following the release of the new BDS 4.5" and 6.5" complete coilover conversion systems for the '01-10 GM2500HD trucks and SUVs, BDS is now offering bolt-on coilover upgrade kits designed for compatibility with existing BDS high clearance systems and take your truck's performance to the next level. Available in 4.5" and 6.5" lift heights these coilover upgrades kits replace your factory torsion bars and shocks converting over to FOX 2.5 factory series DSC coilovers.  Similar to the widely popular coilover conversion systems offered for the late model 2011-2018 HD's, these new coilover conversion systems ditch the factory torsion bars and bring next level performance, capability, and ride quality to the 2001-2010 Chevy/GMC HD platform with room for up to 37" tires. Get more out of your HD with these new coilover upgrade kits from BDS and FOX.

Product Description

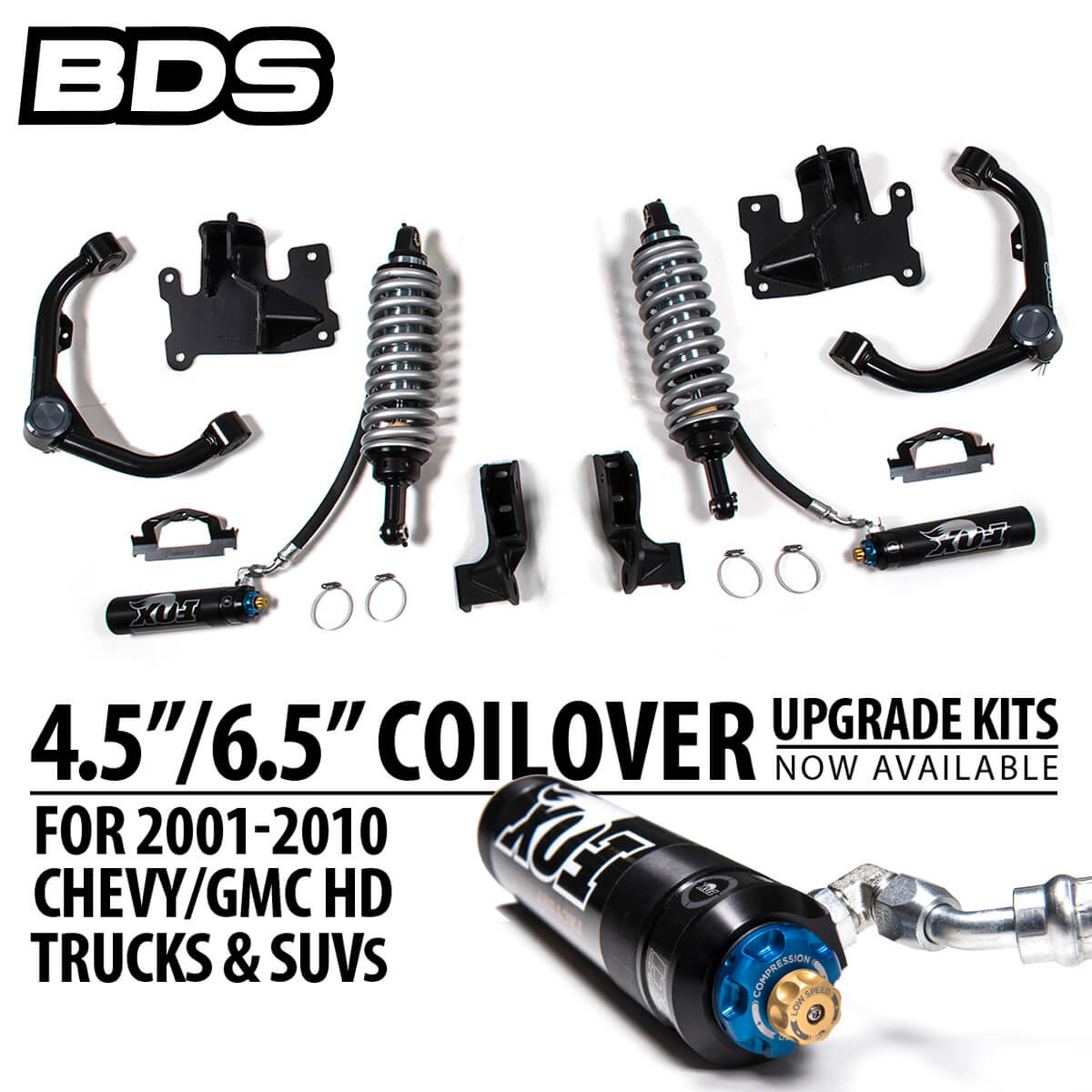

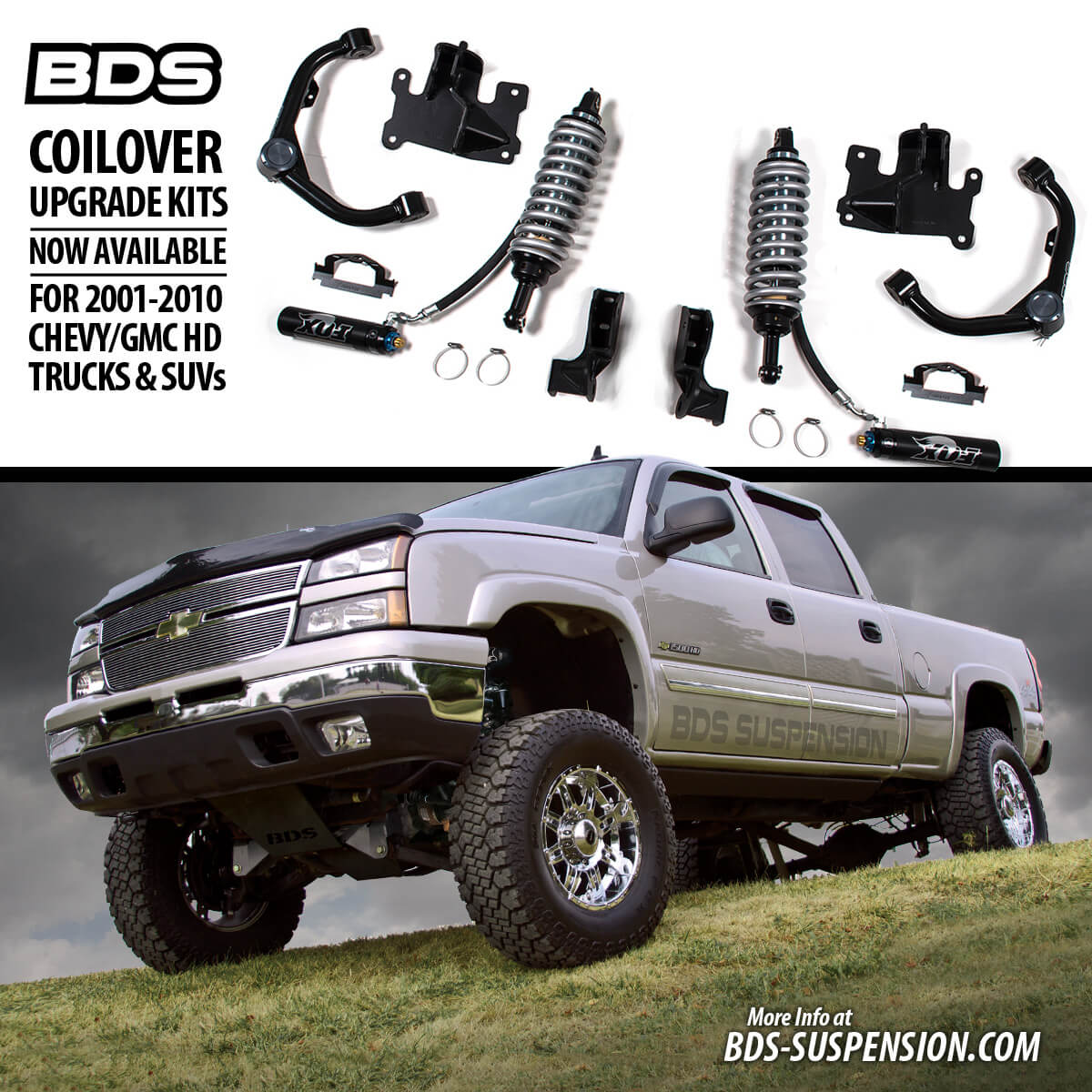

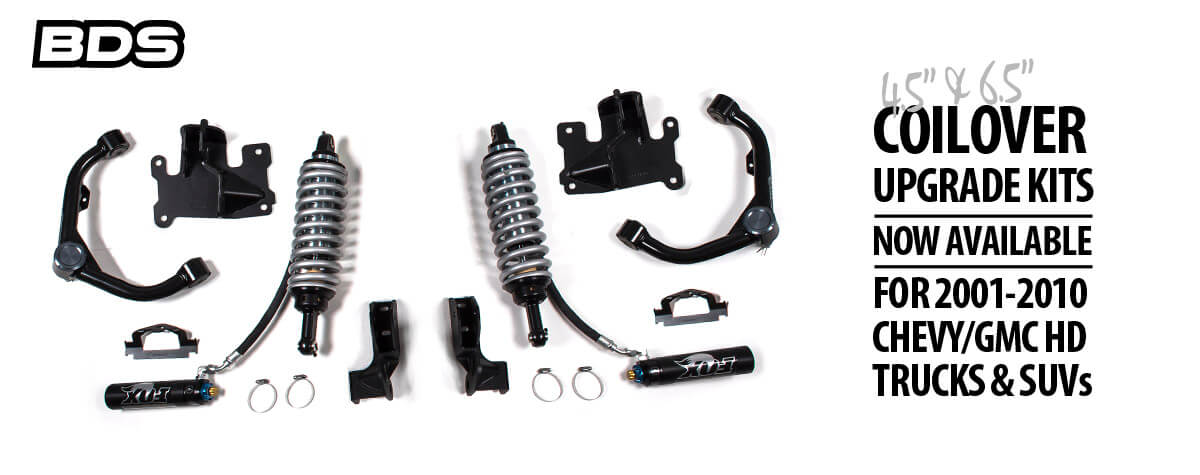

4.5"/6.5" Coilover Upgrade Kits
for Chevy/GMC HD Trucks/SUVs

Coilover Upgrade Kit Info

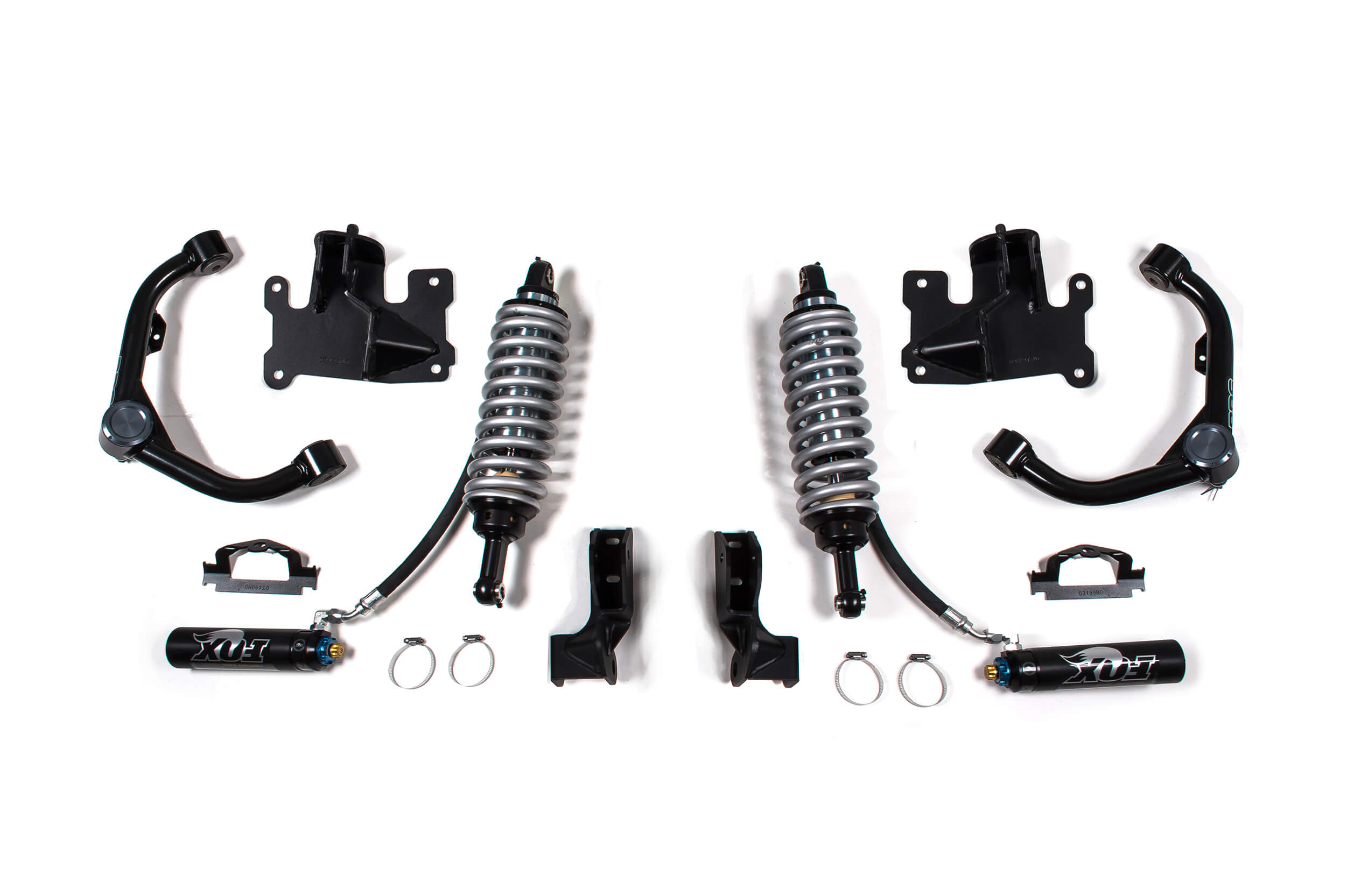

#741FDSC - (6.5" C/O Upgrade Kit) - $3153.60 msrp
#742FDSC - (4.5" C/O Upgrade Kit) - $3153.60 msrp

Complete Coilover Conversion System Info

#738FDSC - (6.5" C/O System, rear block) - $4795.33 msrp
#739FDSC - (6.5" C/O System, rear leaf) - $5479.92 msrp
#740FDSC - (4.5" C/O System, rear block) - $4778.40 msrp
* See Full Announcement on Coilover Conversion Systems *

Vehicle Fitment

2001-2010 Chevy Silverado 1500HD/2500HD/3500HD 2/4WD
2001-2013 Chevy Suburban 2500HD 2/4WD
2001-2010 GMC Sierra 1500HD/2500HD/3500HD 2/4WD

2001-2010 GMC Denali 2500/3500HD 2/4WD
2001-2013 GMC Yukon XL 2500HD 2/4WD

BDS Coilover System Features

  • FOX 2.5 factory series coilovers with remote DSC adjustment (Dual Speed Compression)
  • Performance UCAs for increased travel
  • Bolt-on design requires no welding
  • Eliminates rough riding torsion bars
Factory Protection Plus
  • 5-year, 100,000 mile drivetrain warranty
  • BDS’s exclusive No Fine Print Warranty

Coldwater, MI - BDS Suspension adds to its lineup of coilover options with new coilover conversion upgrade kits for the '01-10 Chevy/GMC 1500HD/2500HD/3500HD trucks and 2500 (8-lug model) SUVs. These kits join the BDS 4.5" and 6.5" complete coilover conversion systems that launched earlier this year to give current BDS customers the option to take their current (non-coilover) high clearance IFS kits to the next level for superior performance and capability. Available in 4.5" and 6.5" lift heights these coilover upgrades kits replace your factory torsion bars and shocks converting over to FOX 2.5 factory series DSC coilovers to offer the best performance, ride quality and high speed off-road capability on the market.

Building on the tried and true BDS high clearance system, these upgrade kits feature FOX 2.5 factory series coilovers with remote DSC reservoir. These coilovers feature a smooth bore and honed seamless alloy body, 7/8" hardened stainless steel shaft, FOX coil springs, black anodized machined 6061-T6 billet aluminum mounts and FOX's DSC (dual speed compression) adjustment technology. The DSC adjustment allows for easy adjustment of the vehicle's suspension compression damping to dial in the ideal ride performance to soak up the bumps, both large and small. The DSC has 12 adjustment points for the high speed compression as well as 10 adjustment points for the low speed compression allowing you to make large or small changes to further improve your performance on any terrain. Adjustments can be made by simply twisting the "blue" high speed and "gold" low speed compression knobs located on the end of the remote reservoir of the FOX 2.5 coilovers. No tools or shop adjustments needed, allowing you to tune the suspension out on the trail. The coilovers come fully assembled, preset for either 4.5" or 6.5" of lift for optimal wheel travel.

To mount the coilovers BDS supplies bolt-on brackets that install on the frame and to the factory lower control arm (LCA). These brackets are built from 1/4" steel and are full welded to properly position the coilovers. In addition to replacing the factory torsion bars, the upper control arms (UCA) are upgraded to improved strength, travel, and accommodate the new coilovers. The UCAs are new performance series upper control arms designed specifically for this system to integrate with the 2.5 coilovers. The arms are fabricated from large 1.5" OD x .120-wall tubing, fully welded and gusseted for the highest quality, strength and durability. The arms utilize premium quality Moog brand ball joints and factory style rubber bushings for smooth, quiet operation and superior durability and corrosion protection when compared to arms with uni-balls, poly bushings or heims. The ball joint cups are repositioned for optimal performance allowing for improved suspension travel. These upper control arms are finished in a durable black powdercoat and include a billet aluminum ball joint dust cap. The control arms come fully assembled for easy install right out of the box.

Take your '01-10 HD truck or SUV to the next level with these new coilover upgrade kits and complete coilover conversion systems from BDS and FOX. Head to the BDS website for more info and stop by your local BDS distributor.
