BDS Suspension adds next level performance to its lineup RAM 1500 lineup with 2" coilover systems for the 2013-2018 RAM 1500 trucks. These new 2" performance leveling systems improve all around vehicle performance and capability with your choice of FOX 2.0 performance series IFP coilover or FOX 2.5 factory race series remote reservoir coilovers with DSC adjustment for next level ride and damper capability. Additionally these kits utilize BDS performance series upper control arms and FOX 2.0 performance series IFP rear shocks alowing clearance for up to 33" tires. As with all BDS lift kits these new 2" system includes Factory Protection Plus for the ultimate extended warranty. Factory Protection Plus includes BDS’s No Fine Print Warranty and a 5year-100,000mile drivetrain warranty to match the dealer. Take your RAM 1500 to the next level with BDS Suspension and FOX.

Product Description

2” Coilover Leveling Kits
for 2013-2018 RAM 1500 4WD

Product Info

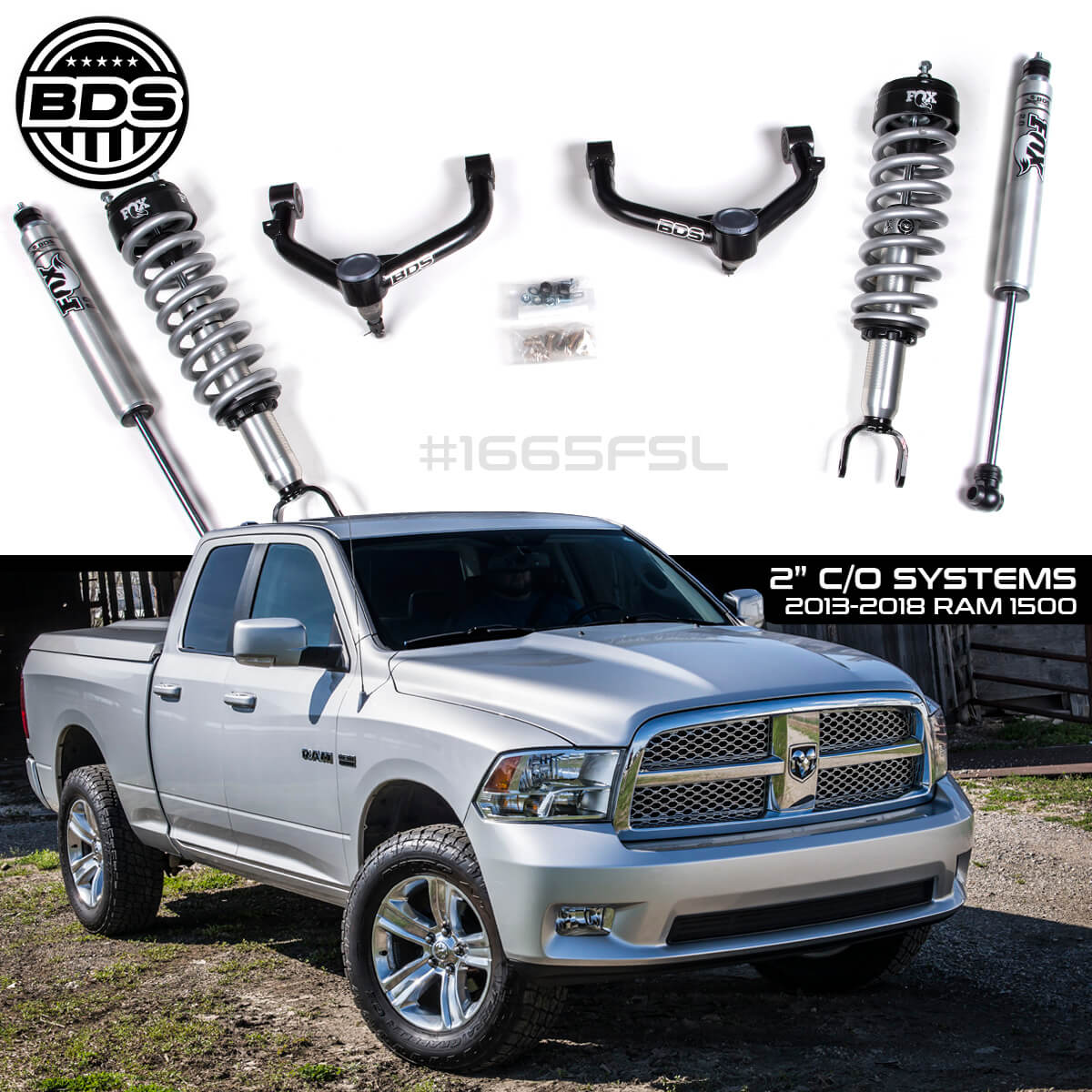

BDS1665FSL – 2” Coilover Leveling Kit
(2.0 Performance Series IFP Coilovers & Shocks)

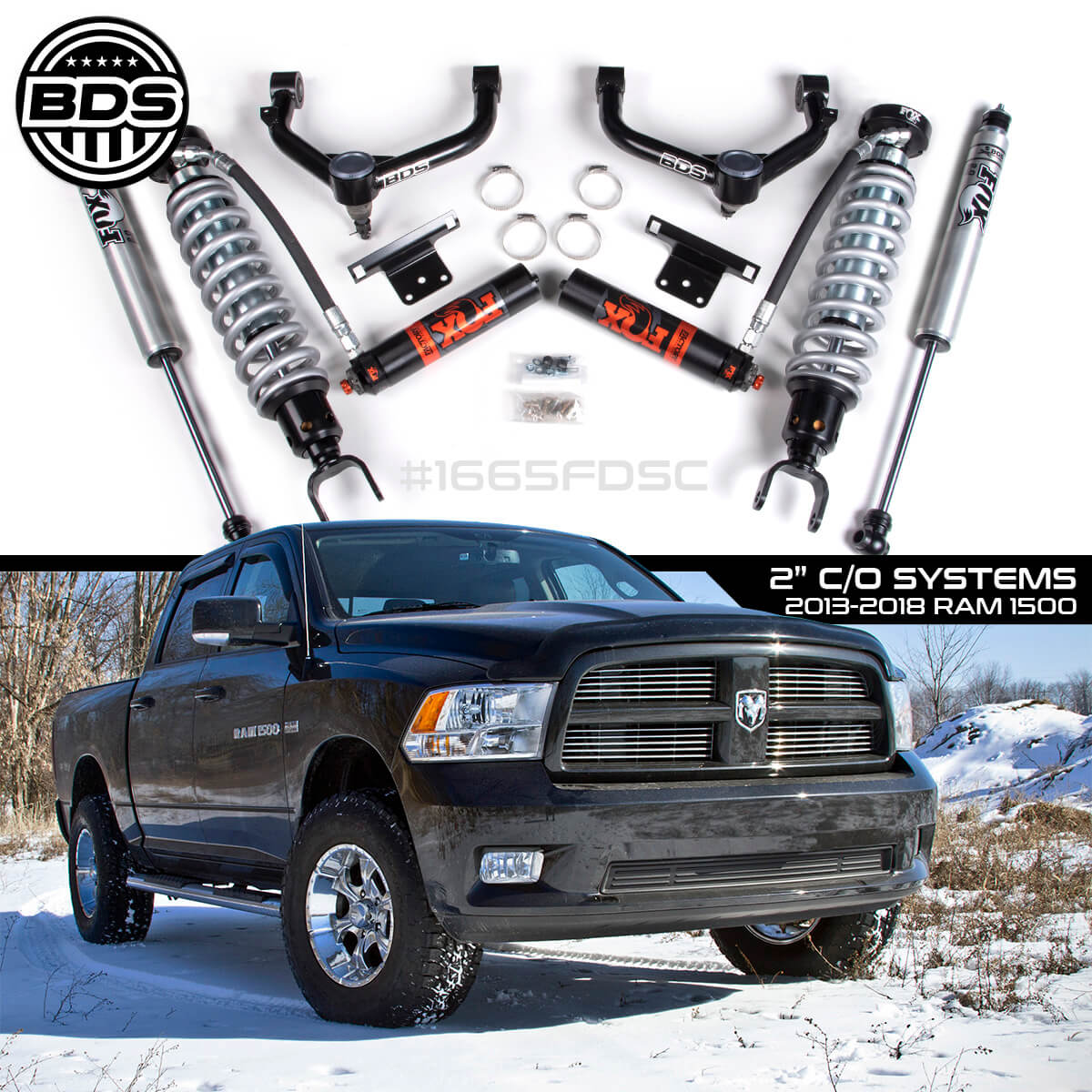

BDS1665FDSC – 2” Coilover Leveling Kit
(2.5 Factory Race Series DSC R/R Coilovers & 2.0 Performance Series IFP Rear Shocks)

BDS1696FDSC – 2” Coilover Leveling Kit
(2.5 Factory Race Series DSC R/R Coilovers & 2.5 Factory Series DSC R/R Rear Shocks)

Vehicle Fitment

2013- 2018 RAM 1500 4WD
*non air-ride

Features/Benefits:

  • FOX 2.5 factory series remote reservoir coilovers for next level performance on any terrain.
  • Coilovers feature DSC adjusters to dial in high speed and low-speed compression settings
  • Performance UCAs add strength and increase suspension travel
  • Increased right height and levels front/rear stance with clearance for 33" tires
  • Rear FOX 2.0 IFP or 2.5 piggyback shocks for improved performance

Rec'd Wheel/Tire Specs

33x12.50 Tires on 20x9 Wheels (5" BS)
33x12.50 Tires on 18x9 Wheels (5" BS)

Factory Protection Plus
  • 5-year, 100,000 mile drivetrain warranty
  • BDS’s exclusive No Fine Print Warranty

***Check the BDS website to verify details prior to ordering to ensure information is up-to-date with current manufacturer listings***

(1665FSL) These 2" Coilover Systems are designed to build on the stout factory front suspension design on the RAM 1500 trucks and take performance to the next level while leveling out the stance. At the heart of these 2" leveling kit are a pair of specially tuned FOX 2.0 performance race series coilovers. These non-reservoir coilovers are preset for the correct lift height right out of the box and use a threaded body to allow preload adjustment. They are a direct bolt-in replacement for the factory strut assemblies and improve damper performance featuring a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX’s proprietary internals, 5/8" hard chrome plated heat treated alloy shaft all preloaded with coil springs ready for easy installation.This kit takes performance for the next level by upgrading to FOX 2.0 performance series. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Built from thick wall 1.5" DOM tubing, these UCAs utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims.

In the rear of these lift systems the factory coil springs are retained to result in a level stance in no change in tow/load capacity. A pair of FOX 2.0 performance series IFP shocks are supplied to match the front performance.

(1665FDSC/1696FDSC) These 2" Coilover Systems are designed to build on the stout factory front suspension design on the RAM 1500 trucks and take performance to the next level while leveling out the stance. At the heart of these 2" leveling kit are a pair of specially tuned FOX 2.5 factory race series coilovers available with DSC (dual speed compression) adjusters. These coilovers are backed by FOX's racing pedigree, preset for the correct lift height right out of the box to provide optimal performance and direct bolt-in replacement for the factory strut assemblies. They feature a smooth bore and honed seamless alloy body, 7/8" hardened steel carbon shaft, Eibach coil springs and black anodized machined 6061-T6 billet aluminum mounts along with remove reservoirs with mounting brackets. The DSC reservoir allows for easy tool-free adjustment of high-speed and low-speed compression adjustment settings to further dial in the damping to the terrain and ride preferences. Also supplied for the front end are a pair of BDS performance upper control arms (UCAs) designed for improved strength and suspension travel. Built from thick wall 1.5" DOM tubing, these UCAs utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims.

In the rear of these lift systems the factory coil springs are retained to result in a level stance in no change in tow/load capacity. A pair of FOX 2.0 performance series IFP shocks (1665FDSC) or upgraded FOX 2.5 factory series DSC remote reservoir shocks (1696FDSC) are supplied to match the front performance.

All BDS kits include Factory Protection Plus for the ultimate extended warranty to include BDS’s No Fine Print Warranty, ESC System compatibility and a 5year-100,000 mile drivetrain warranty to match the dealer. Improve the look and capability of your RAM 1500 truck with these new 2" coilover leveling systems from BDS Suspension.
