BDS ups the ante with new 3.5" DSC Coilover Systems for the 2019-2020 Ford Ranger. These systems build on the current 3.5" (2.0) coilover option with the new FOX 2.5 Performance Elite Series DSC coilovers and shocks for next level level offroad performance, capability and tunable ride quality. These new 3.5” coilover systems are deisgned to utilize the factory suspension mounting points to offer improved ground clearance and wheel travel with room for 33-34" tires. In the rear your choice of FOX 2.0 IFP or 2.5 DSC shocks. As with all BDS lift kits, these new kits are backed by Factory Protection Plus for piece of mind wherever your adventures may take you. Factory Protection Plus includes BDS’s exclusive No Fine Print Warranty, ESC system compatibility and a 5-year 60,000-mile drivetrain warranty.

Product Description

3.5" DSC Coilover System

Install Time/Difficulty

4 Hours / 3 of 5

Rec'd Wheel/Tire Specs

275/65r20 Tires on 20x9 Wheels (6.18" BS)
285/60r18 Tires on 18x9 Wheels (5.5-5.75" BS)
305/55r20 Tires on 20x9 Wheels (5" BS)

Factory Protection Plus
  • 5-year, 60,000 mile drivetrain Warranty
  • BDS’s exclusive No Fine Print Warranty

***Check the BDS website to verify details prior to ordering to ensure information is up-to-date with current manufacturer listings***

Product Info

1545FDSC - 3.5" DSC Coilover System w/ FOX 2.0 IFP Rear Shocks

1587FDSC - 3.5" DSC Coilover System w/ FOX 2.5 DSC Rear Shocks


  • FOX 2.5 performance elite series DSC remote reservoir coilovers for next level performance on any terrain and easy adjustment.
  • Performance UCAs add strength and increase droop travel.
  • Increased ride height and levels front/rear stance with room for 33-34” tires.
  • All components come ready to install right out of the box, no setup or tuning needed.
  • Differential relocation to correct CV operating angle.
  • Front fender intrusion beams to optimize clearance for larger tires.
  • Rear HD shackle kit improves travel and levels stance.
  • Available with either rear FOX 2.0 performance series IFP or FOX 2.5 performance elite series piggyback DSC shocks to match the front performance.

Coldwater, MI: BDS Suspension raises the bar with new 3.5” DSC Coilover Lift Systems designed to take advantage of the stout factory front suspension design on the 2019-2020 Ford Ranger. At the heart of these 3.5" DSC coilover systems are a pair with the new aluminum-bodied FOX 2.5 performance elite series coilovers. These coilovers are preset for the correct lift height right out of the box and use a threaded body to allow preload adjustment. They are a direct bolt-in replacement for the factory strut assemblies and improve damper performance featuring a 2.5" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with 7/8" hardened steel carbon shaft, Eibach coil springs and black anodized machined 6061-T6 billet aluminum mounts along with remote reservoirs with mounting brackets. The DSC (dual speed compression) reservoir allows for easy tool-free adjustment of high-speed and low-speed compression adjustment settings to further dial in the damping to the terrain and ride preferences. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Built from thick wall 1.5” DOM tubing, these UCAs utilize an indexed ball joint cup to reposition the upper ball joints and allowing more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims. Finishing out the front of these 3.5” systems are fully fabricated differential relocation brackets to correct CV axle operating angles.

In the rear of these lift systems the factory leaf springs are retained and 1” lift comes from a heavy duty replacement shackle. These shackles are built from high strength 3/8” steel and have the benefit of leveling the stance, correcting rear pinion angle and allowing for increased rear suspension travel. Also supplied for the rear of these 3.5” lift kits are a pair. Also supplied for the rear of these 3.5” lift kits are your choice of FOX 2.0 performance series IFP shocks or upgraded FOX 2.5 factory series DSC adjustable shocks to match the front performance and adjustability. These kits come finished in a durable black powdercoat finish and sent with all hardware packs to complete the install along with step-by-step installation instructions.

All BDS kits include Factory Protection Plus for the ultimate extended warranty to include BDS’s No Fine Print Warranty, ESC System compatibility and a 5year-60,000mile drivetrain warranty to match the dealer. Improve the look and capability of your 2019-2020 Ford Ranger with these new 3.5” coilover lift systems from BDS Suspension.

Media Gallery

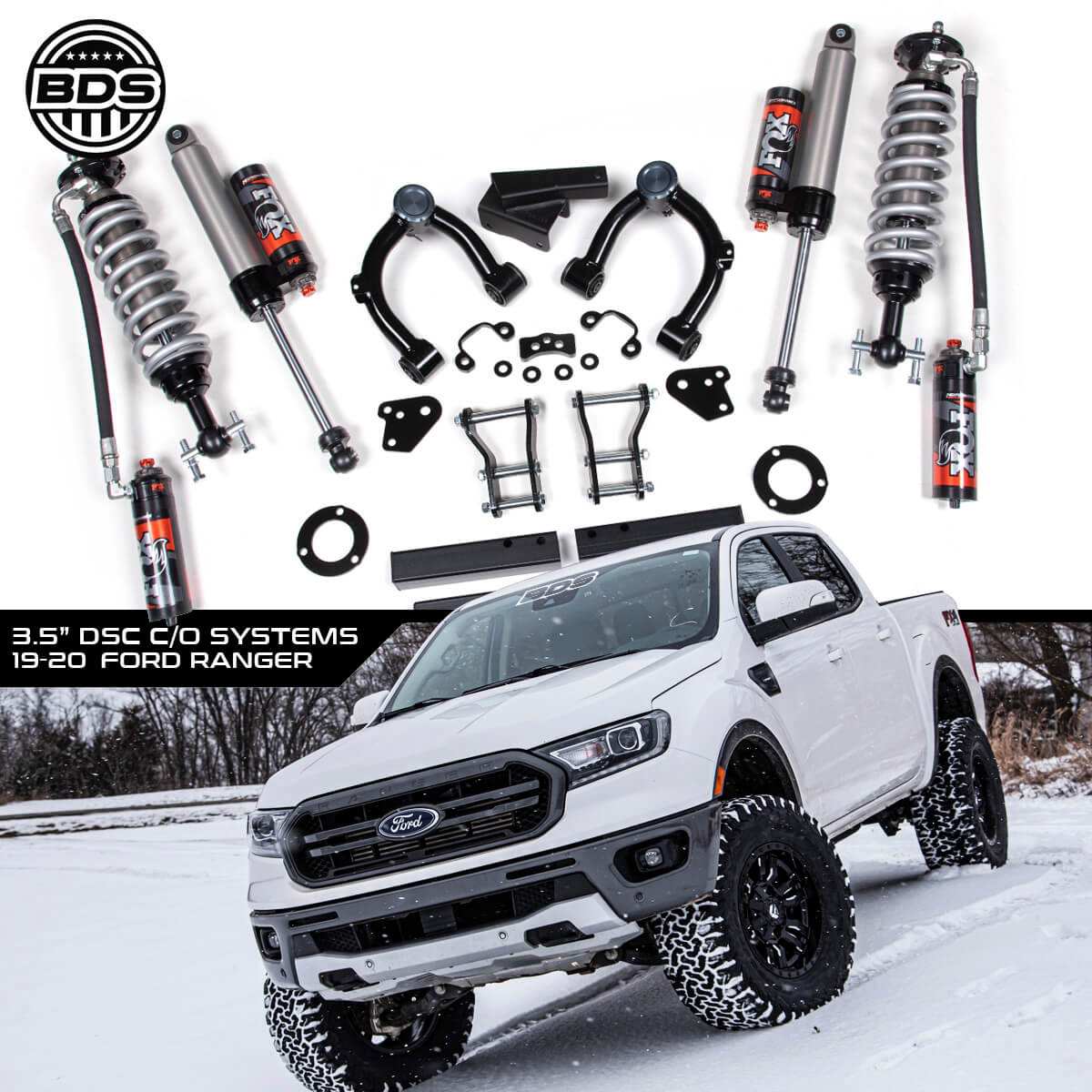

3.5" DSC C/O Kit (Rear 2.0s)

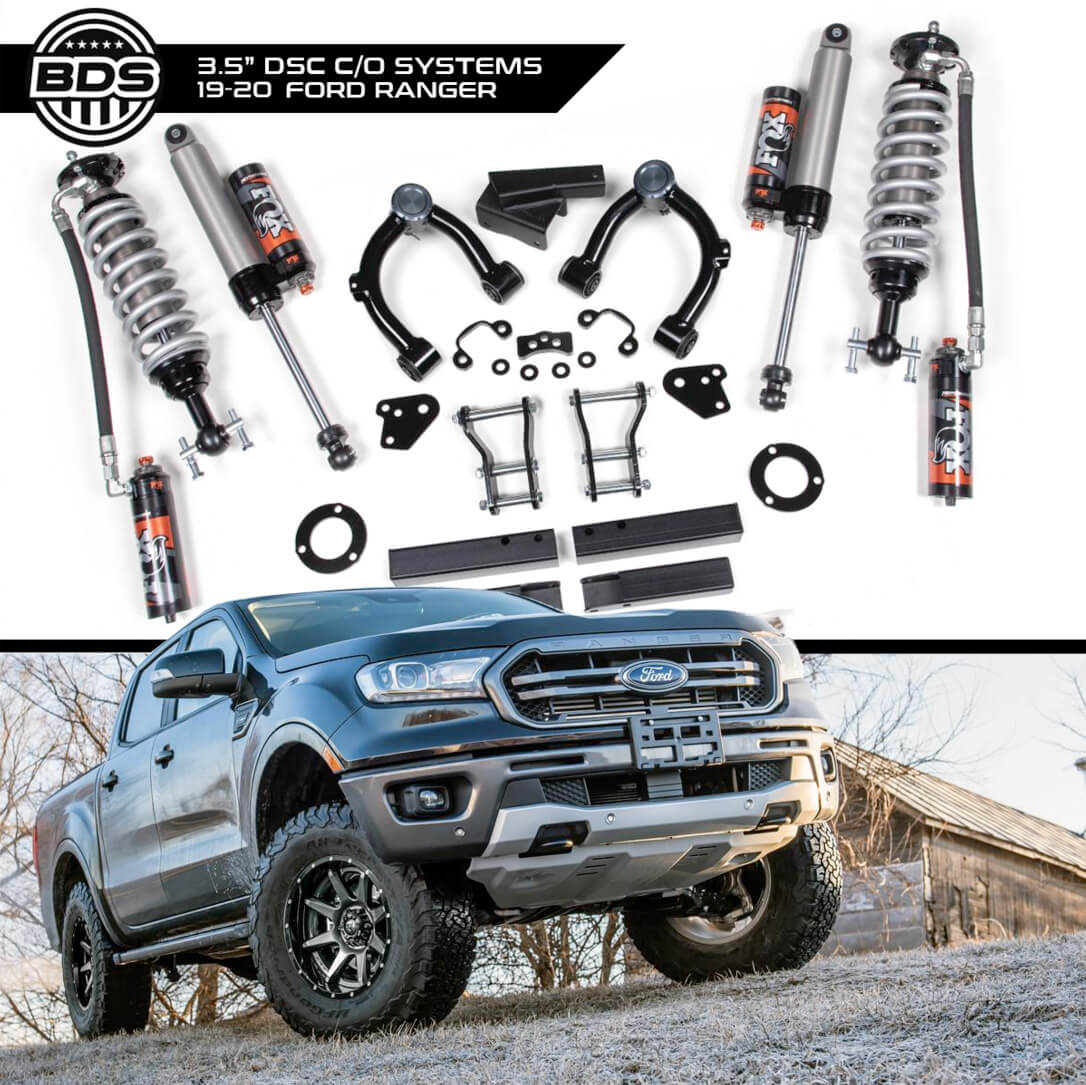

3.5" DSC C/O Kit (Rear 2.5s)



3.5" DSC C/O Kit (Rear 2.5s)
