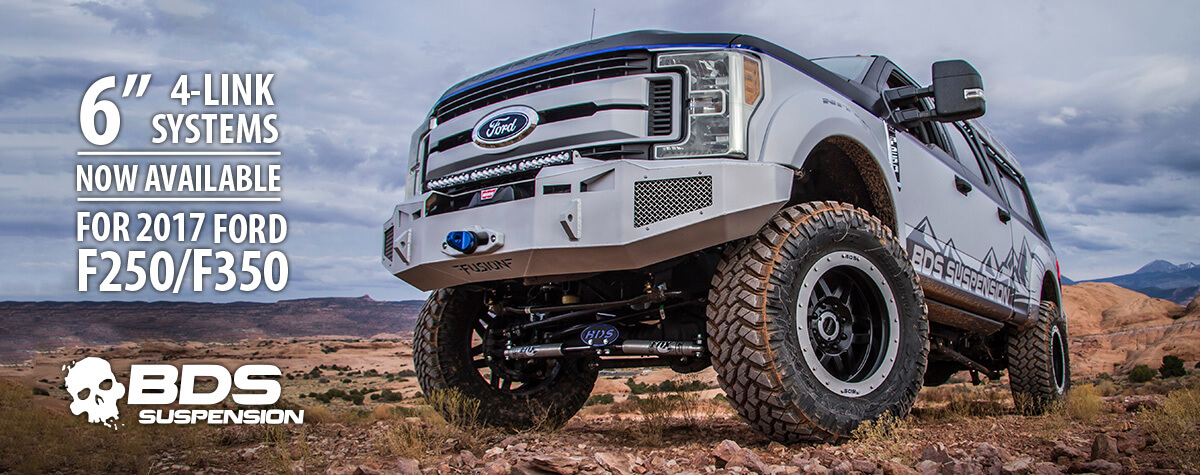

PR276

6" 4-link lift system expands BDS Suspension's offerings for the 2017-2019 Ford F250 and F350 Super Duty 4wd trucks to join the existing 1", 2" and 4" suspension lift options. Designed to improve offroad performance and tire size fitment, these new 6" lift options maintaining on-road ride quality, handling, and comfort with room for 38" tires. As with all BDS lift kits, these 6" lift kits are backed by Factory Protection Plus for peace of mind wherever your adventures may take you. Factory Protection Plus includes BDS’s exclusive No Fine Print Warranty along with a 5-year, 60,000-mile drivetrain warranty. Get the lift and the look you are after with these new 6" 4-link lift kits from BDS Suspension.  -- NPR# 276

Product Description

6" 4-Link Suspension Systems

6'' 4-Link Kit Features

  • Full length coil springs for smooth ride
  • Pitman arm/trackbar bracket for steering correction
  • 4-link conversion for improved strength/performance
  • BDS NX2 or FOX 2.0 shocks available with kit
  • Allows fitment of 38" tires

Vehicle Fitment

2017-2019 Ford F250 Super Duty 4WD
2017-2019 Ford F350 Super Duty 4WD (SRW)
2017-2019 Ford F350 Super Duty 4WD (DRW)
*gas and diesel trucks

Kit Info

Diesel Trucks
#1527H (6" 4-Link Kit, Block/AAL - OE 2leaf main) - $2454.80
#1528H (6" 4-Link Kit, Block Kit for OE 3leaf main) - $2314.20
#1529H (6" 4-Link Kit - Replacement leaf spring) - $3155.18

Gas Trucks
#1534H (6" 4-Link Kit, Block/AAL - OE 2leaf main) - $2458.01
#1535H (6" 4-Link Kit, Block Kit for OE 3leaf main) - $2317.41
#1536H (6" 4-Link Kit - Replacement leaf spring) - $3153.11

Rec'd Max Wheel/Tire Specs

38x13.50 Tires on 17x9/18x9/20x9 wheels (4.5-5" BSing)
38x13.50 Tires on 17x10/18x10/20x10 wheels (5" BSing)
*Other wheel/tire combos can be used, but additional trimming to the front lower valance and/or inner fender may be needed.

Available Accessories

#98224750 - Front FOX 2.0 Performance Shocks
#98224760 - Rear FOX 2.0 Performance Shocks
#123402 - Carrier Bearing Drop Kit
#123417/123409 - RECOIL Traction Bars
*additional accessories available soon

***Check BDS website or BDS sales to verify details prior to ordering parts to ensure accuracy with current listings ***

Factory Protection Plus
  • 5-year, 60,000 mile drivetrain Warranty
  • BDS’s exclusive No Fine Print Warranty
2017 Ford F250 - 6" BDS 4-Link Lift Kit
2017 Ford F250 - 6" BDS 4-Link Lift Kit
2017 Ford F250 - 6" BDS 4-Link Lift Kit
2017 Ford F250 - 6" BDS 4-Link Lift Kit
2017 Ford F250 - 6" BDS 4-Link Lift Kit

View High-Res Truck Photo

Vehicle Specs: 6" 4-Link System
38x13.50 Tires, 20x10 Wheels

BDS 6" 4-Link Lift Kits | 2017-2019 Ford F250 and F350 Super Duty - New Product Release #276: After months of anticipation following the 2016 SEMA Show, BDS Suspension is excited to announce the 6" 4-link suspension options are now available for the redesigned 2017 Ford Super Duty trucks. The engineers at BDS have taken the utmost care to design, test and manufacturer the best possible setup for the new Super Duty which is evident when you put a BDS 6" 4-link equipped Super Duty through its paces on the highway and out on the trail.

At the heart of these new 6" systems is a heavy duty 4-link control arm conversion to upgrade the factory stamped steel radius arms for improved strength, handling, and caster control. This new setup is based off the tried and true 4-link setup from '05-16 Super Duty kits, now designed to key off the factory frame bracket (no need to remove factory bracket) along with tying into the frame rail and transmission crossmember for an extremely rigid control arm mount. The brackets are build from high strength 1/4" steel, come fully welded and finished in a durable textured black powdercoat with riveted BDS nameplates.  The upper and lower control arms are built from heavy wall 2" OD DOM steel tubing with massive 2-1/2" greaseable  frame mount bushings and reinforced clevis mounts to attach at the axle.

The extra ride height comes from a pair of 6" ProRide coil springs designed specifically for the weight of the diesel or gas engine equipped trucks for a smooth ride paired with your choice of specially tuned BDS NX2 series gas shocks or the premium FOX 2.0 IFP performance gas shocks. For steering correction a forged drop pitman arm and heavy duty track bar relocation bracket are supplied. This brings the drag link angle closer to factory and keeps the steering angles in line with the relocated track bar for improved drivability and a re-centered front axle. Also supplied for the front are bump stop extensions to limit suspension compression, sway bar drop brackets to correct the sway bar positioning, and brake line relocation brackets to allow the use of the factory brake lines to speed up installation.

The 2017 models use a new front driveline design that requires correction at 6" of lift and above to allow for use of 4WD at any speed. To do this BDS supplies a high strength transfer case indexing ring to rotate the front output of the transfer case down to improve the front driveline operating angle. The indexing ring uses ARP studs and includes new mounting hardware. Also supplied is a heavy duty replacement transmission crossmember to allow additional clearance.

In the rear of these 6" systems BDS offers multiple lift options for both the OE 2-leaf main spring pack and OE 3-leaf main spring pack  equipped trucks. The first option is a 6" replacement block and u-bolt kit for the 3-leaf trucks. The blocks are built from high strength, fully boxed steel with an integrated bump stop wing. Both the blocks and u-bolts are finished in a durable black e-coat finish. In addition to the block kit, the 2-leaf trucks receive an add-a-leaf to level the stance. The second option for the rear are full replacement BDS Glideride leaf springs to provide the lift needed to level the stance. These springs are a 4-leaf design with integrated overload leaf for extra load capacity. They come fully assembled with bushings installed for ease installation and a smooth ride on and off-road. Finishing off the rear of this kit are a pair of matching NX2 or FOX 2.0 gas shocks to compliment the front setup for all around impressive performance.  These new 6" 4-link systems allow for clearance of up to 38" tires. Take your 2017 Super Duty to the next level with BDS Suspension.

© BDS Suspension, 491 W. Garfield Ave. Coldwater, MI 49036
(517) 279-2135 | bds-suspension.com | sales-bds@ridefox.com

5 Comments on “6″ 4-Link Lift Kit | 2017-2019 Super Duty | NPA #280
  • Eric Dorn says:

    Hey guys just did this to my truck and LOVE IT! With the 22×12 et-44 I did have to space bumper 1″ and trim rear inner clip a bit no big deal. LOVE the kit, bit stiff (I have the Fox 2.0) ride but great lift my only question is steeering. The wheel “wanders” a bit and feels like bump steer almost. Is the single Fox steering kit just not enough? Would a dual kit help? It’s not bad trust me but towing my 36′ race trailer thru Shasta and such I just want a bit less feedback. Any insight is appreciated. Great 4link kit guys ????

    Reply
    • Carter @ BDS Suspension says:

      Hey Eric,
      Thanks for reaching out, be sure to post some shots of your truck (in an offroad/off-pavement setting) along with the specs through our Facebook page so we can get it featured. On your question about steering stabilizer options… Oversized tires, especially wider tire/wheel setups have more potential to wander on the road and cause front end shimmy. We include an OE replacement BDS-NX2 steering stabilizer in our kits which is sufficient in most cases. In some situations a dual steering stabilizer kit is needed to eliminate all front end shimmy as it can exert more force to control the front end. At this point we haven’t released the dual FOX steering stabilizer kits for the 2017 models, but they are in the works. Our dual stabilizer kits for the ’05-16 Super Duty models will work on the 2017, but due to the stiffer factory steering on the 2017s we’re revalving the stabilizers used for the new models and plan to have kits available soon. For more on the topic contact our sales team at (517) 279-2135 or sales-bds@sporttruckusainc.com

      Reply
  • Josh says:

    Hello – just had a 4″ kit installed at a local shop here in Austin Texas and look outstanding. Did go with the dual Fox Stabilizer kit but have a wandering wheel and pull to the right. My shop is telling me there is no fix. I doubt that with a 2017 and 10 miles on it. Please advise.

    Reply
    • Carter @ BDS Suspension says:

      Hey Josh, thanks for reaching out. You shouldn’t have an issue with the truck wandering/pulling, my first thought is an alignment issue. That said our customer service team is better suited to offer guidance and get your truck squared away. You can reach them at (517) 279-2135 or

      Reply
  • Jason says:

    I’m guessing everyone that’s complaining about steering issues has adaptive steering?
    I to have the same issue after a BDS 4″ on my 2017 F250. Steering stabilizers will not fix it. I’m still working on a fix. After calibration of the adaptive steering and returning the truck to factory control arms and a fox ats and duel steering stabilizers I have the truck bearable to drive. Still not perfect. If planning on lifting a 2017, I recommend no getting the adaptive steering option.

    Reply
