The all new 2019 RAM 1500 trucks bring even more refinement to the RAM lineup. Along with the redesigned body and interior the chassis and suspension has been updated from previous model year trucks. After months of design, testing and American manufacturing BDS Suspension is excited to announce the release the first of many new kits for the new RAM with 6” IFS Lift Systems for the 2019 RAM 1500 4WD trucks. These new systems are built to the highest quality standards for on-road comfort and handling, while improving offroad capability with clearance for 35-37” tires. As with all BDS lift kits, these new kits are backed by Factory Protection Plus for piece of mind wherever your adventures may take you. Factory Protection Plus includes BDS’s exclusive No Fine Print Warranty, ESC system compatibility and a 5-year 100,000-mile drivetrain warranty.
6” IFS Lift Systems
for the 2019 RAM 1500
2019 RAM 1500 4WD*
2019 RAM 1500 Rebel 4WD*
#98224751 - FOX 2.0 Rear Shock
#122251 - Performance UCA Kit
#1637H - 6” IFS System w/ NX2 - $1925.17
#1637FS - 6” IFS System w/ FOX - $2076.07
- Corrects suspension, steering, & driveline geometry
- High clearance crossmembers and diff skid designed to maximize ground clearance and offer protection
- Ductile iron steering knuckles for strength and ESC system compatibility
- Differential relocation brackets to correct CV angles
- Top mounted strut spacer retains factory ride quality
- Allows fitment of up to 37" tires
Rec'd Max Wheel/Tire Specs
37x12.50 Tires on 17x9 Wheels (4.5” BS)
37x12.50 Tires on 18x9/20x9 Wheels (4.5-5” BS)
*other sizes can be used, trimming may be necessary
** Prior to ordering, verify listings with BDS sales team to ensure listings are up to date **

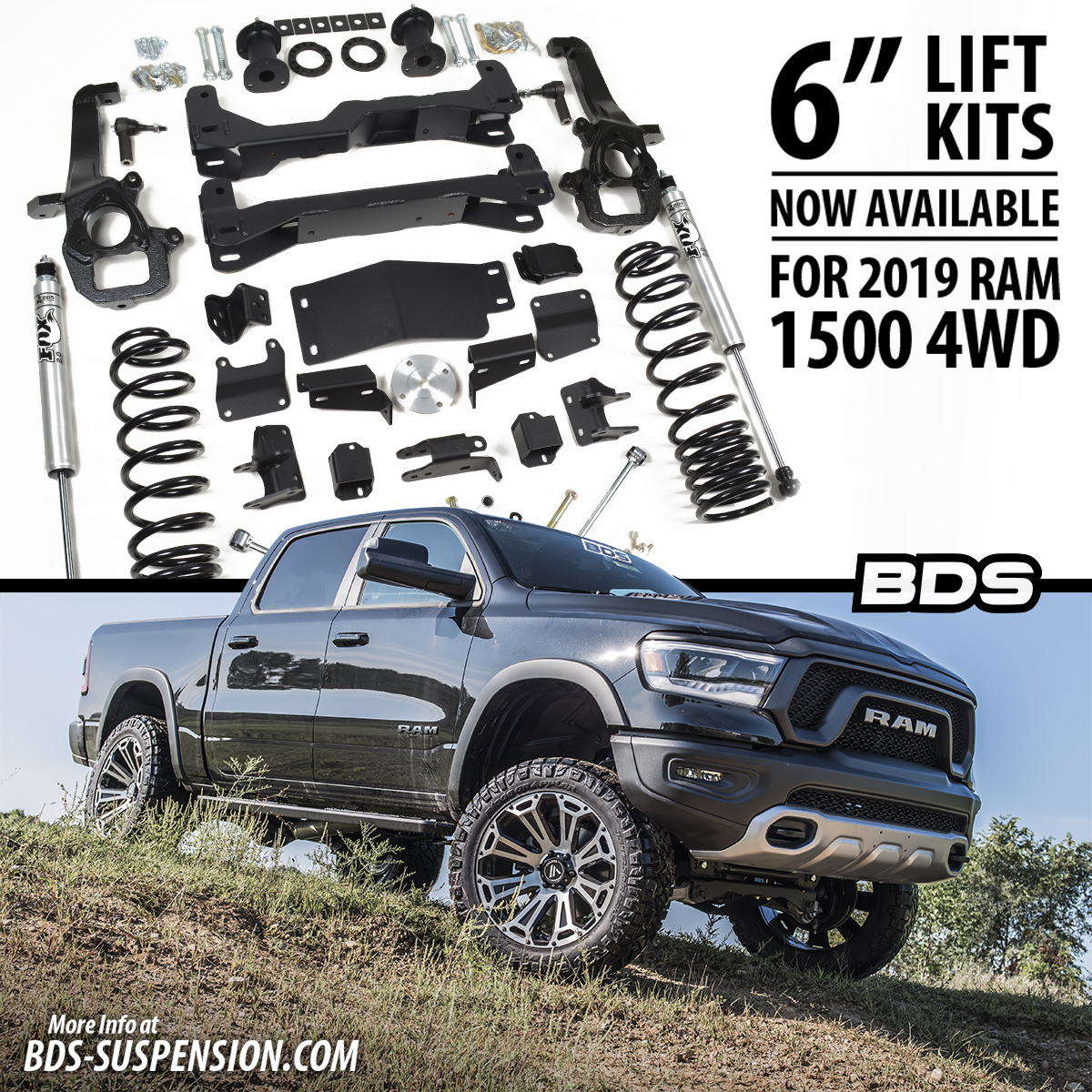

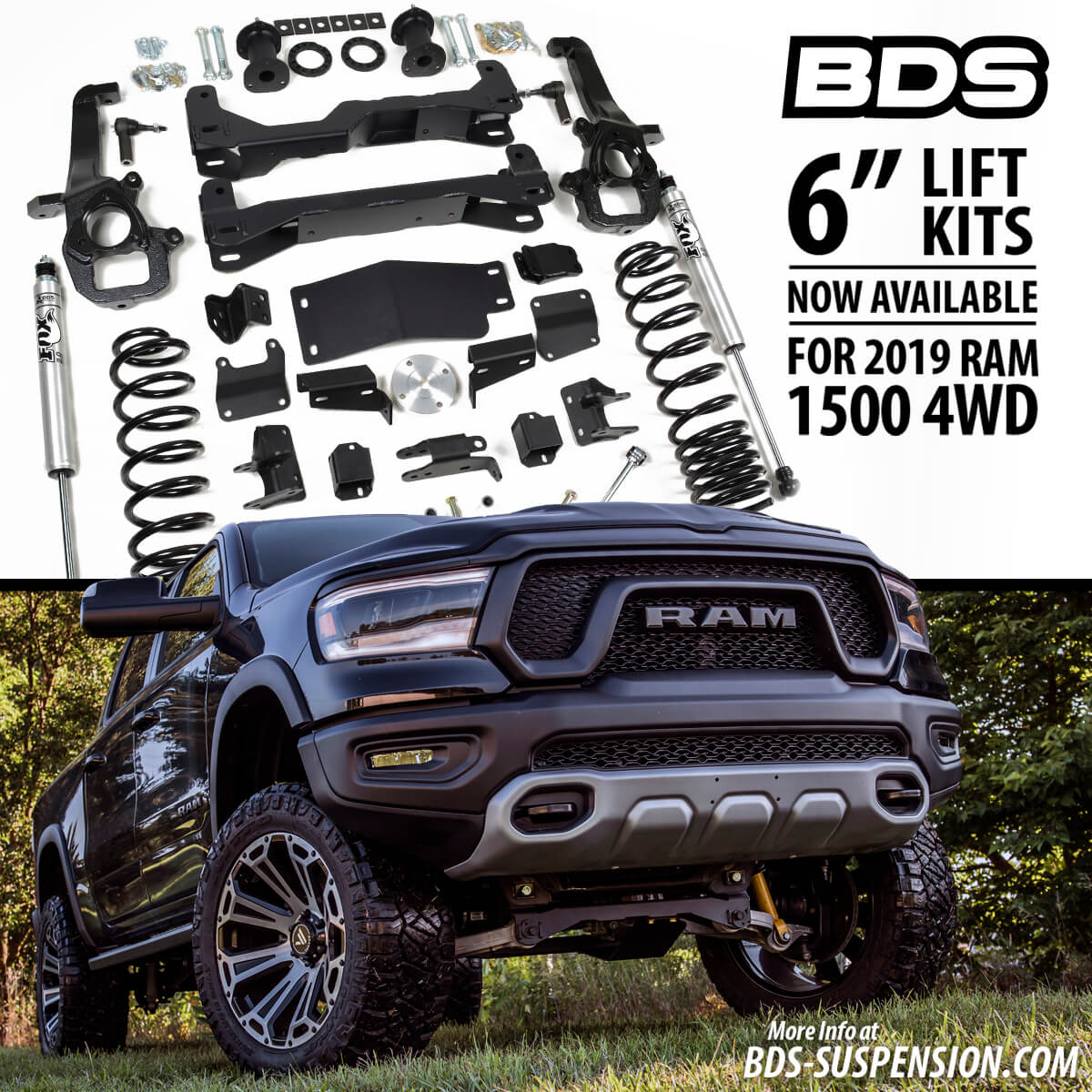

BDS 6" RAM 1500 Lift Systems: With an all new truck comes an all new suspension. Now available for the 2019 model year RAM 1500 4WD trucks BDS Suspension has released new 6” IFS lift systems. Based around the tried and true high clearance technology that has made BDS the go to for RAM suspension lifts, these systems have been designed from the ground up to get more out of your new RAM. This new 6” lift system is the first of many new BDS options to come available for the new trucks bringing you on road comfort, off-road capability and clearance for 35-37” tires.
At the heart of this new 6” system BDS utilizes a pair of 1/4" thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with the heavy duty front skid plate system create a rigid subframe while adding protection for vital steering and driveline components. In place of the factory steering knuckles a pair of specially designed ductile iron replacement steering knuckles are supplied to maintain proper steering geometry for ESC system compatibility. These connect to the factory steering with a pair of heavy duty replacement tie rod ends included in the kit. The front differential is repositioned with BDS’s multipoint relocation bracket system to secure the front differential and keep CV axle angles at a minimum. A billet aluminum front driveshaft spacer is also supplied along with longer hardware to allow the reinstallation of the factory driveshaft. Additional ride height on this particular kit comes from a set of top mounted steel fabricated strut spacers along with a preload spacers to maintain ride quality and handling characteristics. Rounding out the front of this kit are a pair of stainless steel braided extended brake line and sway bar relocation brackets.
In the rear of this 6” lift system the factory coil springs are replaced with 5” ProRide dual rate coil springs to lift and level the stance. With the additional ride height the rear suspension geometry is corrected with control arm relocation brackets, a bolt-on rear track bar relocation bracket to recenter the axle, extended length sway bar links to correct operating angle, and bump stop extensions to properly limit up travel. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance. All kits come finished in a durable textured black powdercoat and sent with all hardware packs to complete the install along with step-by-step installation instructions. All BDS kits include Factory Protection Plus for the ultimate extended warranty to include BDS’s No Fine Print Warranty, ESC System compatibility and a 5year-100mile drivetrain warranty to match the dealer. Improve the look and capability of your 2019 RAM 1500 truck with this new 6” lift system from BDS Suspension.
