BDS Suspension adds to its suspension lineup with new 2.5" radius arm systems for the 2020 Ford Super Duty. Available with coil springs or coilover conversion, these 2.5" radius arm systems are designed to improve appearance, strength, and performance with clearance for 35" tires. Based off the widely popular 2.5" radius arm systems for the 2011-2019 Ford Super Duty, these new 2020 compatible kits include your choice of Proride coil springs or FOX 2.5 RR coilovers, heavy duty tubular radius arms, an adjustable track bar and more. As with all kits these new 2.5" radius arm systems for the Ford Super Duty are backed by Factory Protection Plus offering you peace of mind out on the trail or wherever your next adventures lead you. This includes a BDS No Fine Print Warranty and a 5year-60,000mile drivetrain warranty.

Product Description

2.5" Radius Arm Lift Systems
for 2020 Ford Super Duty

Vehicle Fitment

2020 Ford F250 Super Duty 4WD Diesel
2020 Ford F350 Super Duty 4WD Diesel SRW/DRW


  • ProRide coil springs or FOX 2.5 RR coilovers for improved performance and ride quality
  • Heavy duty radius arms for improved strength and caster correction
  • High strength adjustable track bar to recenter front axle
  • Includes BDS NX2 gas or FOX 2.0 IFP shocks
  • Lifts and levels the vehicle stance
  • Allows clearance for up to 35" tires

Product Info

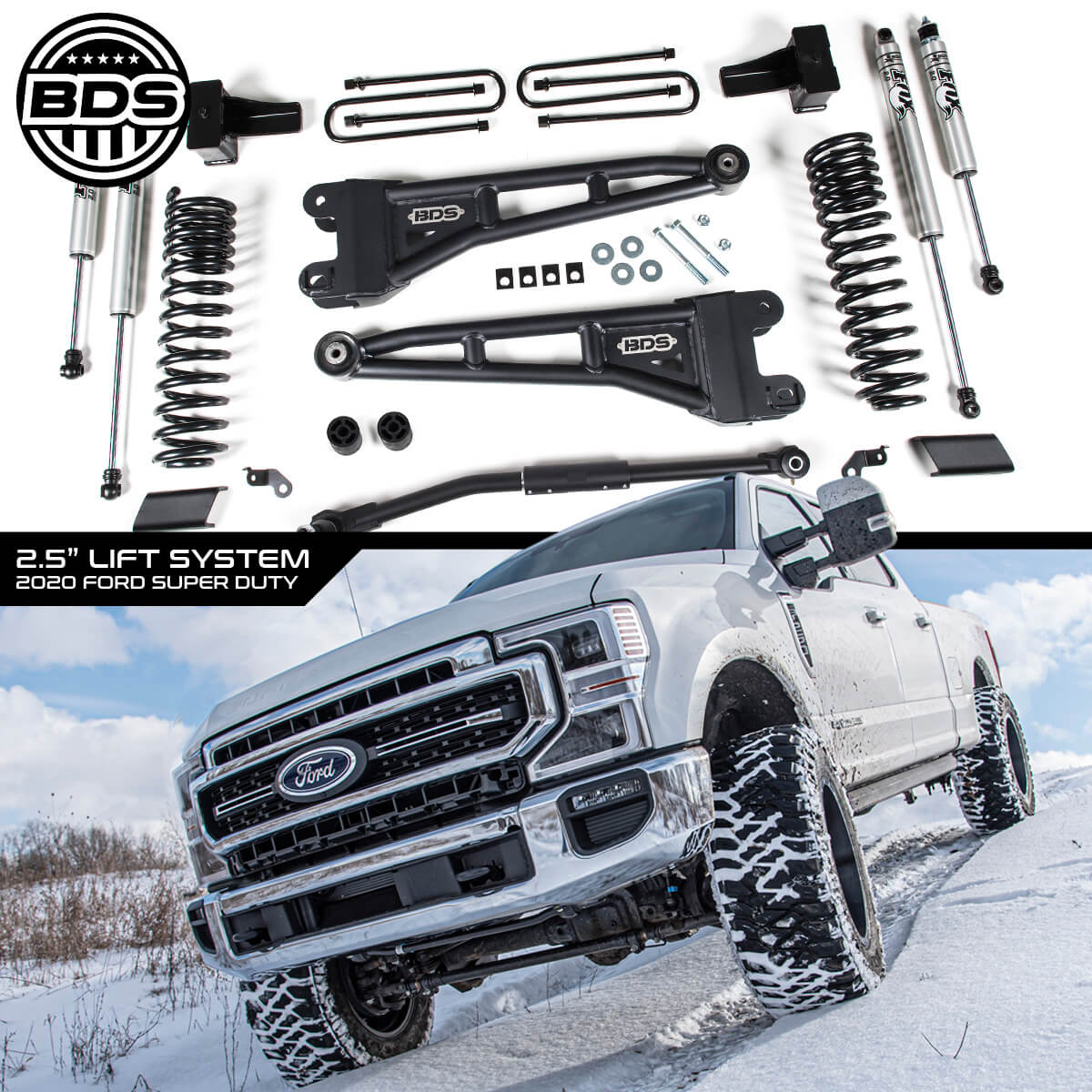

#1549H - 2.5" Radius Arm System w/ NX2 Shocks
#1549FS - 2.5" Radius Arm System w/ FOX 2.0 Shocks

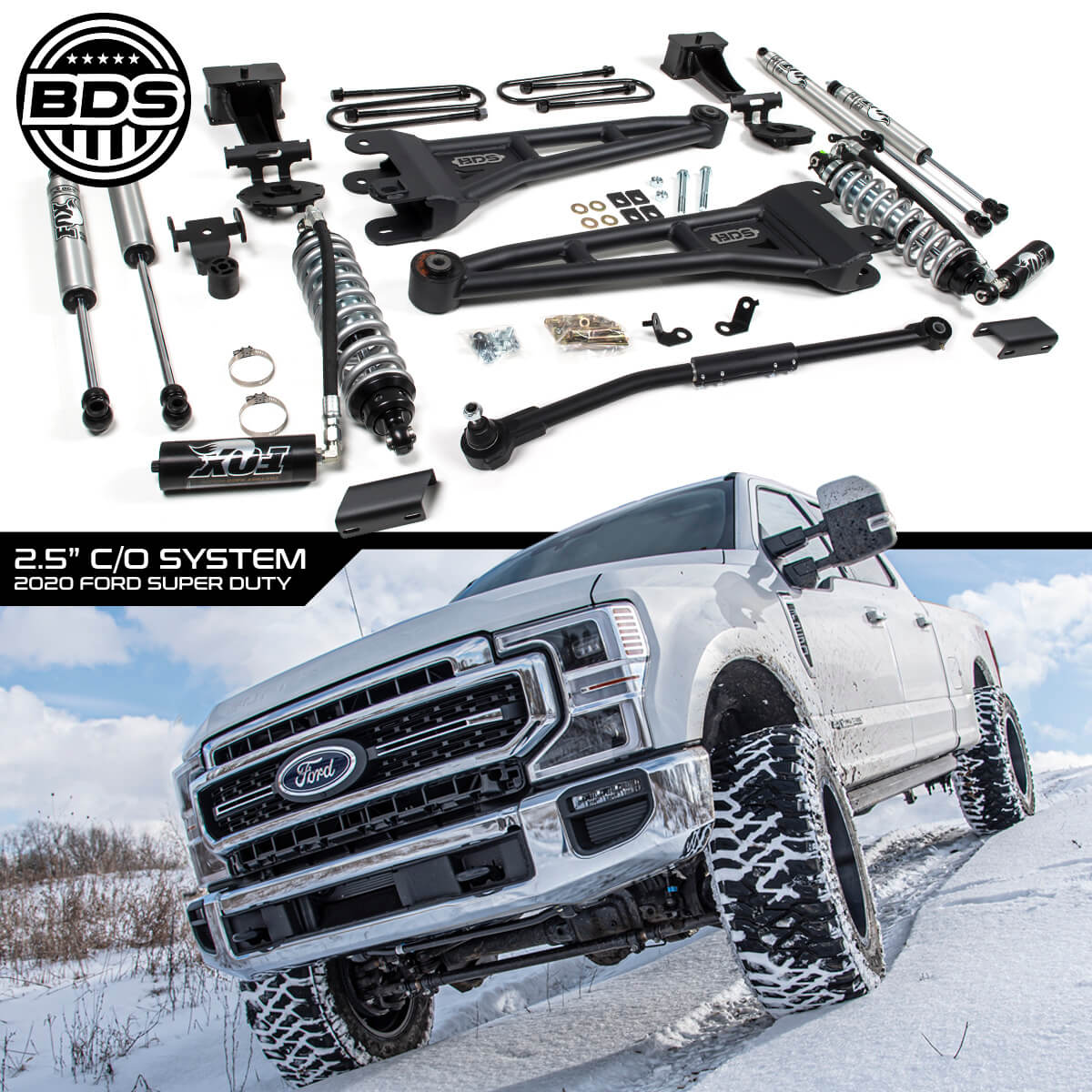

#1549F - 2.5" Radius Arm Lift System w/ FOX 2.5 RR Coilovers

Related Kits/Products

#1550H/1551H - 4" Radius Arm System for 2020 Super Duty (gas/diesel)
#1551F - 4" Radius Arm Coilover System for 2020 Super Duty (diesel)

Available Accessories

#55380 & #85429 (x2) - NX2 Dual Steering Stabilizer Kit
#55380 & #98224010 (x2) - FOX Dual Steering Stabilizer Kit
#123416 & #123409 - Recoil Traction Bar Kit - 3.5-4" axle tube
#123426 & #123409 - Recoil Traction Bar Kit - 4.5" axle tube

Rec'd Wheel/Tire Specs

35x12.50 Tires on 17x9/18x9/20x9 Wheels with 4.5-5" BS

Install Time/Difficulty

5 Hours / 3 of 5

Factory Protection Plus
  • 5-year, 60,000 mile drivetrain Warranty
  • BDS’s exclusive No Fine Print Warranty

***Check the BDS website to verify details prior to ordering to ensure information is up-to-date with current manufacturer listings***

Coldwater, MI: BDS Suspension is now offering 2.5" radius arm lift systems for the 2020 Ford Super Duty. Available with full length ProRide coil springs or FOX 2.5 factory series remote reservoir coilovers, these 2.5" radius arm systems are designed to improve the stance of your Super Duty while taking performance, capability and ride quality to the next level with clearance for 35" tires. The coilovers option offers vastly superior damping capability to soak up the harshest terrains offroad while offering comfort for your daily commute. They feature a smooth bore and honed seamless alloy body, 7/8" hardened stainless steel shaft, black anodized machined 6061-T6 billet aluminum mounts and remote reservoir and come fully assembled with FOX coil springs. These coilovers are pretuned for optimal performance and preset for 2.5" of lift right out of the box with the weight of the 6.7L Powerstroke diesel engine. They install easily using the supplied bolt-on frame and axle mounting brackets.

In place of the factory stamped steel arms this kit upgrades to heavy duty BDS radius arms. These brawny arms are built from 1-3/4" OD heavy wall tubing, fully welded with gussets for superior strength to the factory units light weight stamped steel units they are replacing. The heavy wall tubular construction improves strength while correcting caster with a lower cam slot. At the frame mount a large OE-style rubber bushing is used to better isolate of NHVs and allow for quiet operation without any need for maintenance. These bushings offer superior durability and quieter operation than arms with heims and flex joints. Also upgraded as part of these new 2.5" lift systems is a high strength replacement track bar designed to recenter the front axle with the lift installed. This new track bar is adjustable, built from 1-3/8" solid steel stock with gusseted ends and a fine thread center turnbuckle with pinch bolts. The track bar comes pre-assembled and ready to bolt into the factory location to adjust to length. At one end these use a greaseable, high-durometer polyurethane bushing and the other end a heavy duty ball joint. This setup offer strength, comfort and quiet operation over track bars that use heims. Rounding out the front of these kits are front brake line relocation brackets to allow enough slack in the lines to cycle the suspension offroad while the sway bar relocation brackets to correct sway bar operating angle for optimal performance without sacrificing approach angle.

In the rear, these kits use a slightly taller 4" replacement lift block and new black e-coated u-bolts to net a level stance without the need to stack blocks to do it. The block integrates a bump stop wing to correctly limit suspension up travel and allow you to retain the factory rear springs to maintain tow capacity. Finishing out the rear are a pair of NX2 or FOX 2.0 performance series gas shocks to compliment the front performance. Take your new Super Duty to the next level these new 2.5" radius arm systems from BDS Suspension.

Media Gallery

© BDS Suspension, 491 W. Garfield Ave. Coldwater, MI 49036
(517) 279-2135 | |

2 Comments on “2.5″ Radius Arm Lift Systems | 2020 Ford Super Duty | NPA #380
  • Anthony Pace says:

    Hi, I have a new 2020 F350 Super Duty arriving soon and I’m looking at your BDS Kit 2.5″ 549F. My question – I plan on putting 37″x12.5″ tire w/ 20″X 9″ wheel.
    Is that possible with this kit? If not what do you suggest. This vehicle will be used This vehicle will be used 70% on road/Towing 8K boat and 30% flat dirt trails.

    Thank you

    • Carter @ BDS Suspension says:

      Hey Anthony, our tire/wheel recommendations are just that, recommendations, based on the specs we’ve tested and confirmed to fit. While we’ve heard customers squeezing 37s on with just the 2.5″ lift, ultimately it will likely require some trimming to clear in all driving conditions (on and off-road use). The other factor will be the backspacing of the wheels used, a larger backspacing of measurement around 5″ will help limit the amount of trimming needed once installed.
