BDS Suspension expands its lineup of suspension lift kit offerings for 2013-2018 RAM 3500 with new 4" radius arm lift kits. Designed to improve off-road performance and tire size fitment, these new lift options maintain on-road ride quality, comfort, and handling characteristics. These kits join the existing standard and 4-link conversion lift kits to offer optimal clearance and predictable handling at the 4" lift height when hitting the trail. As with all BDS lift kits, these lift kits are backed by Factory Protection Plus for peace of mind wherever your adventures may take you. Factory Protection Plus includes BDS’s exclusive No Fine Print Warranty along with a 5-year, 60,000-mile drivetrain warranty. Get more from your Super Duty with BDS.
Product

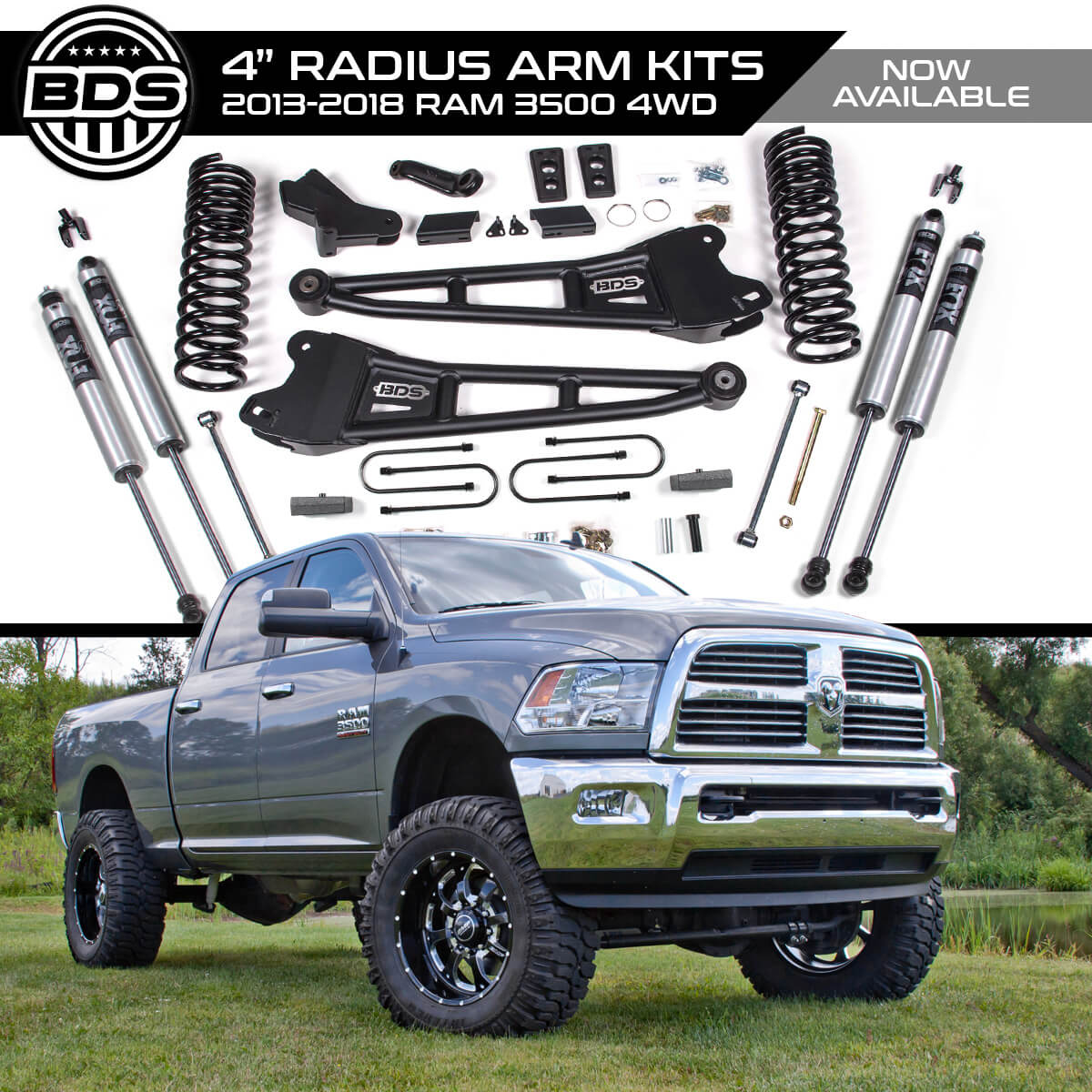

4" Radius Arm Kits for 13-18 RAM 3500
Vehicle Fitment
2013-2018 RAM 3500 4WD SRW
2013-2018 RAM 3500 4WD DRW
*diesel and gas models
* w/ and w/o rear air bag
Rec'd Wheel/Tire
37x12.50 Tires on
17x9/20x9 Wheels (5.625" BS)
35x12.50 Tires on
17x9/20x9 Wheels (4.5" BS)
- 5-year, 100K-mile Drivetrain Warranty
- BDS’s exclusive No Fine Print Warranty
Kit Features
- Heavy duty replacement radius arms provide improved strength, clearance and caster correction.
- Progressive rate coil springs for a great ride on any terrain
- Front HD track bar relocation bracket to correctly position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
- Retains full functionality of air bag system (if equipped)
- Allows clearance for up to 37" tires
Kit Info
RAM 3500 w/ OE Rear Air Bags:
BDS1792 (H/FS) – 4" Radius Arm Kits - Diesel
BDS1793 (H/FS) – 4" Radius Arm Kits - Gas
RAM 3500 w/o OE Rear Air Bags:
BDS1794 (H/FS) – 4" Radius Arm Kits - Diesel
BDS1795 (H/FS) – 4" Radius Arm Kits - Gas
"H" Kits - use BDS NX2 Gas Shocks
"FS" Kits - use FOX 2.0 Performance Series IFP Shocks
Accessories
BDS85427 - NX2 Single Steering Stabilizer
FOX98224018 - FOX Single Steering Stabilizer
BDS85422(x2) + BDS55370(x1) - Dual NX2 Steering Stabilizer kit
FOX98224016(x2) + BDS55370(x1) - Dual FOX Steering Stabilizer kit
BDS122616 - 6-Bolt T-Case Indexing Ring kit
BDS122414 - Front Sway Bar Disconnects
BDS122324 - Front Adjustable Track Bar
BDS122609 - Rear Adjustable Track Bar
BDS102003 - Front SS Brake Lines
BDS122406 - Carrier Bearing Drop
*** Prior to ordering, verify listings with BDS sales team to ensure listings are up to date

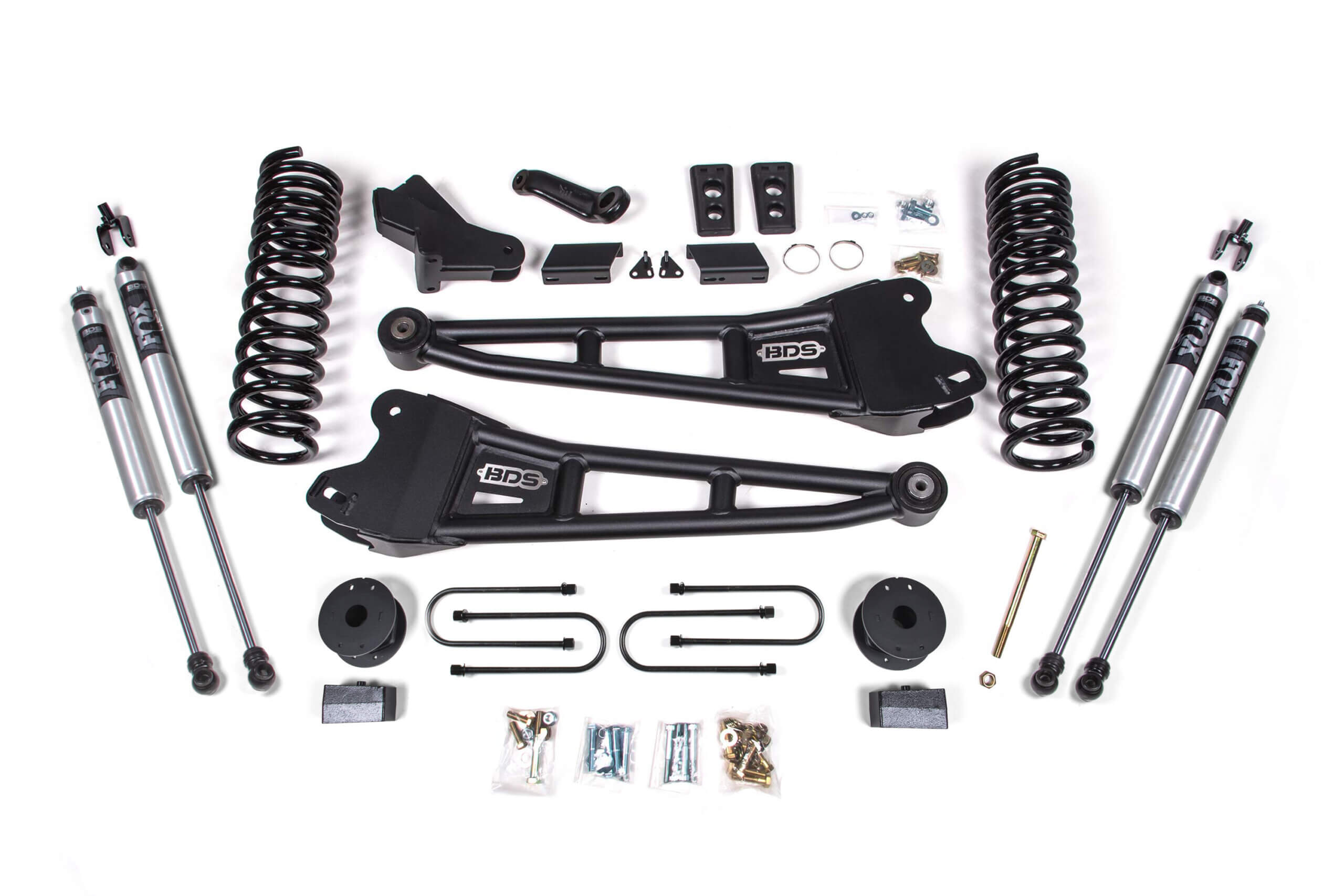

1792FS / 1793FS

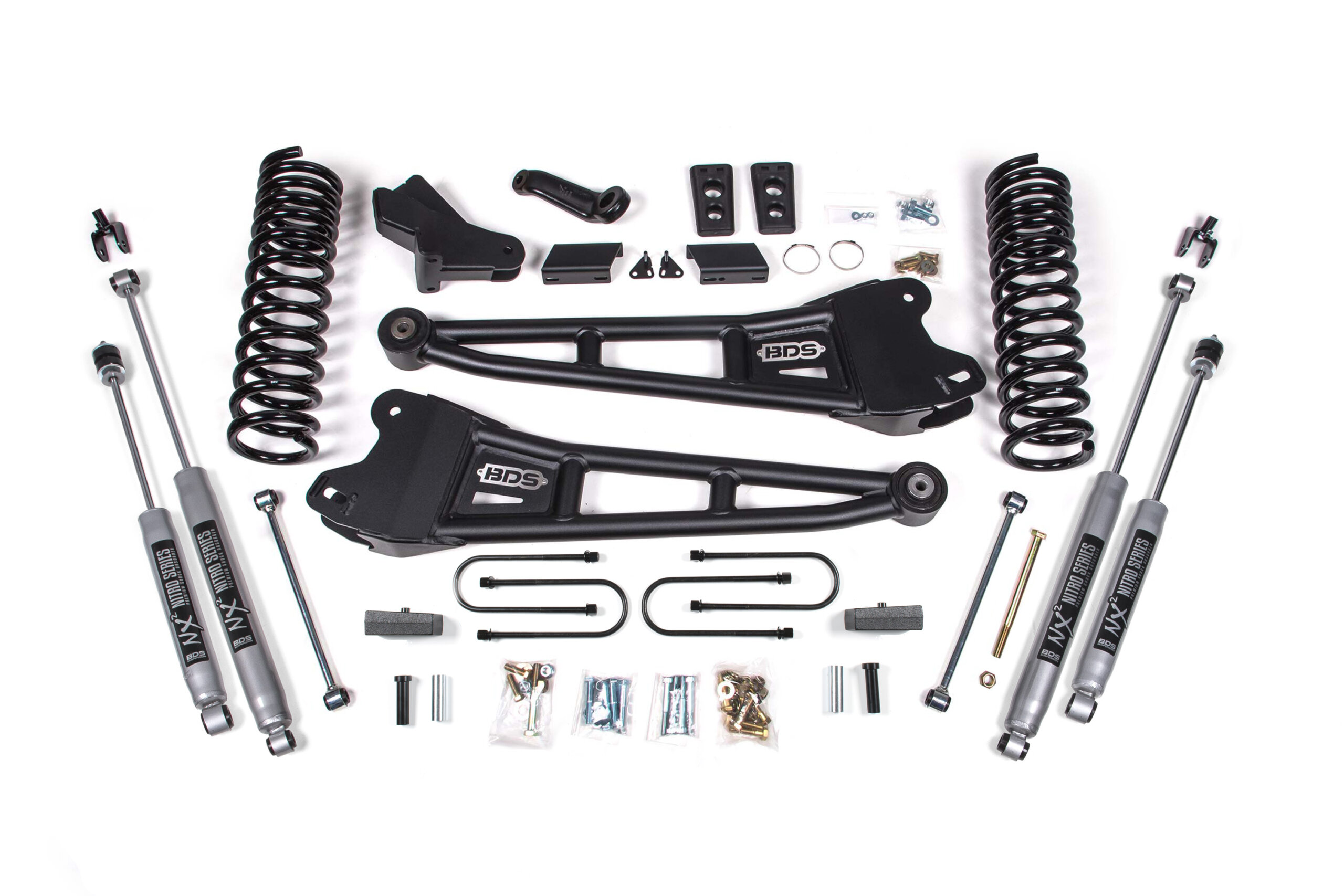

1794H / 1795H

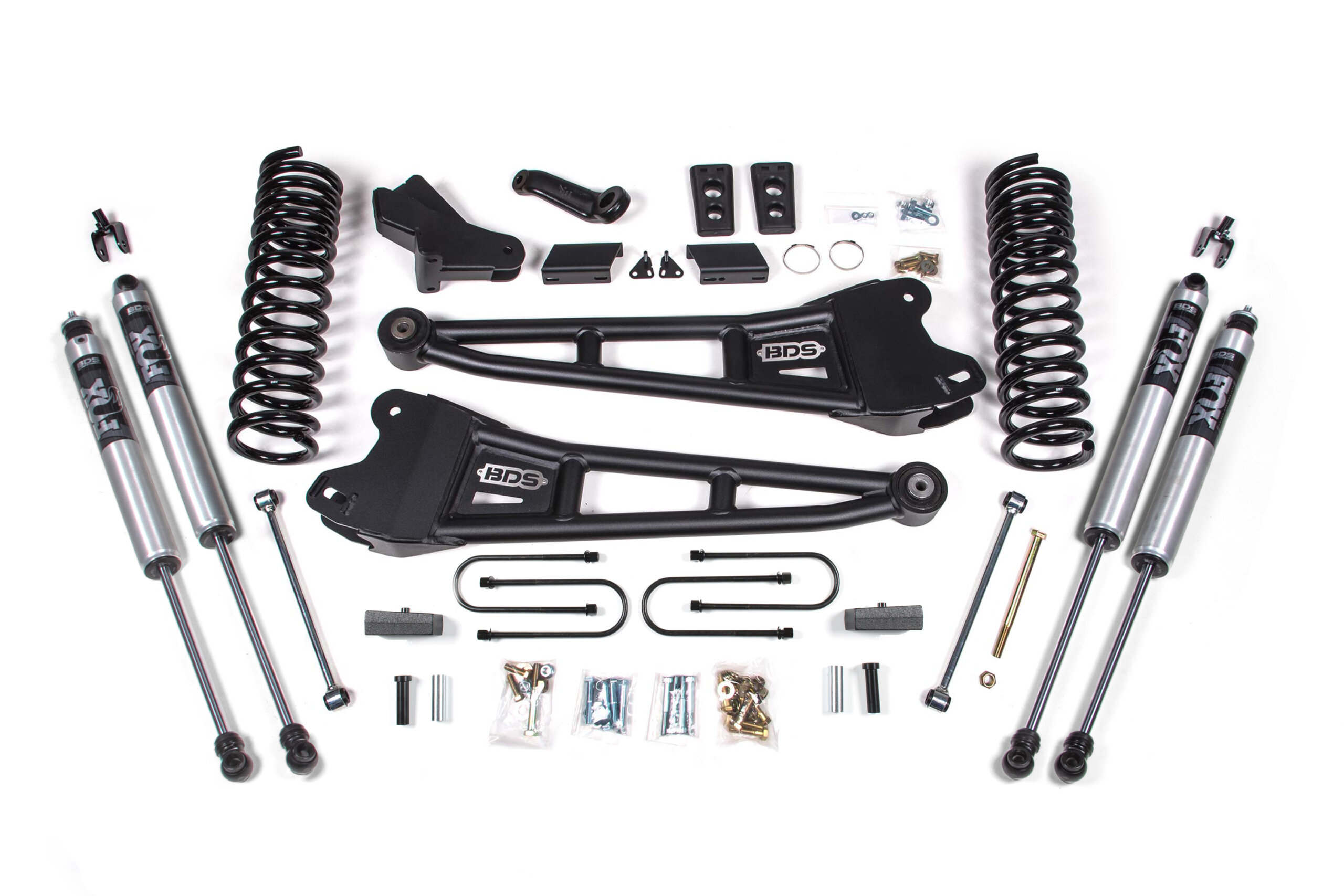

1794FS / 1795FS
4" Kit on 37s
Coldwater, MI: Up front these systems use a pair of progressive rate 4" coil springs (diesel or gas specific) to provide the extra height and smooth controlled performance in the harshest of terrains. A forged drop pitman arm is supplied to correct steering angles along with a HD bar drop bracket to re-center the front axle. A pair of sway bar drop brackets reposition the OE sway bar along with extended polyurethane bump stops to correctly limit up travel and brake line brackets to allow full droop. To correct the front suspension geometry at the new height a pair of heavy duty replacement radius arms are supplied to bolt in place of the factory arms. These new radius arms are massive upgrade to the factory stamped units, using tubular construction and a lower cam adjustment to dial in front end caster. Also supplied are your choice of BDS NX2 gas shocks or FOX 2.0 performance series IFP gas shocks for improved ride and performance.
In the rear, BDS offers options for models with and without the OE rear air bags. 3" lift blocks are added to lift/level the stance comes secured with replacement high strength u-bolts. On models with the rear air bags an axle-mounted steel spacer is installed to allow full funtionality of the system. Rounding out the rear are your choice of gas shocks to match the front.
