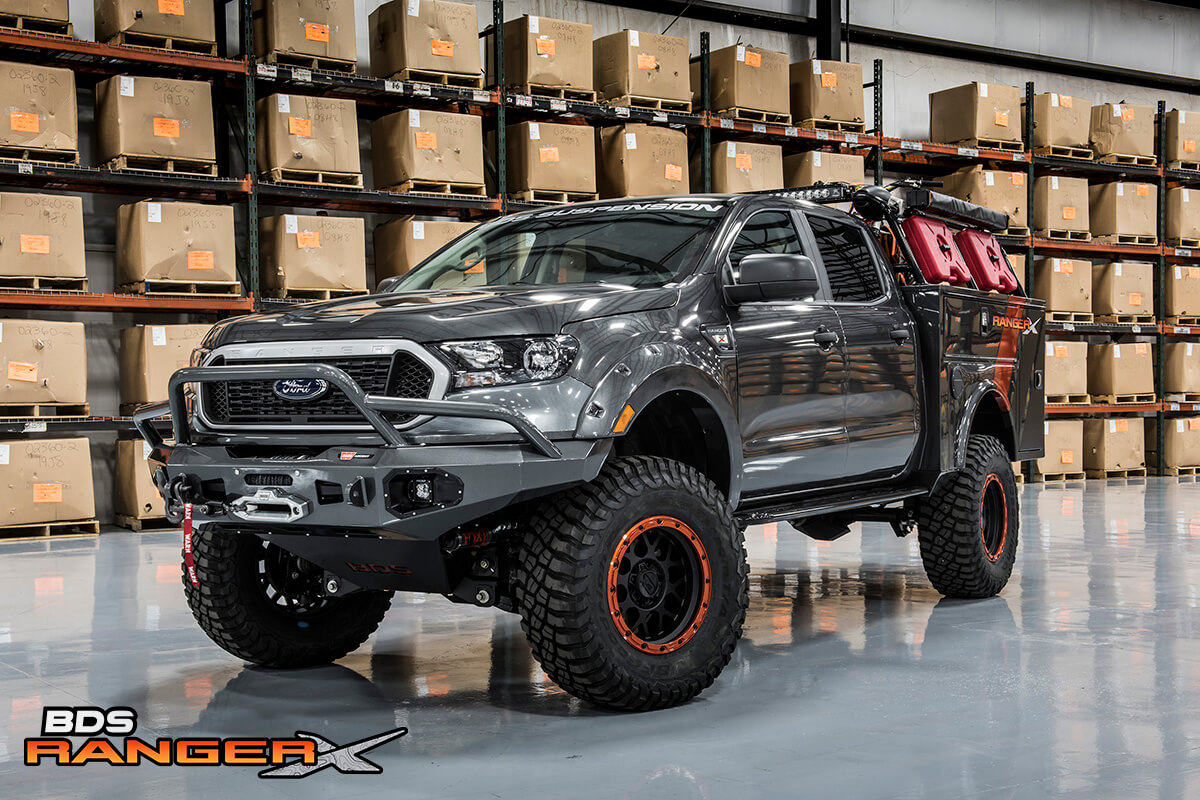

Built up and ready for an adventure. With just 5 short weeks, the BDS build team took one of the first 2019 Ford Rangers in existence and overhauled it into a show stopper. Built for capability out on the trail, great looks with a strong stance and plenty of utility with room to haul gear BDS’s Project Ranger X elevates the Ranger to the next level. Starting with a pre-production 2019 Ranger right off the assembly line, this truck was torn down, the frame was extended, service bed and custom rack fitted, a BDS suspension lift installed and larger tires and accessories were added. We documented the build in a 5-part build series that followed the team as they transformed this 2019 Ford Ranger from stock to fully custom, click the links below to check out how it all came together.

Build Intro

Build Update #1

Build Update #2

Build Update #3

Build Update #4

Project Ranger X Built Sheet:

2019 Ford Ranger XLT 4×4
2.3L EcoBoost Engine
10-Speed Automatic Transmission

Chassis/Suspension:
Custom Long Bed Conversion (136” wheelbase)
BDS 6” Suspension Lift System (prototype)
BDS Upper Control Arms (prototype)
BDS GlideRide Rear Leaf Springs (modified GM1500 springs)

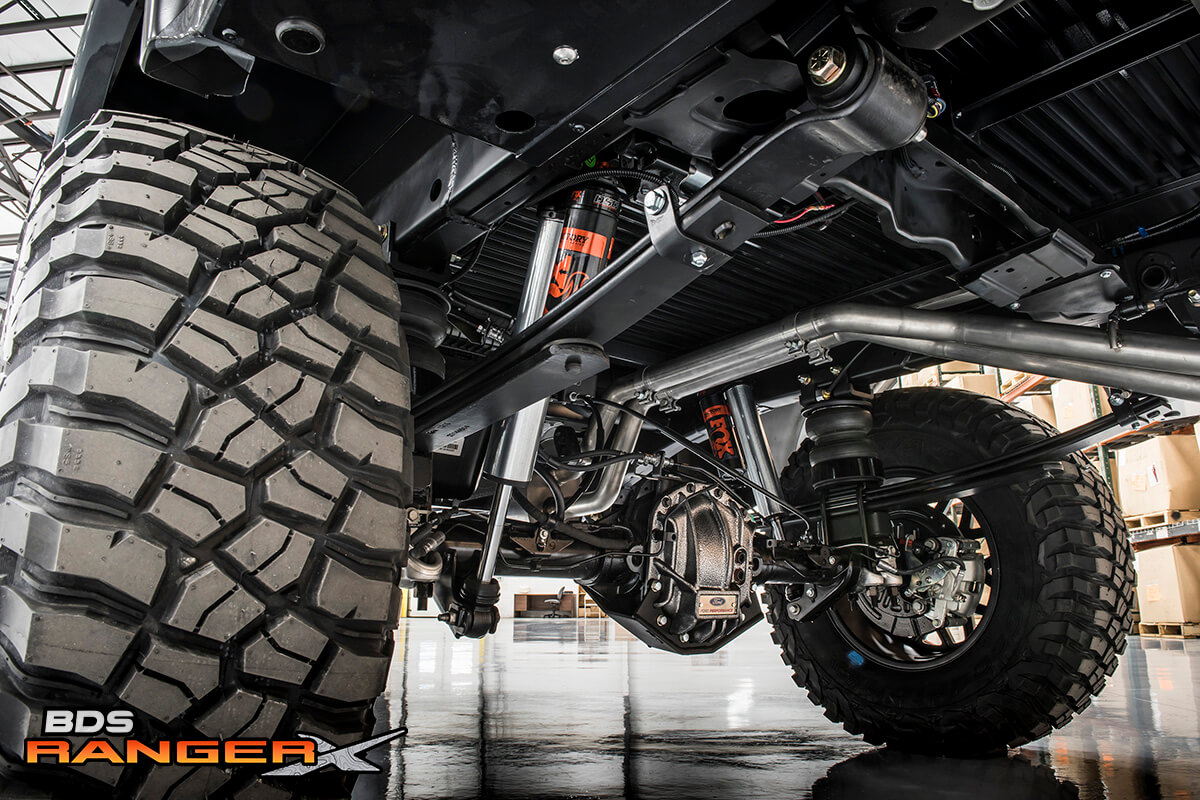

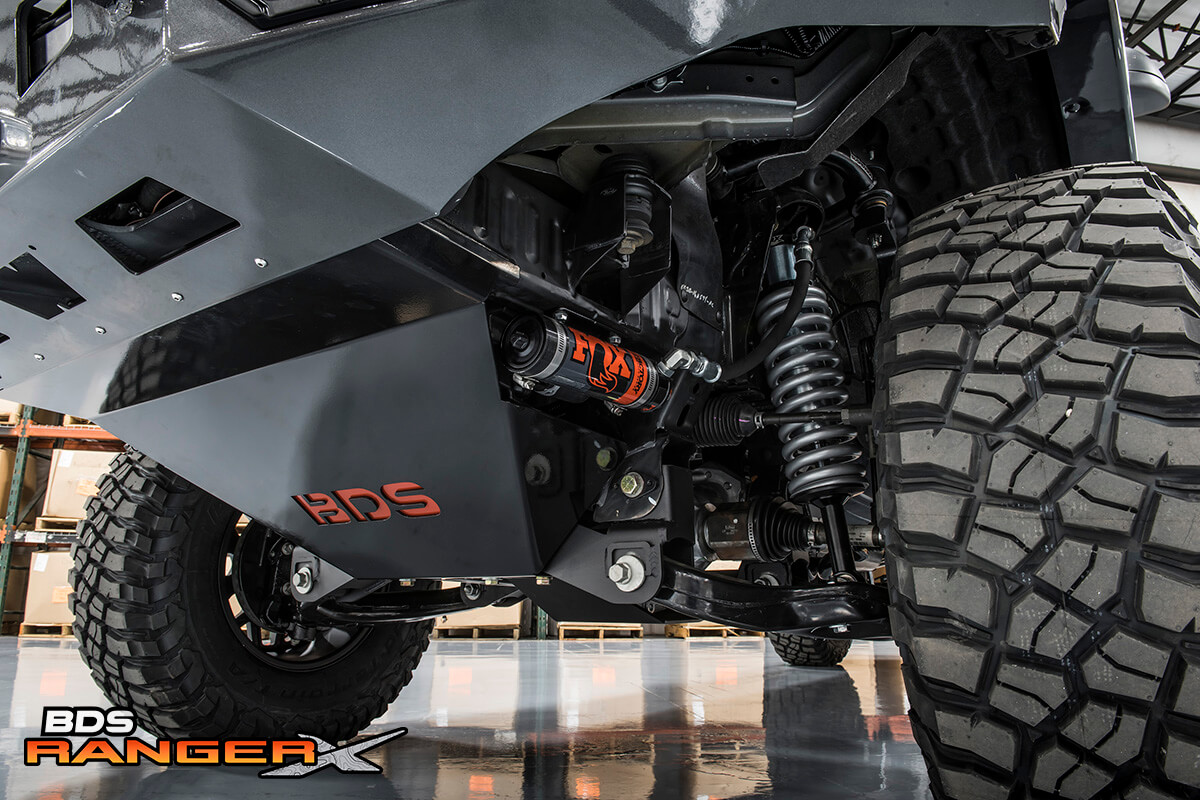

FOX 2.5 Factory Series front DSC Coilovers
FOX 2.5 Piggyback DSC Rear Shocks
AirLift Rear AirBag System w/ Lower Cradle Mount
Rear (Extended) Spicer Driveshaft

Wheels & Tires:
35×12.50×17 BFGoodrich Mud Terrain KM3 Tires
17×9 KMC XD Series Grenade OR Wheels

Powertrain Mods:
Ford Performance/Borla Catback Exhaust System

Vehicle Mods:
OE Magnetic (charcoal) Paint w/ Black & Fiery Orange Stripes

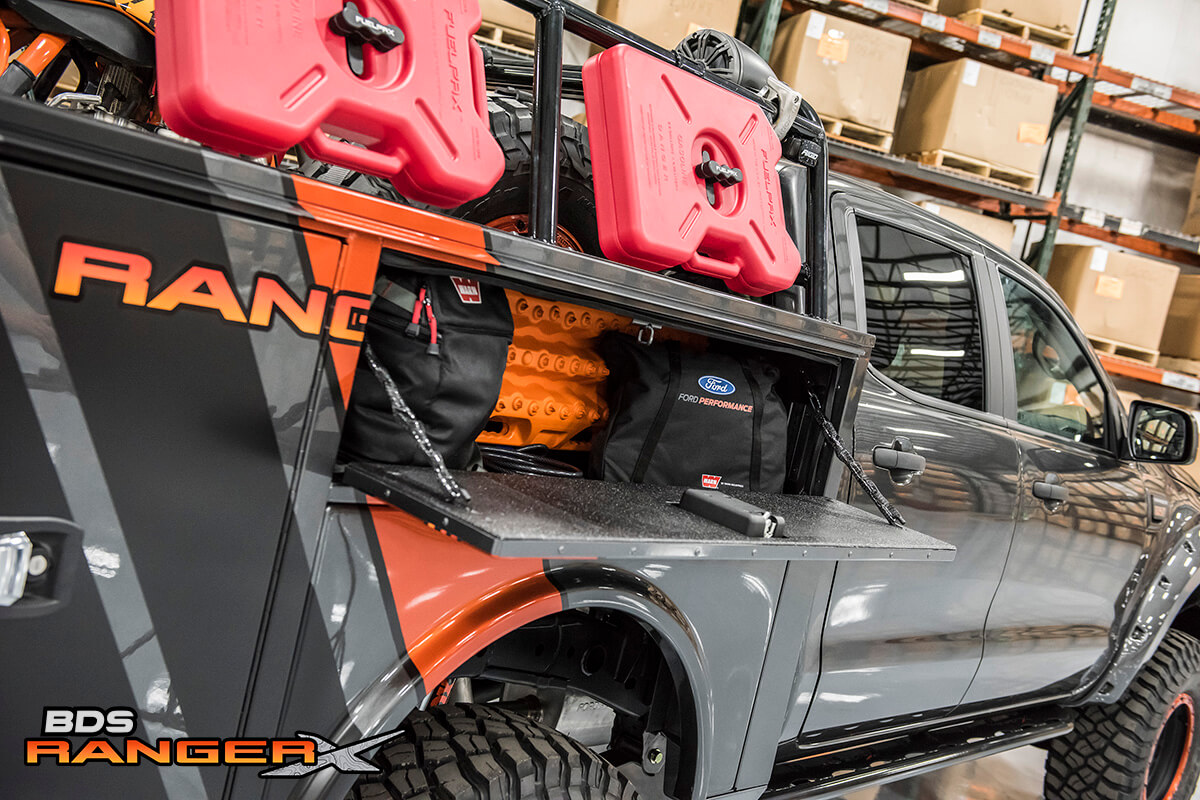

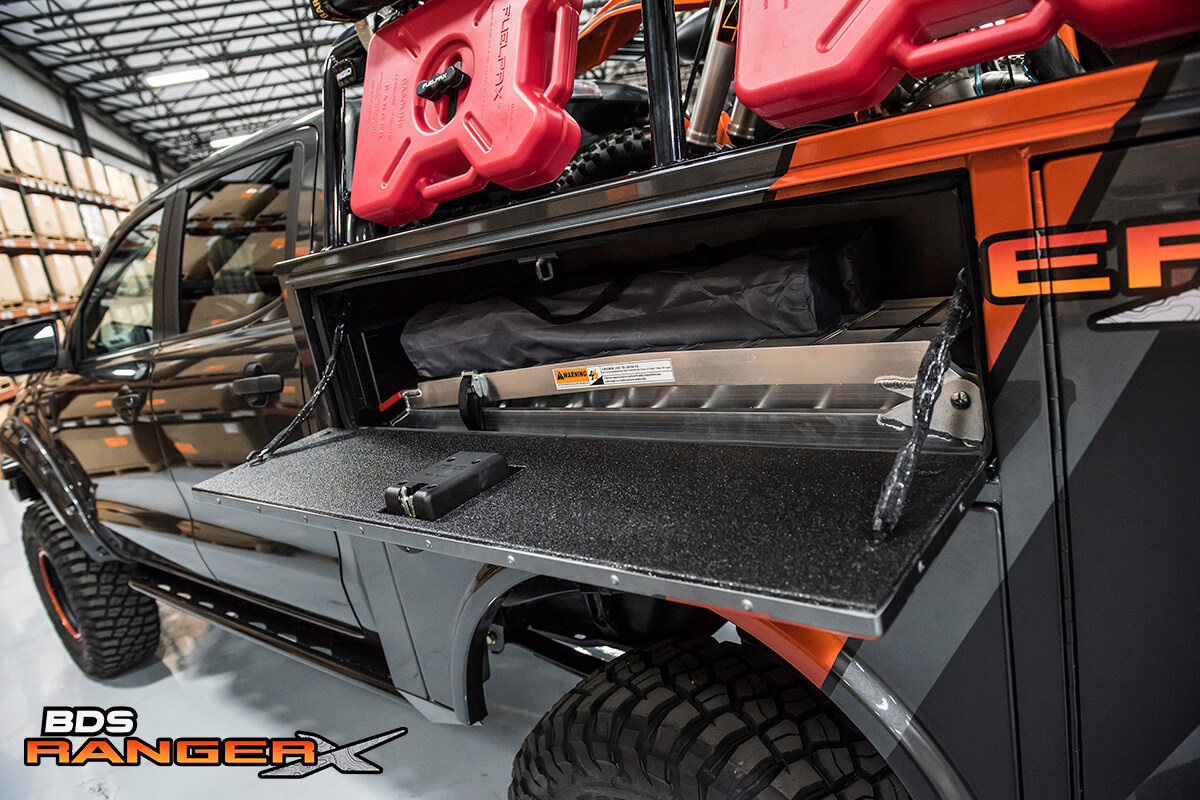

Knapheide Utility Box w/ Custom Built Rack System

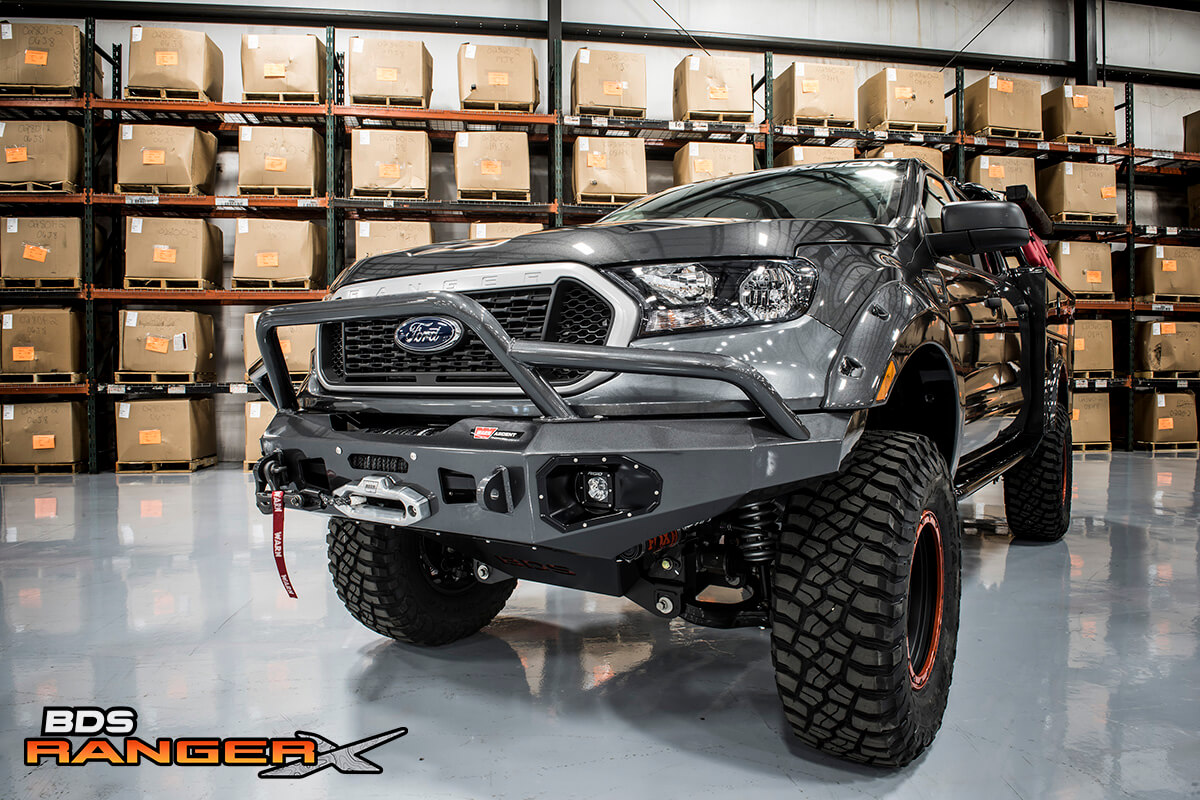

Warn Ascent Front Bumper
Warn Zeon 10-S Winch with Factor 55 FlatLink

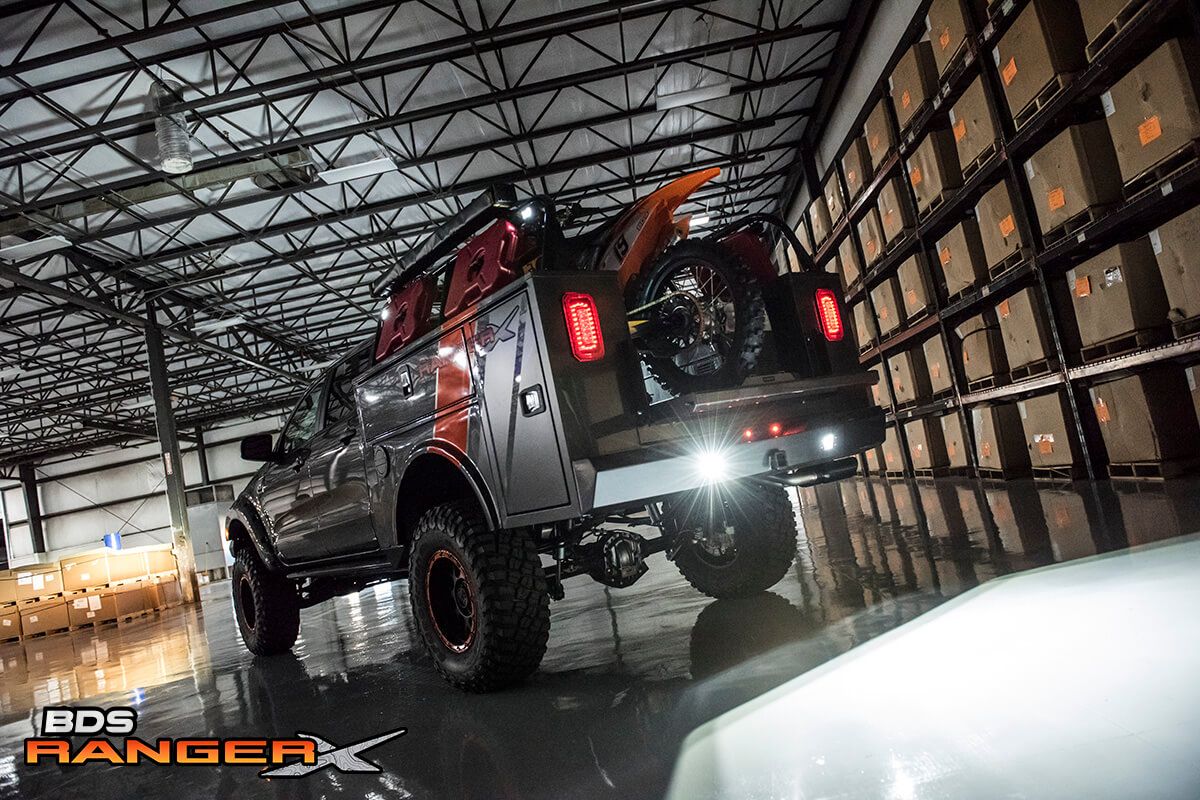

Custom Rock Sliders and Rear Bumper
Rigid LED Lighting (Radiance, SR-M, and Scene Series)
Bushwacker Front Pocketstyle Fender Flares

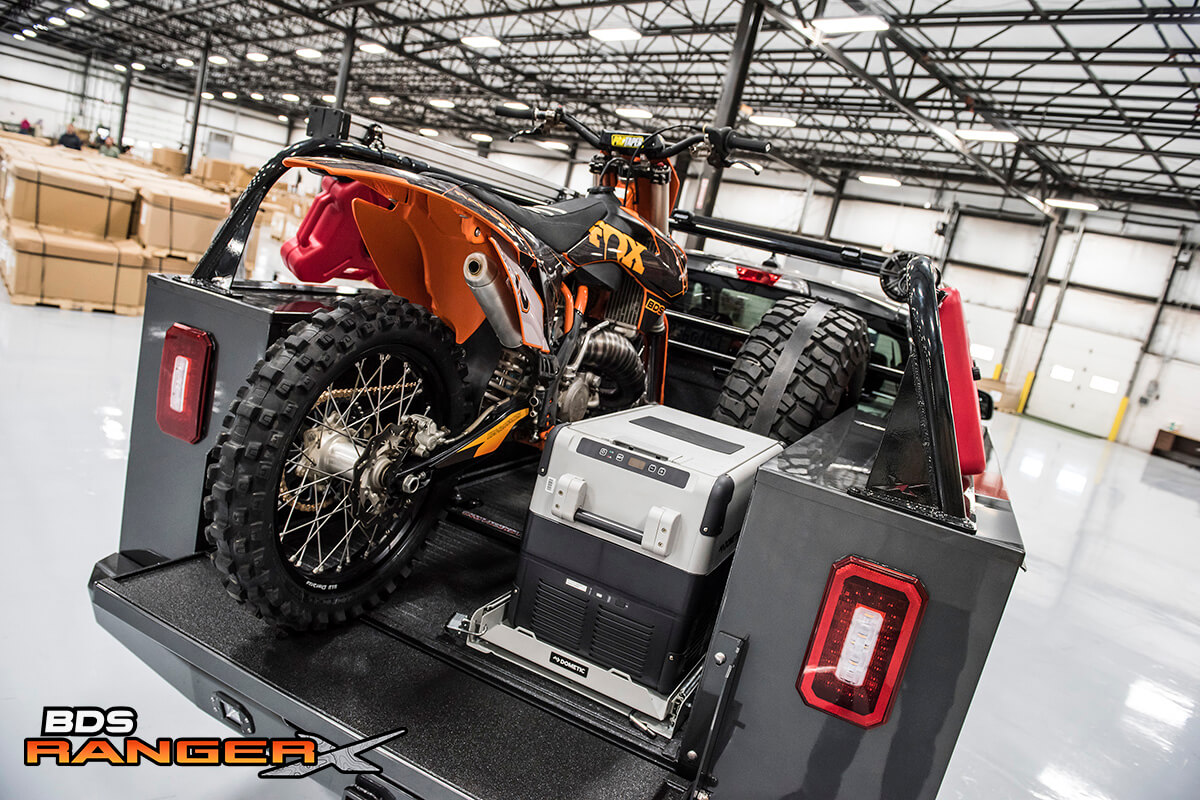

Dometic CFX 40W Electric Cooler on Slide
MaxTrax MKII Recovery Devices

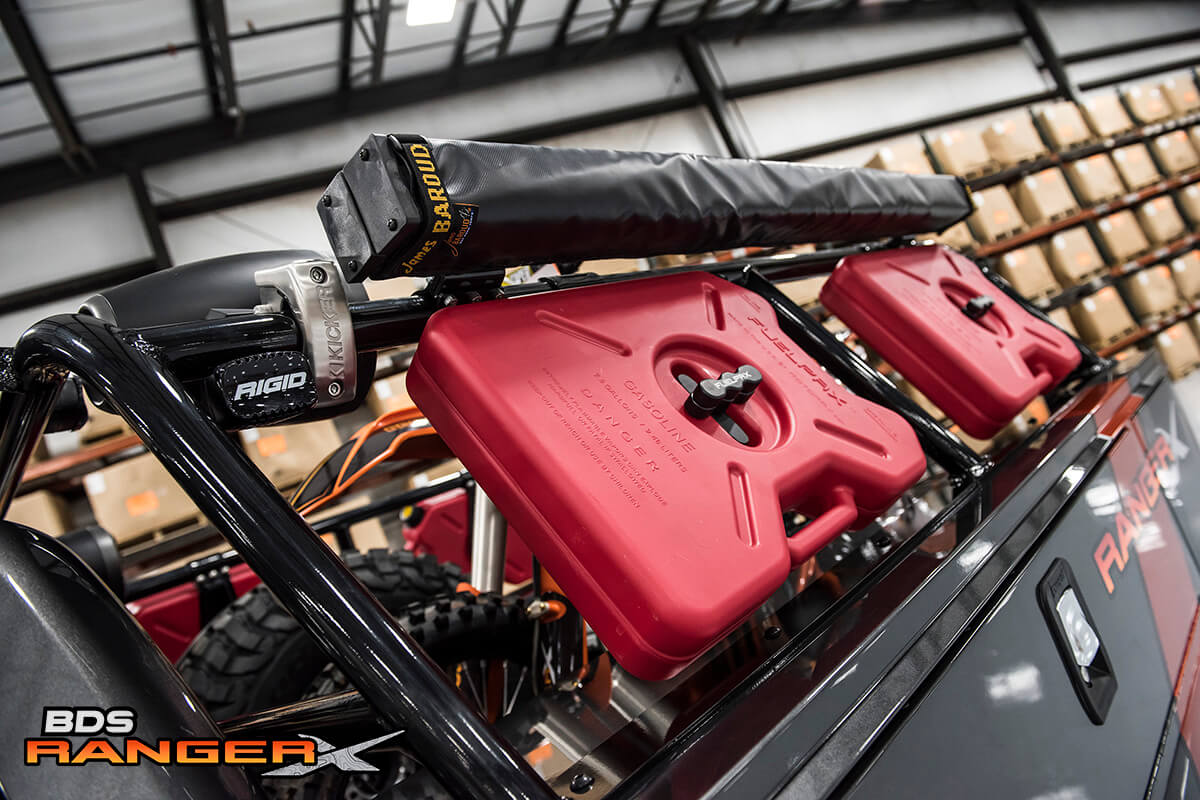

Rotopax 2.5 Gallon FuelpaX Containers
Amp Research Fuel Door
Warn Epic Recovery Kit
James Baroud USA Retractable Awning

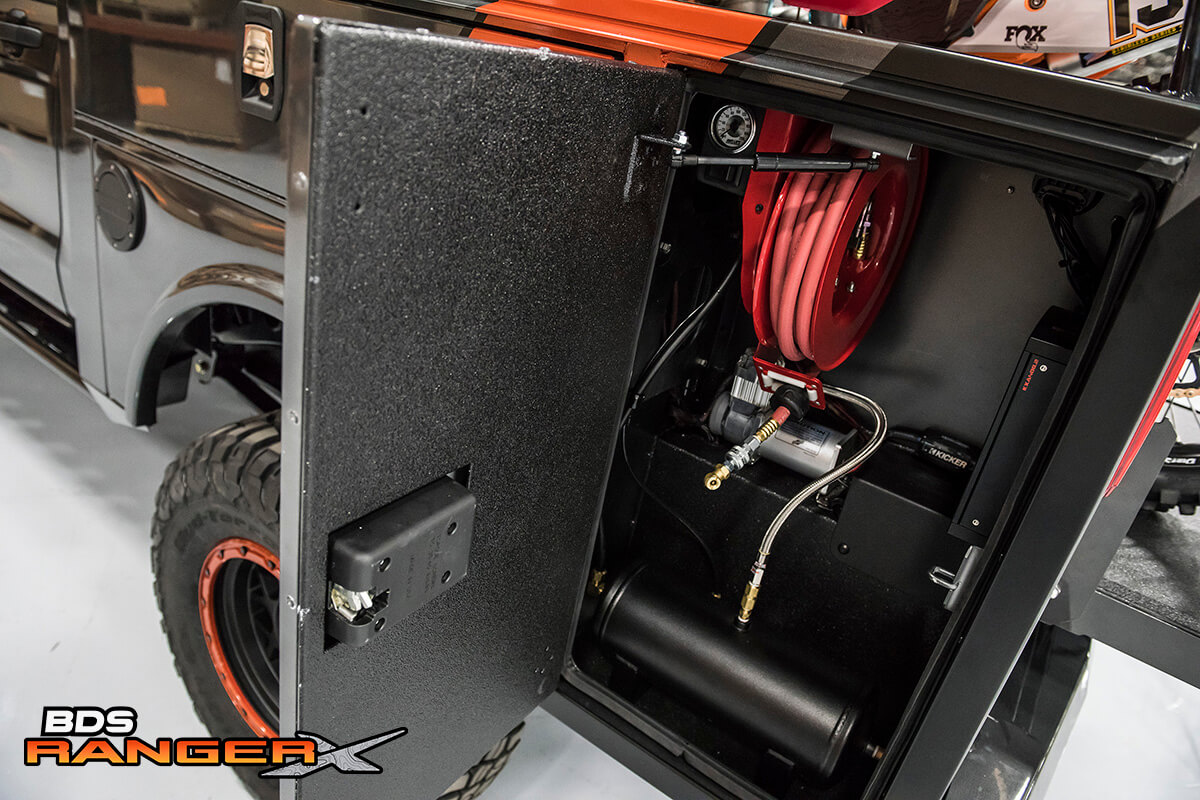

Air Lift Quick Shot Air Compressor and 2-Gallon Tank
Ford Performance Rear Diff Cover and Diff Skid
sPod 8-switch Touchcreen Relay System

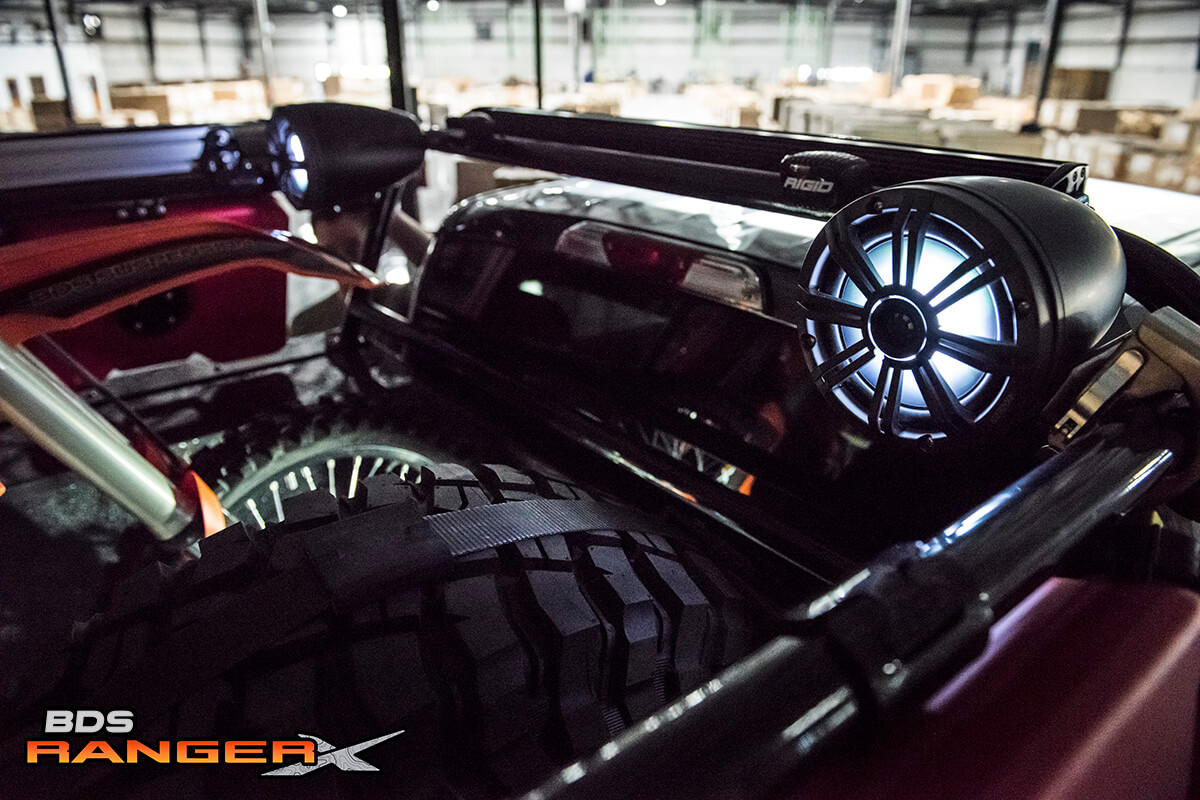

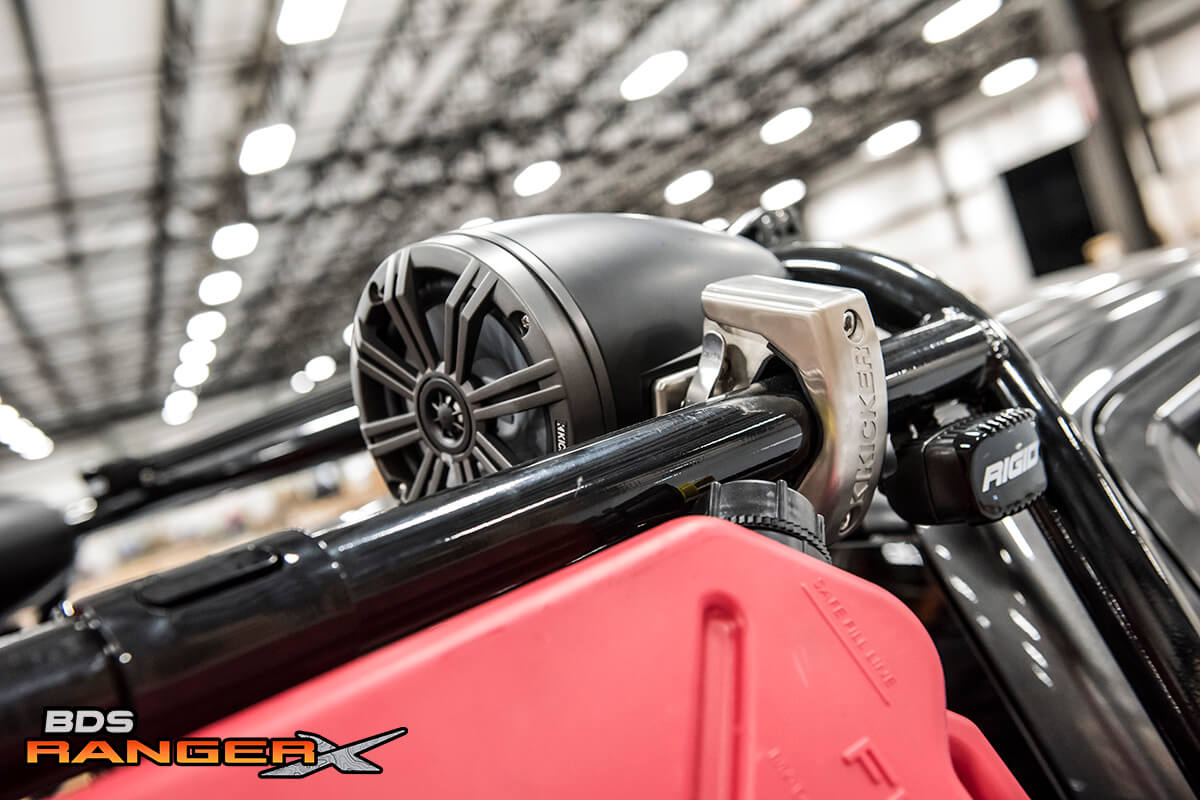

Kicker Audio System (KMC10 Head Unit/KMTC Tower Speakers)
Optima YellowTop H6 Battery



2018 SEMA Show:

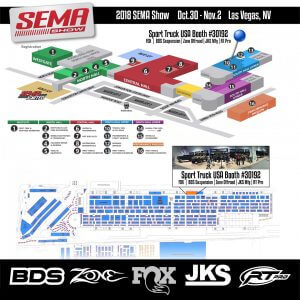

See it this week at the 2018 SEMA Show in Las Vegas in the Ford Booth in Central Hall #22200. Along with Project Ranger X, Sport Truck USA (home to BDS Suspension, JKS Mfg, RT Pro and Zone Offroad) will be set up over in the offroad section in South Hall, Upper Level in booth #30192. We’ll have severl new vehicles and new product on display to check out. Be sure to stop by to grab a beer with the BDS crew (served cold all week long) and see what’s new. Find out more about our SEMA plans by clicking the link, BDS’s 2018 SEMA Show Preview. We look forward to seeing you out in Vegas!
