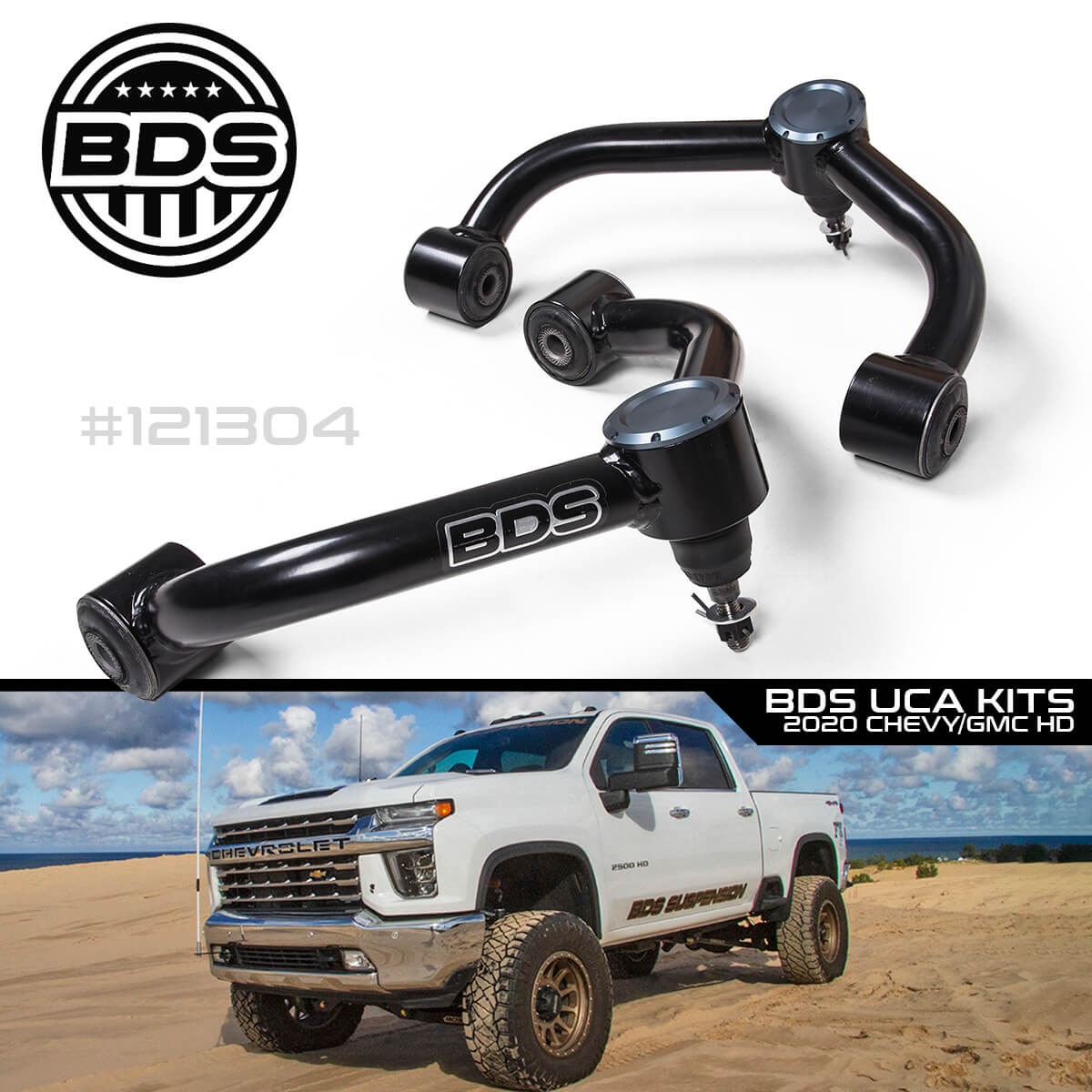

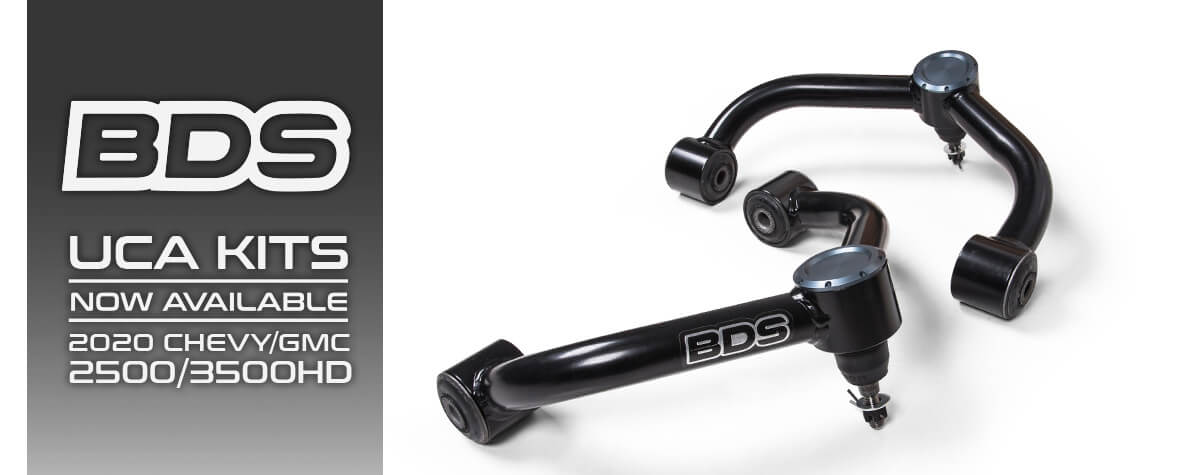

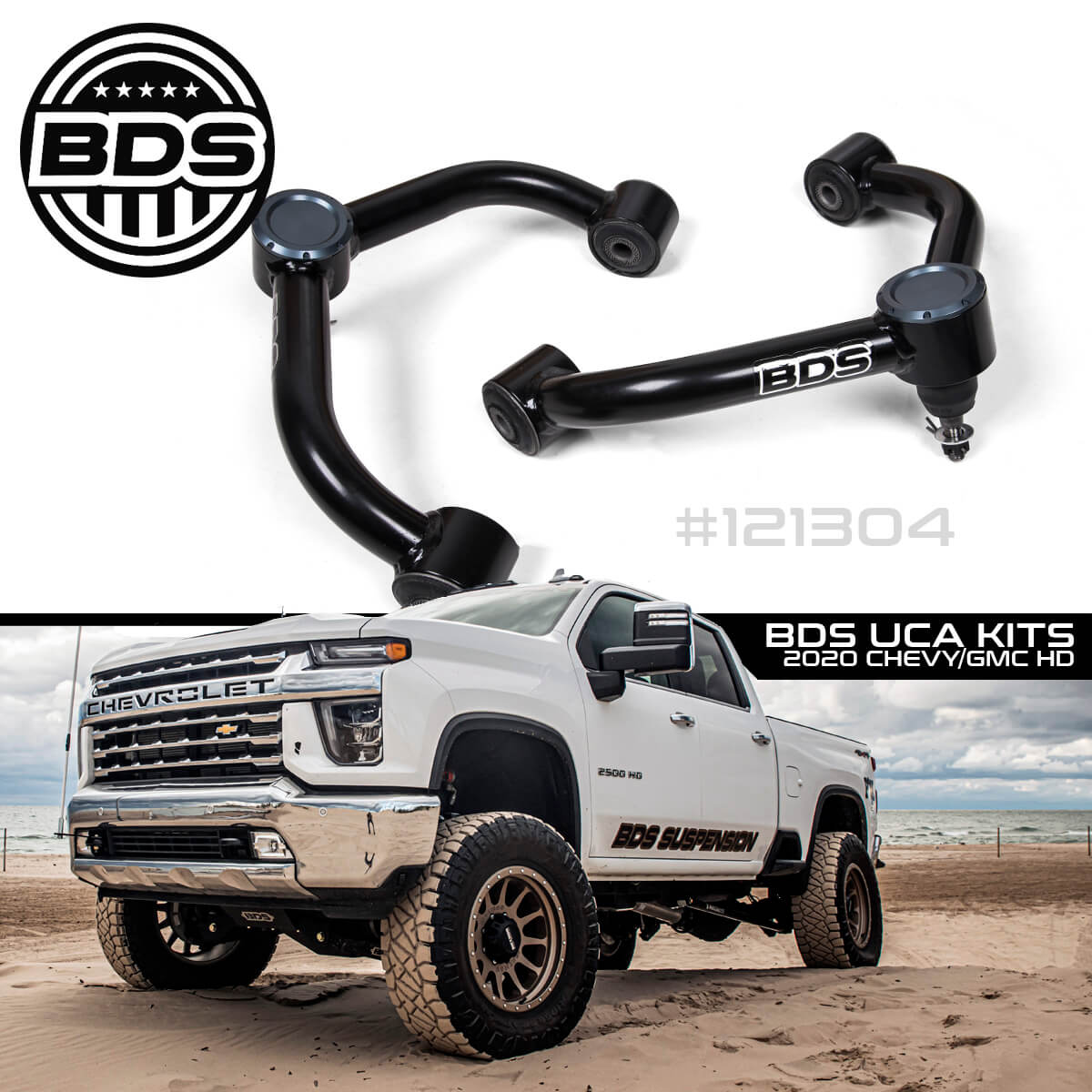

Upgrade your 2020 Chevy/GMC HDs factory stamped steel arms to these performance upper control arms from BDS Suspension. Specially designed for leveled and lifted applications, these arms are built from high strength 1.5" OD x .120-wall steel tubing and feature an indexed ball joint cup to correct the ball joint positioning. These UCAs can be used with BDS 6.5" lift kits and other lift and leveling kits on the market. The frame mounting ends feature durometer-specific rubber bushings. At the other end premium quality ball joints for smooth, quiet operation, and superior durability to arms that feature uniballs, poly bushings or heims. These upper control arms come finished in a durable semi-gloss black powder coat and include a billet aluminum machined ball joint dust cap. They integrate a mounting tab for the factory brake lines so there's no need to zip tie the lines as is the case with other kits on the market. The control arms come fully assembled for easy install right out of the box compatible with most leveling and lift kits on the market to increase wheel travel. Also included with the UCAs are a pair of optional weld-on steering stops plates (if necessary) and a wheel spacer to allow installation of the factory wheel in the event the OE wheel needs to be installed. Take your new Chevy/GMC HD to the next level with these performance upper control arms from BDS Suspension.

Product Description

BDS Performance Upper Control Arms for 2020 Chevy/GMC HD

Product Info

BDS121304 - Performance Upper Control Arm (UCA) Kit

Vehicle Fitment

2020 Chevrolet Silverado 2500 2WD/4WD Gas/Diesel
2020 Chevrolet Silverado 3500 2WD/4WD Gas/Diesel SRW/DRW
2020 GMC Sierra 2500 2WD/4WD Gas/Diesel
2020 GMC Sierra 3500 2WD/4WD Gas/Diesel SRW/DRW
2020 GMC Denali HD 2WD/4WD Gas/Diesel SRW/DRW

Important Notes

  • Stock wheels with stock tires can be installed, however clearance are very tight to the upper control arms.
  • Not recommended for 5" lift kits
  • Attn State of California consumers: Prop 65 Warning

Features/Benefits

  • High strength 1.5" tubular construction improves strength and durability over stock arms.
  • Indexed ball joint cup allows for increased travel on leveled/lifted applications.
  • Factory style rubber bushings for long lasting, maintenance-free operation.
  • High quality greasable ball joints and a protective cap to keep out debris.
  • Fully assembled and ready to install right out of the box.

Install Time/Difficulty

1-2 Hours / 2 of 5

Factory Protection Plus
  • 5-year, 100K-mile Drivetrain Warranty
  • BDS’s exclusive No Fine Print Warranty

***Check the BDS website to verify details prior to ordering to ensure information is up-to-date with current manufacturer listings***

Media Gallery

© BDS Suspension, 491 W. Garfield Ave. Coldwater, MI 49036
(517) 279-2135 | bds-suspension.com | sales-bds@ridefox.com

6 Comments on “Upper Control Arm Kits | 2020 Chevy/GMC 2500/3500 HD Trucks | NPR #393
  • Ryan says:

    Good evening,
    Wondwring if these upper control arms would fit on my 21 chevy 2500hd?

    Reply
    • Carter @ BDS Suspension says:

      Hey Ryan, We have a 2021 HD in the shop right now for test fit to confirm all kits/accessories carry over from the 2020 models. While we don’t expect any issues, our #121304 UCAs for the 2020 HDs are on the list to check before officially listing on our website for 21 models

      Reply
  • John Thunert says:

    When do you guys think you will have the coil over setup out for the 2020-2021 GMC 2500/3500 trucks, and will these arms work with that kit? I already have your 6.5 setup on my truck now want to upgrade my upper arms until the coil over parts are available.

    Reply
    • Carter @ BDS Suspension says:

      Hey John,
      We’ve had some delays with rolling out the coilover conversions for the late model HDs, but they are in the works to to release in the coming months. These UCAs will be compatible with the coilover conversion to upgrade your current setup.

      Reply
  • steve gnilica says:

    hello,

    Im curious why these are not recommended for 5″ lift kits but are ok for 6.5″ kits?
    Also, I bought a truck with kryptonite upper control arms already installed. am I going to have to change them out or will your coilover kit work with them?

    Reply
    • Carter @ BDS Suspension says:

      Hey Steve, ultimately the reason they are not recommended on stock height or 5″ lift kits has to do with the indexing of the ball joint cup on these arms. The cup is indexed to correct ball joints back to the neutral position based when the arms operate at an angle similar to a leveling kit. If used at stock height there is the potential to overextend the ball joints at full compression. Our 5″ and 6.5″ kits used the same base components which drops the crossmembers and other suspension/steering/driveline geometry roughly 5″ causing the suspension geometry (and UCA operating angles) to be similar to stock whereas the 6.5″ kit has operating similar to a leveling kit.

      I don’t have experience with the Kryponite UCAs to say whether or not you’d run into a similar issue at 5″ of lift, but can recommend cycling the suspension during install prior inserting the torsion bars to check upper ball joint angle during full compression. That will allow you to see if any mods will be necessary based on the UCAs. For more on the topic feel free to reach out to our tech support team at
